BB7100 Boring Machine
Packing big boring capability into a compact, modular
machine, maximizing efficiency and minimizing downtime.

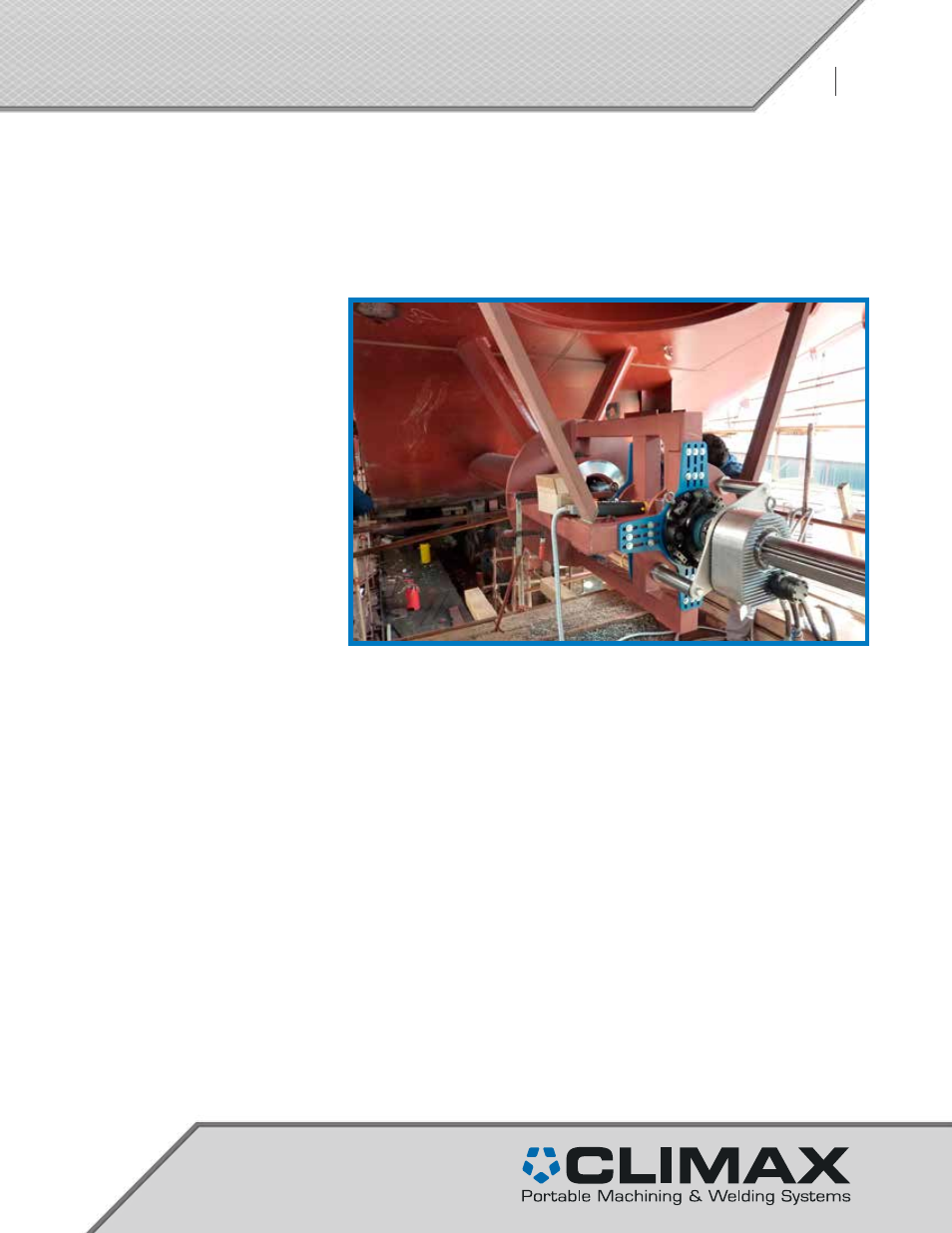

Powerful Yet Compact
• Take the power of a stationary machine to the
job site to solve tough machining challenges in
record time.
• Using 11.3 in3 (185 cm3) Hydraulic motor,
produces
2280
ft-lbs (
3090 N•m
) of torque at the
bar, at 29 rpm.
• Compact, modular components, many which
can be lifted by hand, allow fast, easy setup,
maximizing efficiencies, and minimizing
downtime.
Versatile and Flexible
• Huge machining range bores from 10.25 - 57.5
inches (260.4 - 1460.5 mm) in diameter, and
faces from 9.6 - 62.5 inches (243.8 - 1587.5
mm).
• ID and End mount bearings feature spherical
taper-lock roller bearings.
• End mount can be fine adjusted by +/- 0.625
inches (15.9 mm) to center the bar.
• Optional dual action boring/facing arms
increase facing range, and allow for both
boring and facing without switching equipment.
Full-length square ways on boring/facing arms
allow for quick positioning anywhere along
the arm. Attaches to the net fit tool carrier by
compression-clamping, to provide maximum
tool stability.
• Machine is highly adjustable. The tool carrier,
half nut, alignment of boring/facing arm,
and tool carriage can each be adjusted to
maximize machining performance.
• With leading & trailing boring head configuration,
2 boring heads can be used simultaneously.
• For even greater facing range and longer
continuous stroke, the new boring/facing arms
are available. Setup is quick & easy, featuring
industry standard quick-change tooling for
both boring and facing operations.
• Highly versatile tool holder block accepts
industry standard tooling with a nominal 1 inch
(25.4 mm) square shank.
• Tool post on the boring/facing arm can be
rotated to provide maximum flexibility in
machining setup (including some cantilevered
configurations).
• Net fit tool carrier can be clamped to bar for
facing operations. For boring operations,
carrier can be adjusted to remove clearance
between carrier and the bar. This flexibility
also ensures maximum rigidity for either
operation
• Net fit tool carrier designed with a split frame
to simplify installation on the boring bar. It can
be configured to use either the boring head set
for boring or facing, or the new boring/facing
arm assembly.
High Quality Design
• Features a uniquely-designed modular tool
carrier which provides a new level of strength
and rigidity by channeling machining forces
directly to the boring bar through strategically-
located adjustable guide shoes.
• Chromed bars, straight to within 0.001 inch
per foot (0.0254 per 304.8 mm)
• Gun-drilled bars with optical targets available.
• Adjustable, removable half nut increases net
fit tool carrier flexibility. Easy removal of tool
carrier allows for machining of multiple bores.
• Backlash adjustment nut allows in-the-field
adjustment to eliminate backlash in the tool
carrier, and extend the life of the machine.
