PL2000 PortabLe Lathe

Compact, rugged lathe for on-site re-turning

of small shafts or journals

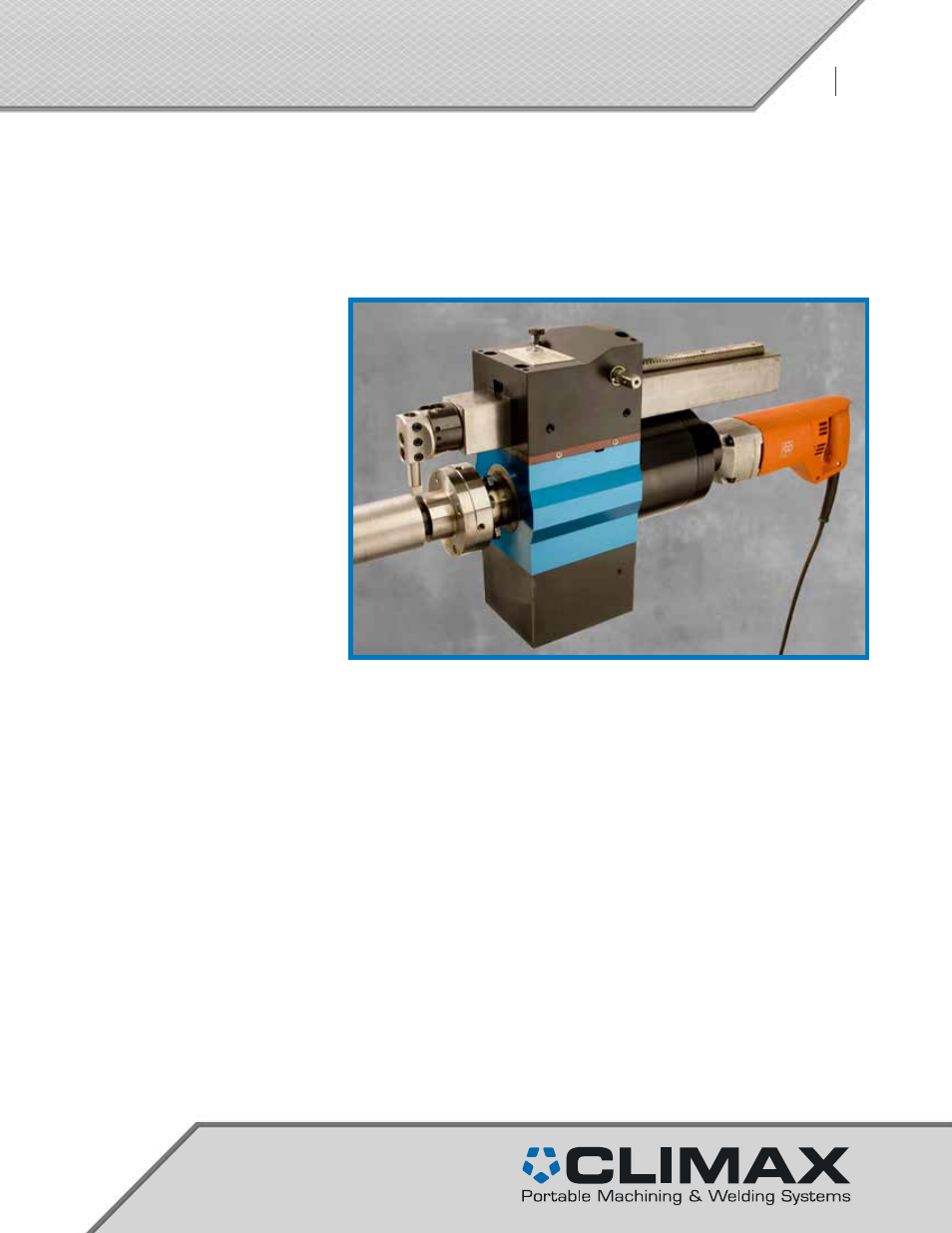

A compact, rugged portable lathe for on-site

re-turning of small shafts or journals, the

PL2000 Portable Lathe mounts on the end of

the shaft.

Compact, powerful, precise.

• The 0.6 Hp (0.45 kW) electric motor and

5.5:1 gear reduction provides plenty of

torque. A 1.22 Hp (0.91 kW) pneumatic

motor is also available.

• Tool reach up to 12.5 inches (317.5 mm)

from end of shaft.

• Criterion style tool head provides

accurate depth adjustments in 0.001 inch

(0.0254 mm) increments.

• Turns shafts from 1.5 - 9.0 inches (38.1 -

228.6 mm) in diameter. This compact

machine is able to work within a 14 inch

(355.6 mm) diameter swing clearance at

the end of the shaft.

• Automatic axial feed is infinitely variable

from 0 - 0.35 inches/rev. (0 - 8.89 mm/

rev.)

• Adjustable tool head and round tool bits

allow quick tool positioning for accurate

turning. .

Quick and easy setup

• Mounts on the end of the shaft. Simply

remove the gear or bearing to expose the

end of the shaft.

• The PL2000 can be set up by an

experienced operator in less than an

hour. Drill and tap four mounting holes on

the end of the shaft to attach the

mounting flange. (Shafts less than 3.75

inches (95.3 mm) in diameter only need

one hole drilled and tapped for the single

bolt mounting adapter.) The body of the

machine is attached, centered, and

aligned in a few minutes.
