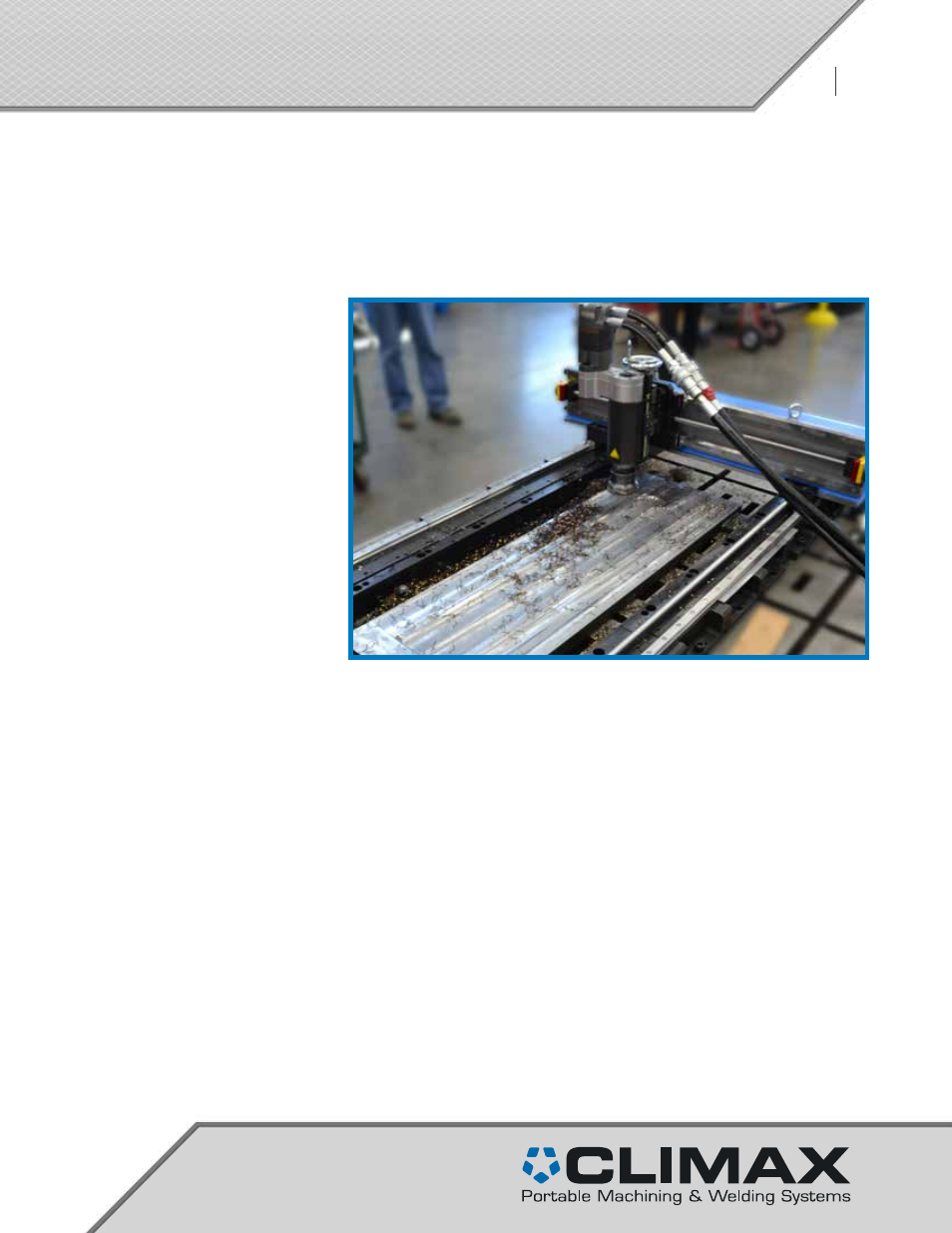

LM5200 MiLLing Machine

Linear and gantry Milling in one machine, for

X-axis travel of up to 84 inches (2133.6 mm) and

Y-axis travel of up to 34 inches (863.6 mm).

The Climax LM5200 Milling Machine

revolutionizes both the capabilities and

functionality of portable mills. Four main

features make this one of the best milling

machines on the market today:

1. Extremely rigid, modular bed design.

2. Innovative configuration options allow

setup for both Linear AND Gantry

Milling in one machine.

3. Powerful, precise machining.

4. Reduced Friction Rail Technology.

Rigid, Modular Design

• Unique modular bed design allows

shorter bed sections to be combined to fit

the length of the work area without losing

rigidity.

• Unique bed length section design

provides superior rigidity across the entire

bed length.

• Connection plates and fasteners

optimized to provide the ultimate in

rigidity, even when bed is extended by 2

or 3 times the original length.

Flexible Configuration & Operation

• The innovative new design of these

Climax Milling Machines allow them to be

configured for traditional linear milling, or

simply split the rails lengthwise to

configure for gantry milling!!

• Electric feeds can be mounted on the X,

Y or Z axis.

• Machining capabilities include milling,

drilling and even boring.

Powerful, Precise Machining

• Features heavy duty spindle design and

a choice of Hydraulic Power Units - a 10

Hp (7.5 kW) HPU allows use of cutter

heads of up to 6 inches (152.4 mm) in

diameter.

• Milling can be done in any axis, with a

milling head that can rotate 360° with an

optional swivel plate for optimal spindle

flexibility.

• Fast, aggressive milling in horizontal,

vertical, or inverted applications.

• Provides reliable, precise milling to meet

tight machining tolerances in both linear

and gantry mill configurations.

2013

LM52

10

Reduced Friction Rail Technology

• Reduced friction rail system allows

extremely smooth, continuous, and non

stick-slip travel.

• Precisely machined and aligned rails with

advanced lubrication make machining

applications smooth and efficient.

• Low friction system reduces maintenance

costs and extends product life.

• Precision ball screws in X, Y and Z- axis

assemblies allow precise location of

milling head.
