Pm series components – Climax PM3000 OBS Three Axis Mills User Manual
Page 7

10/98 7
NO.
DESCRIPTION
NO.
DESCRIPTION
NO.
DESCRIPTION
Other configurations including hydraulic milling
heads are available upon special request

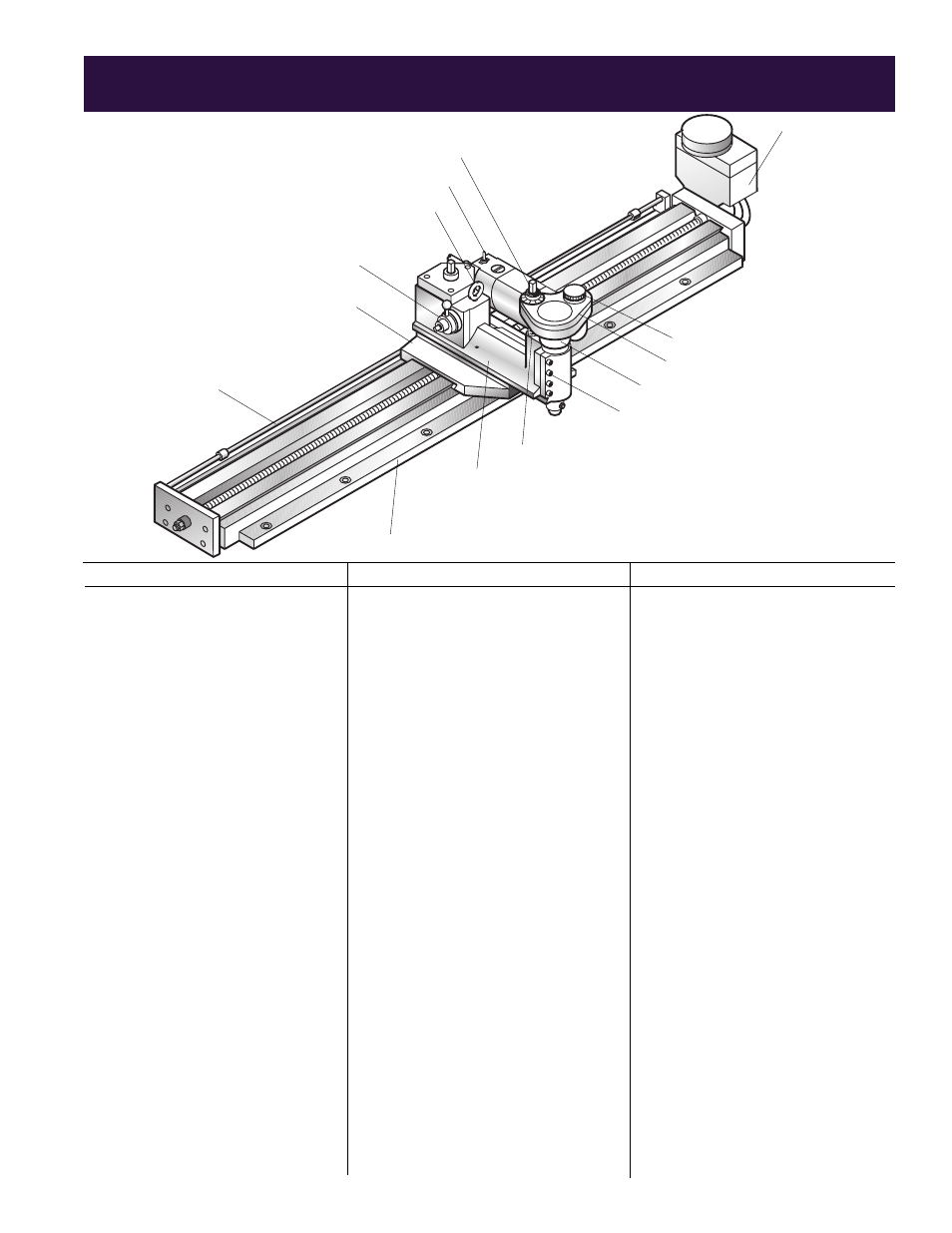

Gear box assembly
Spindle & quill assembly
Quill clamping screws
Adjusting knob
Cross slide power feed assembly
Cross slide assembly
ON/OFF switch
Lifting eye
Vertical adjusting shaft
Vertical adjusting screw assembly
Top slide assembly
Bed assembly
Stop rod assembly
PM2000 Portable Milling Machine
Three-axis milling machine with 20" (508
mm) of longitudinal travel. Machine comes
complete with one end mill, tool kit, speed
control, and instruction manual.
10726 PM2000 -inch, 115V power head,
115V power feed
Machine includes one .75" dia. x
.75" shank end mill, 115V milling
head, and 115V longitudinal feed
and in-line speed control.
10730 PM2000 - metric, 230V power
head, 115V power feed
Machine includes one 20 mm dia. x
20 mm shank end mill, 230V milling
head, and 115V longitudinal feed
and in-line speed control.
11680 PM2000 -inch, air power head, air
power feed
Machine includes one .75" dia. x
.75" shank end mill, 2 hp (1.49 kW)
air milling head**, and .31 hp (.23
kW) air longitudinal feed.
17365 PM2000 - B Series, 115V power
feed
Same as machine described above
except it has a tool post in place of
the milling head, and 6" (152 mm)
cross slide travel. Includes 115V
longitudinal feed.
PM4000 Portable Milling Machine
Three-axis milling machine with 78" (1981.2
mm) of longitudinal travel. Machine comes
complete with one end mill, tool kit, speed
control, and instruction manual.
10739 PM4000 - inch, 115V power head,
115V power feed
Machine includes one .75" dia. x
.75" shank end mill, 115V milling
head, and 115V longitudinal feed
and in-line speed control.
10743 PM4000 - metric, 230V power
head, 115V power feed
Machine includes one 20 mm dia. x
20 mm shank end mill, 230V milling
head, and 115V longitudinal feed
and in-line speed control.
25419 PM4000 - inch, air power head, air
power feed
Machine includes one .75" dia. x
.75" shank end mill, 2 hp (1.49 kW)
air milling head**, and .31 hp (.23
kW) air longitudinal feed.
17367 PM4000 - B Series, 115V power
feed
Same as machine described above
except it has a tool post in place of
the milling head, and 6" (152 mm)
cross slide travel. Includes 115V
longitudinal feed.
PM3000 Portable Milling Machine
Three-axis milling machine with 49" (1244.6
mm) of longitudinal travel. Machine comes
complete with one end mill, tool kit, speed
control, and instruction manual.
10732 PM3000 -inch, 115V power head,
115Vpower feed
Machine includes one .75" dia. x .75"
shank end mill, 115V milling head,
and 115V longitudinal feed and in-line
speed control.
10736 PM3000 - metric, 230V power head,
115V power feed
Machine includes one 20 mm dia. x 20
mm shank end mill, 230V milling
head, and 115V longitudinal feed and
in-line speed control.
12340 PM3000 - inch, air power head, air
power feed
Machine includes one .75" dia. x .75"
shank end mill, 2 hp (1.49 kW) air
milling head**, and .31 hp (.23 kW) air
longitudinal feed.
17366 PM3000 - B Series, 115V power feed
Same as machine described above
except it has a tool post in place of the
milling head, and 6" (152 mm) cross
slide travel. Includes 115V longitudinal
feed.
Electric power
feed assembly
*Other configurations including hydraulic milling heads available upon special request.
**Air motor requires 105 ft
3
/min (3 m
3
/min) at 80 psi (550 kPa).
PM Series Components
