2 10/98
Cross travel (top slide):
• 8-inch (203 mm)
• Hand-fed with a crank or power-fed with your
3/8 inch drill.
Vertical travel (spindle):
• 3" (76 mm) for all models, controlled by hand
crank.
• The vertical adjusting screw is calibrated for
accurate adjustments and has a locking nut for
zeroing.
• Power is delivered by a triple gear reduction
power head with in-line electronic speed control
providing spindle speeds from 280 to 525 rpm.
• Spindle accepts standard 3/4" Weldon-type shank
cutting tools. A 20 mm spindle is available for
metric applications.

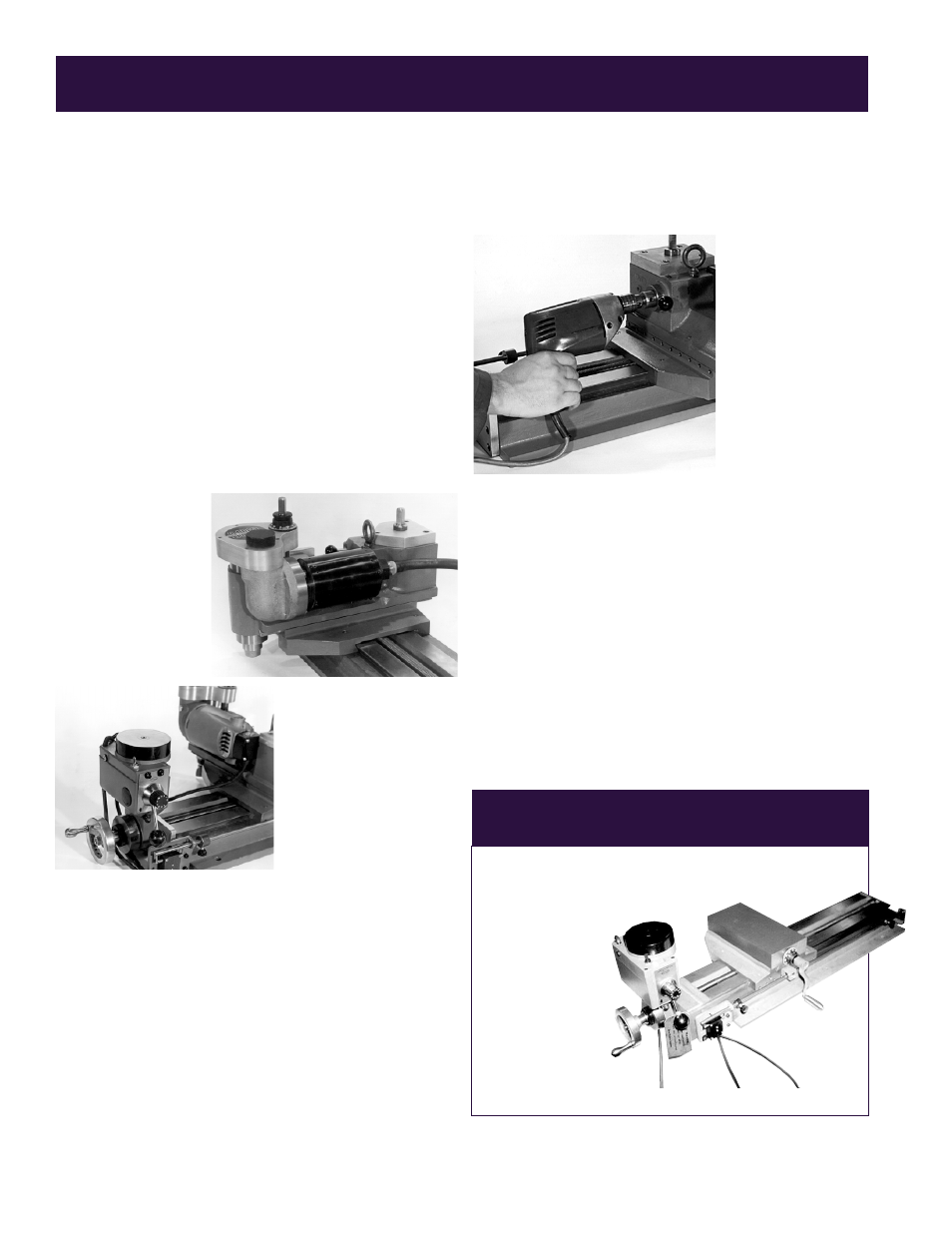

The PM-B Series Portable Mill
This 2-axis machine has a blank tool post slide
instead of the top slide assembly, so it
can be modified
to suit the job
site needs.
Longitudinal
travel is the
same as for
the PM series
machines.
Tool post slide travel
is 6.4" (162.5 mm).
Climax's PM Series 3-axis portable milling machines
provide precise and versatile on-the-job milling
capabilities. They are designed to be attached either
to the work piece or to a fabricated frame beside it.
Downtime savings will pay for the machine in a
short time.
• All gears and drives are permanently lubricated
and sealed to allow operation in any position.
• Precision machined dovetail ways and adjustable
gibs provide smooth accurate travel.
Longitudinal travel (bed):
• 20" (508 mm) for PM2000
• 49" (1244.6 mm) for PM3000
• 78" (1981 mm) for PM4000.
• Push-button rapid traverse saves time between
cuts.
• Adjustable feed stops on the slide are standard.
• Forward, neutral and reverse modes are controlled
by a shift lever. A hand wheel is provided for fine
adjustments.
Features
A portable vari-
able speed drill
motor may be
used as a power
cross feed drive
by applying it to
the external stud
provided.
Power feed on the
longitudinal axis
provides an infi-
nitely variable feed
rate from 0 to 20
IPM with push-
button rapid
traverse.
A 1 hp electric
motor is standard
equipment; a
pneumatic power
option is available
for flammable
vapor areas.
