Configure your lm6000 in 9 easy steps.
To configure your LM6000 Linear Mill:
1 Select a Base Unit
2 Select a Ram and Cross Slide Assembly
3 Select a Milling Head Assembly
4 Select Tooling
(Optional)
5 Select Drive Motor and Feed Assemblies
- A Spindle Drive Motor
- A Feed Assembly for Each Axis
6 Select a Stand-Alone Feed Control (If Required)
7 Select Risers (Optional)
8 Select Milling Head Swivel Attachment (Optional)
9 Select Digital Read Out (Optional)
To configure the Linear Mill you require, simply select the
option you need in each step, then contact your Climax
representative.
The base unit includes the base assembly, a bed in the
length you select, a tool kit, metal framed crate and
instruction manual.
1 Base Unit __
Base Unit with 48 inch (1219.2 mm) travel bed 52030
Base Unit with 72 inch (1828.8 mm) travel bed 52031
Base Unit with 96 inch (2438.4 mm) travel bed 52032
Base Unit with 120 inch (3048.0 mm) travel bed 52033
Base Unit with 144 inch (3657.6 mm) travel bed 52034
2 Ram & Cross Slide Assembly
24 inch (609.6 mm) travel 52041
36 inch (914.4 mm) travel 52042
48 inch (1219.2 mm) travel 52043
* Additional Ram & Cross Slide Assemblies may be purchased separately.
3 Milling Head Assembly (Z-axis)
#40 Taper Spindle, 4 inch (101.6 mm) travel
with standard draw bolt 46949
#40 Taper Spindle, 8 inch (203.2 mm) travel
with standard draw bolt 47000
#50 Taper Spindle, 4 inch (101.6 mm) travel
with standard draw bolt 46607
#50 Taper Spindle, 8 inch (203.2 mm) travel
with standard draw bolt 47050
#40 Taper Spindle, 4 inch (101.6 mm) travel
with metric draw bolt 46956
#40 Taper Spindle, 8 inch (203.2 mm) travel
with metric draw bolt 46955
#50 Taper Spindle, 4 inch (101.6 mm) travel
with metric draw bolt
46954
#50 Taper Spindle, 8 inch
(203.2 mm) travel
with metric draw bolt 46953
4 Tooling Options, #40 Taper
#40, 4 inch (101.6 mm) face mill with inserts 47380
#40, 5 inch (127.0 mm) face mill with inserts 47381
#40, 6 inch (152.4 mm) face mill with inserts 47382
Carbide Inserts 47229
Tooling Options, #50 Taper
#50, 4 inch (101.6 mm) face mill with inserts 47383
#50, 5 inch (127.0 mm) face mill with inserts 47384
#50, 6 inch (152.4 mm) face mill with inserts 47385
#50, 8 inch (203.2 mm) face mill with inserts 47386
Carbide Inserts 47229
5 Spindle Drive Motor
Hydraulic, 8.0 in3 (131.0 cm3), 603 Spindle RPM 53459
with 25 Hp HPU @ 20 GPM (75.7 L/min)
Hydraulic, 9.6 in3 (157.3 cm3), 498 Spindle RPM 53458
with 25 Hp HPU @ 20 GPM (75.7 L/min)
Hydraulic, 11.9 in3 (195.0 cm3), 375 Spindle RPM 46950
with 25 Hp HPU @ 20 GPM (75.7 L/min)
Hydraulic, 14.9 in3 (244.2 cm3), 300 Spindle RPM 46375
with 25 Hp HPU @ 20 GPM (75.7 L/min)
Hydraulic, 18.7 in3 (306.4 cm3), 239 Spindle RPM 46549
with 25 Hp HPU @ 20 GPM (75.7 L/min)
Hydraulic, 24.0 in3 (393.3 cm3), 188 Spindle RPM 46550
with 25 Hp HPU @ 20 GPM (75.7 L/min)
Pneumatic Drive Motor 46308
(More than one motor may be ordered. Hydraulic Power Units
sold separately)
X-Axis Feed Assembly
Manual Feed 48224
Electric Feed Assembly, 120V 53219
with 20 ft (609.6 cm) cables
Electric Feed Assembly, 120V 53221
with 50 ft (1524.0 cm) cables
Electric Feed Assembly,120V 53222
with 100 ft (3048.0 cm) cables
Electric Feed Assembly, 230V with 20 ft 53223*
(609.6 cm) cables (not for use w/ Climax HPU)
Electric Feed Assembly, 230V with 50 ft 53224*
(1524.0 cm) cables (not for use w/ Climax HPU)
Electric Feed Assembly, 230V with 100 ft 53225*
(3048.0 cm) cables (not for use w/ Climax HPU)
Hydraulic Feed Assembly 48100
(no limit switches, order separately)
* Order 230V stand-alone controls
Y-Axis Feed Assembly
Manual Feed 49959
Electric Feed Assembly, 120V 53219
with 20 ft (609.6 cm) cables
Electric Feed Assembly, 120V 53221
with 50 ft (1524.0 cm) cables
Electric Feed Assembly, 120V 53222
with 100 ft (3048.0 cm) cables
Electric Feed Assembly, 230V with 20 ft 53223*
(609.6 cm) cables (not for use w/ Climax HPU)
Electric Feed Assembly, 230V with 50 ft 53224*
(1524.0 cm) cables (not for use w/ Climax HPU)
Electric Feed Assembly, 230V with 100 ft 53225*
(3048.0 cm) cables (not for use w/ Climax HPU)
Hydraulic Feed Assembly 48100
(no limit switches, order separately)
* Order 230V stand-alone controls

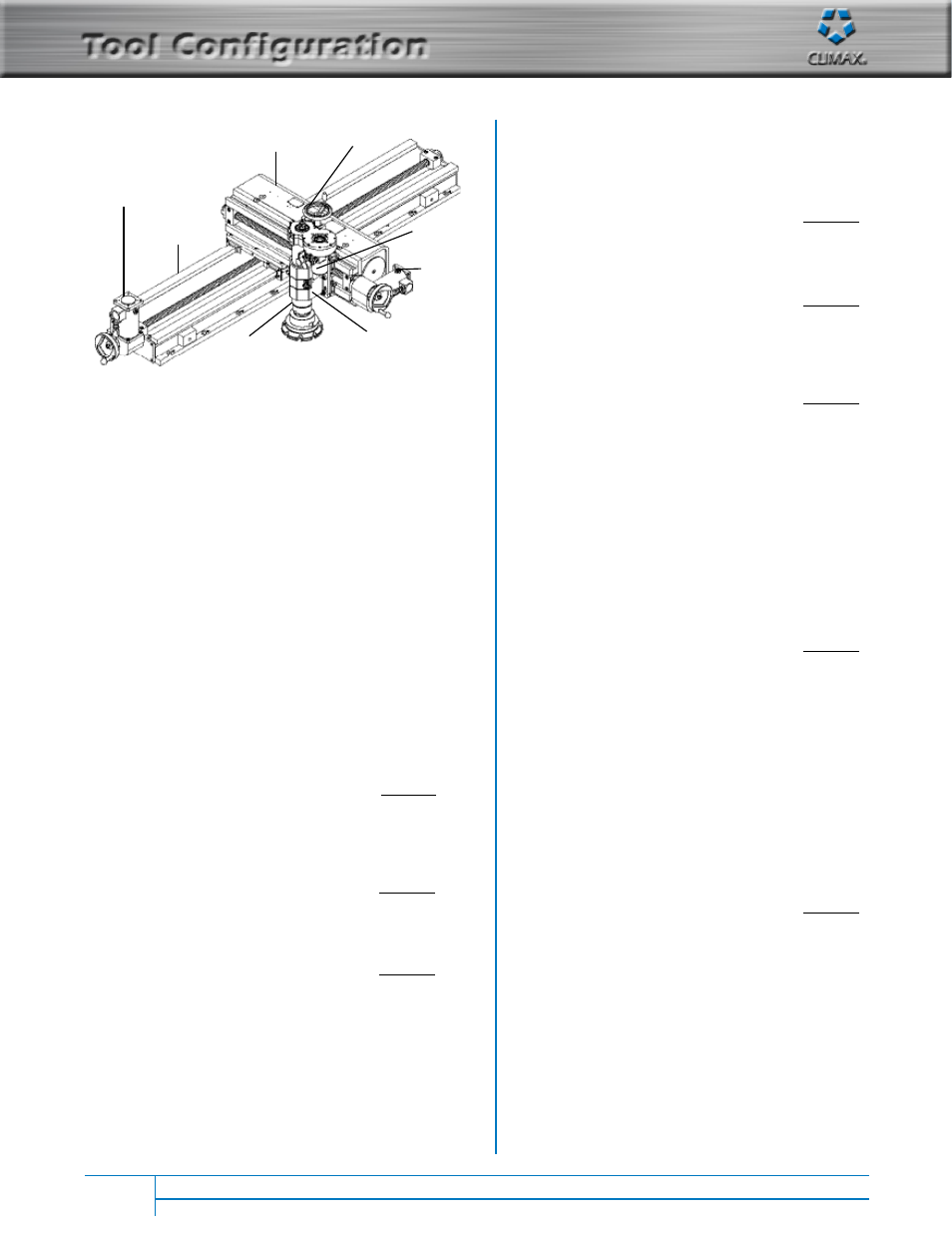

milling head assembly
Z-axis feed
handle
Spindle drive
motor
Y-axis electric
feed assembly
Ram and cross
slide assembly
(Y-axis travel)
main bed
(X-axis travel)
X-axis electric
feed assembly
Quill
(Z-axis travel)
