page 3

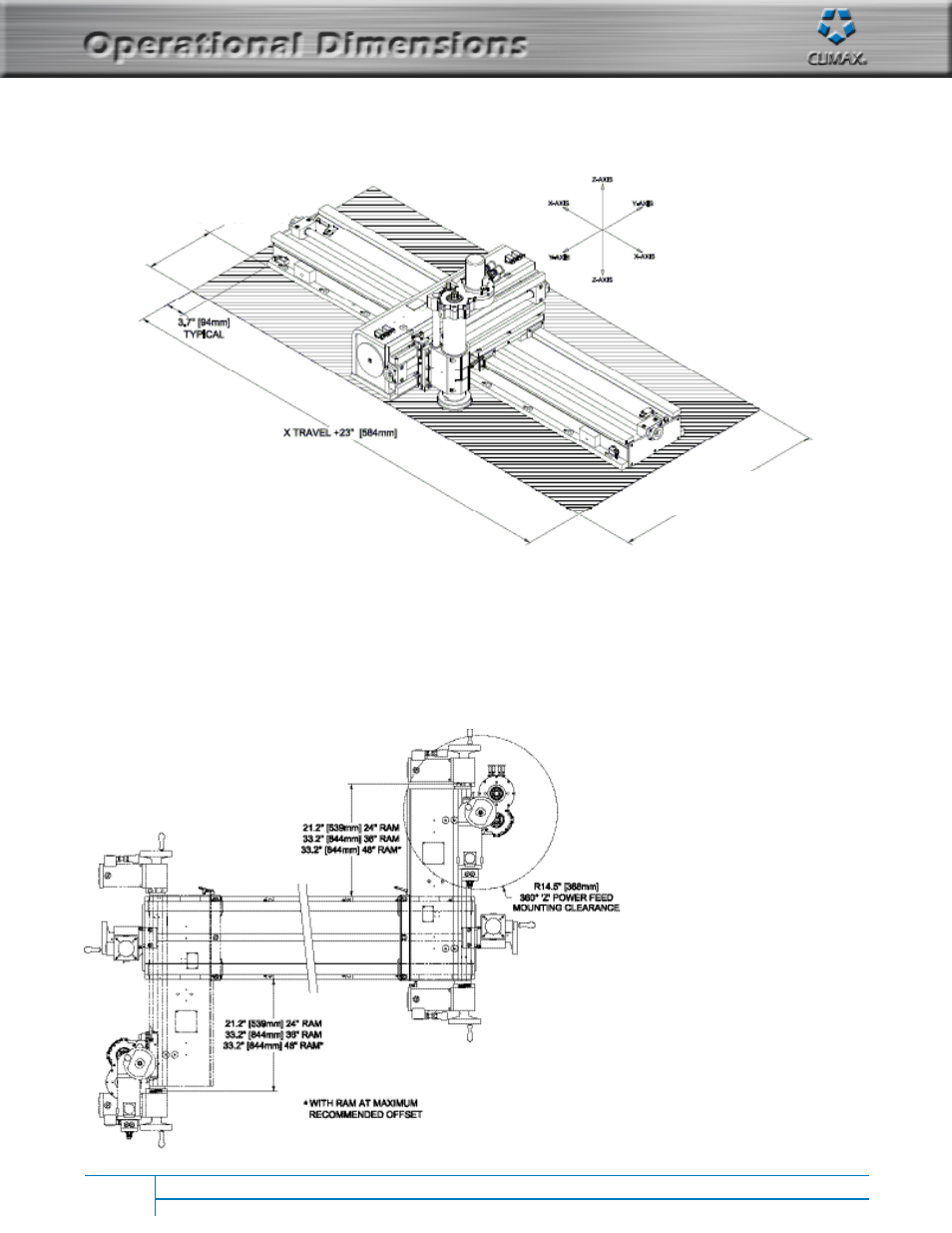

Operational Dimensions Operational Dimensions
Milling Area Dimensions Dimensions in Inch (mm)
(Dimensions shown are to the centerline
of the spindle) Total area around mill base that can be milled by offsetting
the Ram on both sides, and by rotating the Ram 180º.
When milling overhead, the entire area may be milled.
Overhead view
(with Ram at maximum recommended offset)
The Ram (Y-Axis) may be offset to
either side of the bed, and clamped.
Dovetail clamps allow the Ram to be
locked in any position. The Ram may
also be rotated 180º for increased
flexibility.
The optional Z-axis power feed may
be rotated to any 360º position, and
clamped in place.
14.5 (368.3) (with 24” RAM)
26.5 (673.1) (with 36” RAM)
**26.5 (673.1) (with 48” RAM)
44.7 (1135.4) (with 24” RAM)
88.5 (2247.9) (with 36” RAM)
** 88.5 (2247.9) (with 48” RAM)
** Dimensions shown are with RAM at
MAXIMUM RECOMMENDED OFFSET
