Display Creator Tabs

11

www.motec.com

Display Creator User Manual – MoTeC Ⓒ 2014 Published 1 July 2014

Display Creator Tabs

Display Creator contains six tabs required to create a display configuration. That is,

• Settings
• Communications
• Channels & Functions
• Alarms
• Pages
• Images

Settings Tab

Defines the display or logger device for which the display configuration is being created. Changing the device
will automatically resize all elements so as to fit on the device's screen.

The default font used for the configuration is also specified on this tab. The display configuration is not valid and
cannot be sent to the device if a default font is not specified.

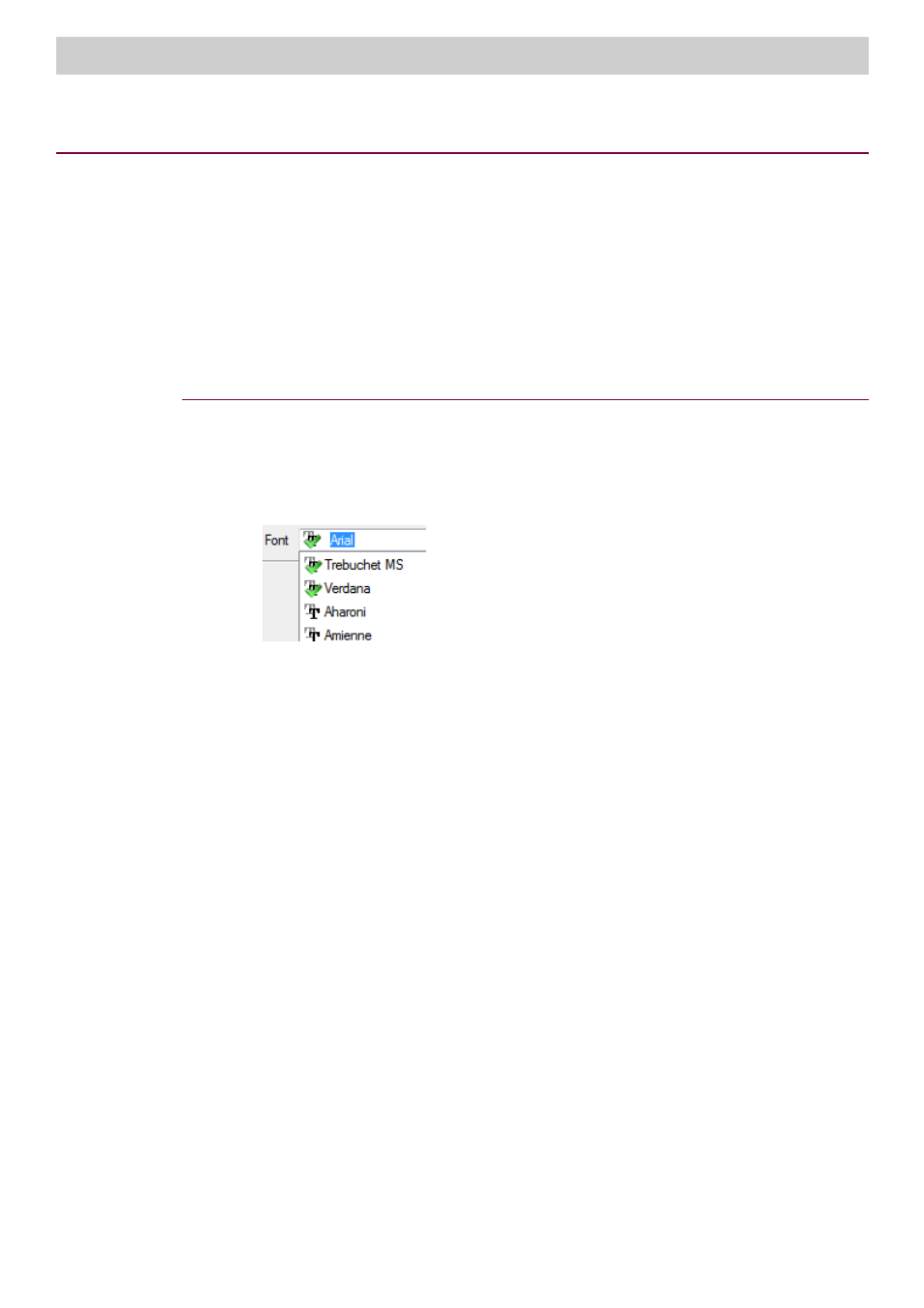

A green tick in the font icon

indicates that it is a Windows system font. As such, there

is certainty that these fonts will be available if the project is moved to another PC.
