Section 3
Operating Instructions
3.1 General Description
This section describes the displays, controls and connectors of the Model 4075 and 4078 - Function Generators.
All controls for the instrument local operation are located on the front panel. The connectors are located on both
front and rear panels.

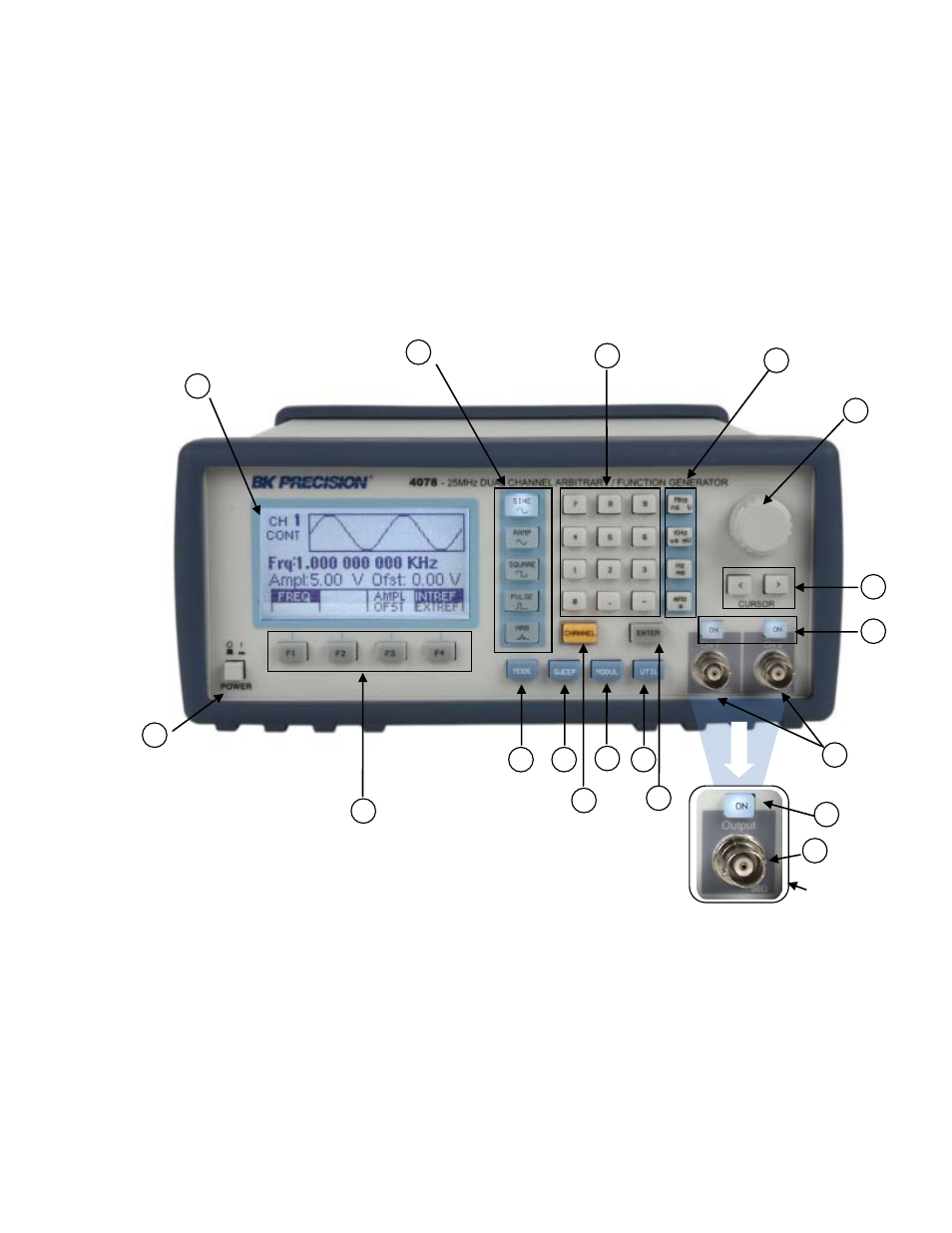

Figure 3.1 - Front Panel View
1. Power ON-OFF - Applies and removes AC power to the unit
2. Display Window - Displays all instrument data and settings on a LCD.
3. FI-F4 Keys - Select the menu options that appear on the second line of the LCD display. Menus
differ depending on the selected parameter, function or mode.
4. Function Keys - Select the output waveform, Sine, Triangle, Square, Pulse or Arbitrary.
5. Rotary Knob - Used to increment/decrement numerical values or to scan through the possible
selections.
1
2
3
5
6
7
7
8
9
10
11
12 13 14 15
16
16
4
(for Model 4075)
