Mechanical Calibration Kits VectorStar™ MS4640B Series
V (1.85 mm) Multi-Line Calibration Kit, 3657 Series

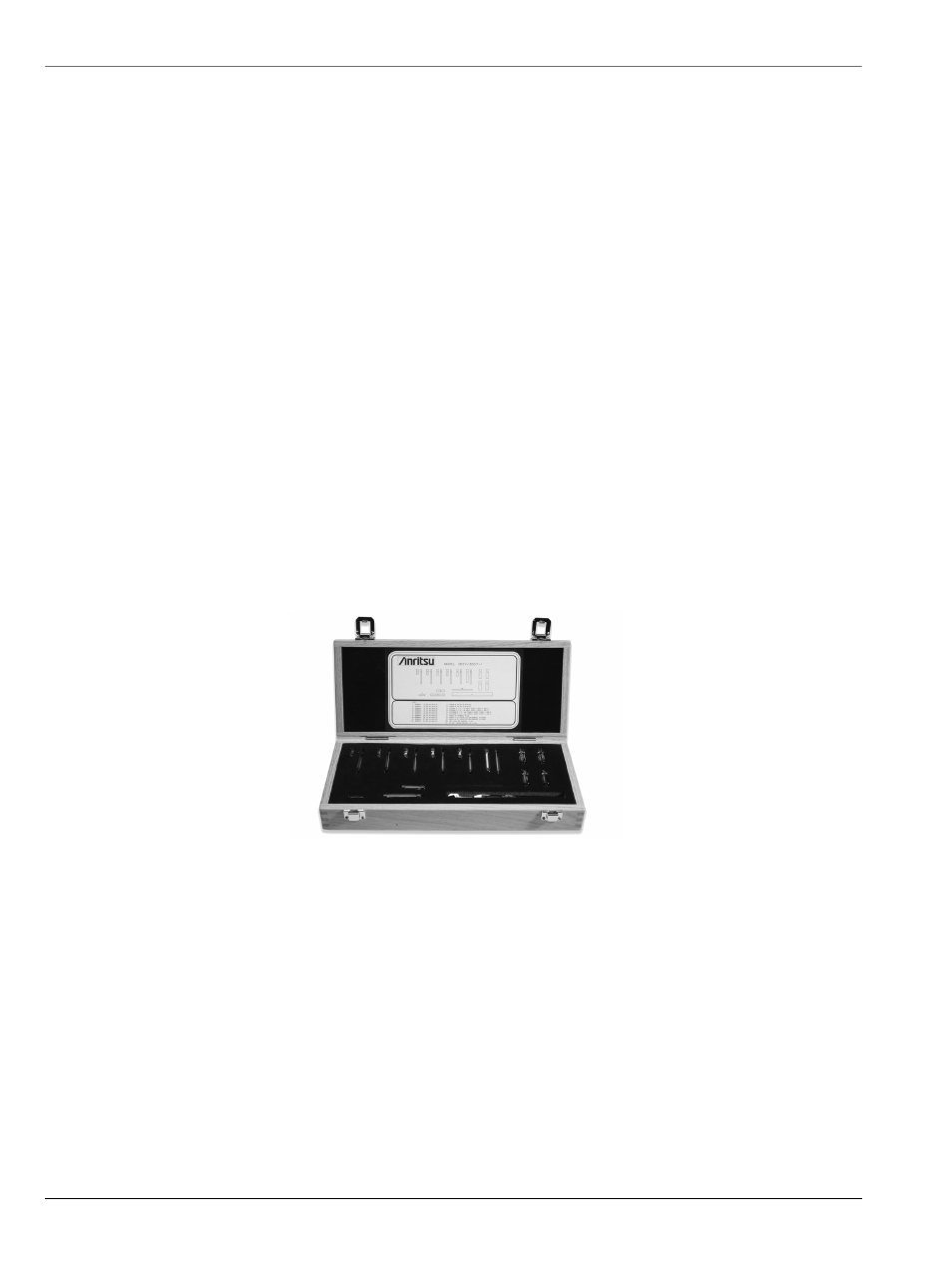

The 3657 Calibration Kit provides 50 Ω beadless V (male to male) lines for metrology applications. The 3657-1 Calibration Kit includes Shorts for
LRL-type coaxial calibrations.
3657 Cal Kit contains: Additional Information (typical) Quantity Part Number
Line 1 Electrical Length = 15 mm; 50 Ω
Center Conductor 1 65899-1
Outer Conductor 1 65898-1
Line 2 Electrical Length = 16.7 mm; 50 Ω
Center Conductor 1 65899-2
Outer Conductor 1 65898-2
Line 3 Electrical Length = 18.4 mm; 50 Ω
Center Conductor 1 65899-3
Outer Conductor 1 65898-3
Line 4 Electrical Length = 20.1 mm; 50 Ω
Center Conductor 1 65899-4
Outer Conductor 1 65898-4
Line 5 Electrical Length = 21.8 mm; 50 Ω
Center Conductor 1 65899-5
Outer Conductor 1 65898-5
Line 6 Electrical Length = 49.84 mm; 50 Ω
Center Conductor 1 65899-6
Outer Conductor 1 65898-6
Tool, Center Conductor Removal Plug 1 65922
Fixture, Center Conductor Installation,
Short
For Lines 1 to 5
1 65901-1
Fixture, Center Conductor Installation,
Long
For Line 6
1 65901-6
Open-Ended Wrench 7 mm 1 783-1243
Torque Wrench 5/16 in, 0.9 N·m (8 lbf·in) 1 01-201
3657-1 Cal Kit adds: Additional Information (typical) Quantity Part Number
Short V (male) Offset: 5.1 mm 2 23V50B
Short V (female) Offset: 5.1 mm 2 23VF50B
3657 Series, V (1.85 mm) Multi-Line Calibration Kit
