2.0 Installation, continued
2.4 Rack Mount Installations, continued

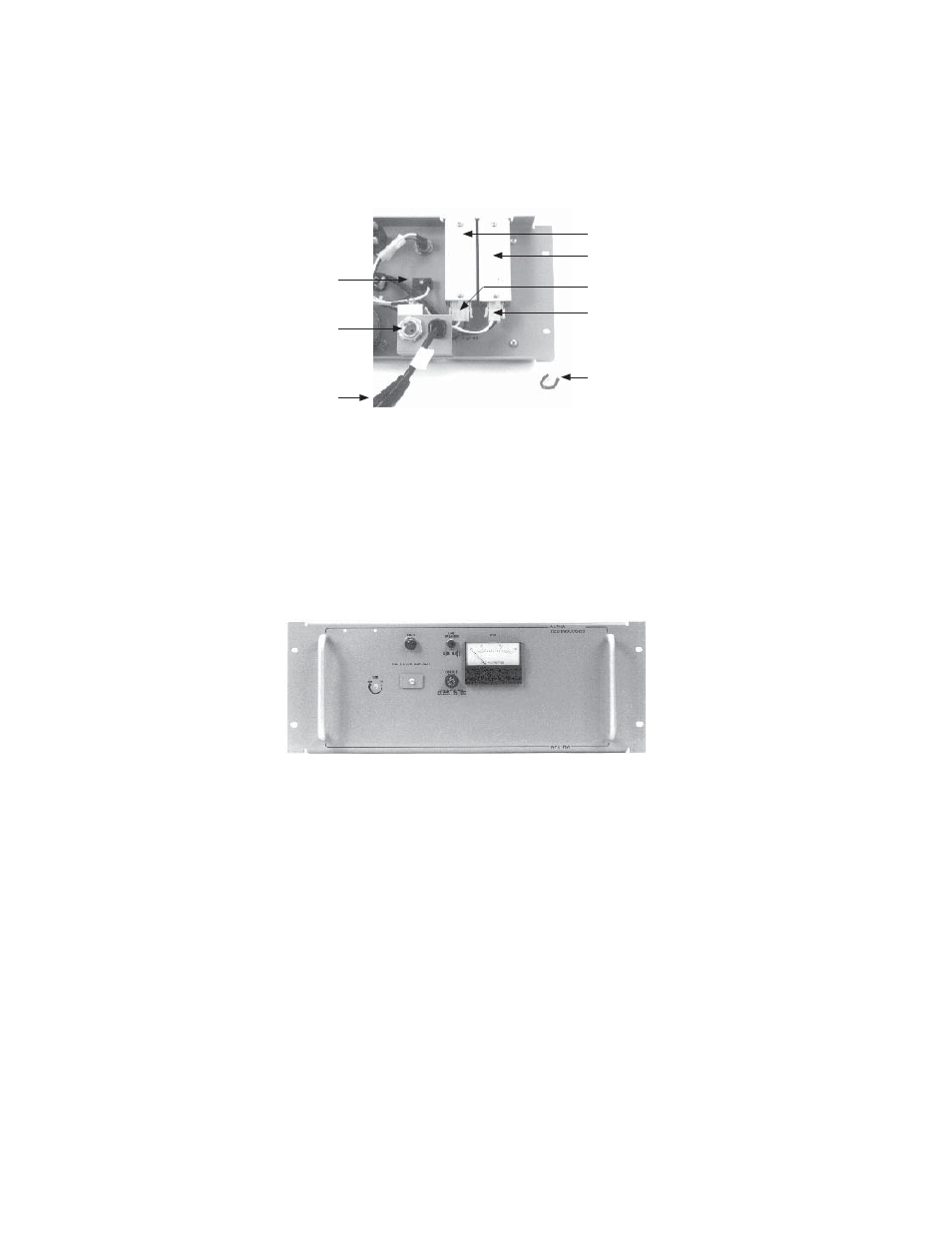

Fig. 2-9, APX-E Rack Mount (230VAC Version)
Fig. 2-8, Option Placement and Power Connections
ACAT-3P
3-Pin Connector
2-Pin Connector
TDR-M
Shorting Connector
LA-P Receptacle
Output Connector
Power Input Cord
