016-030-B0-005, Rev. C

2.0 Installation,

continued

2.3

Pedestal Mount Installations, continued

Mounting Stake

Poured Concrete

Utility

Cable

3" to 4"

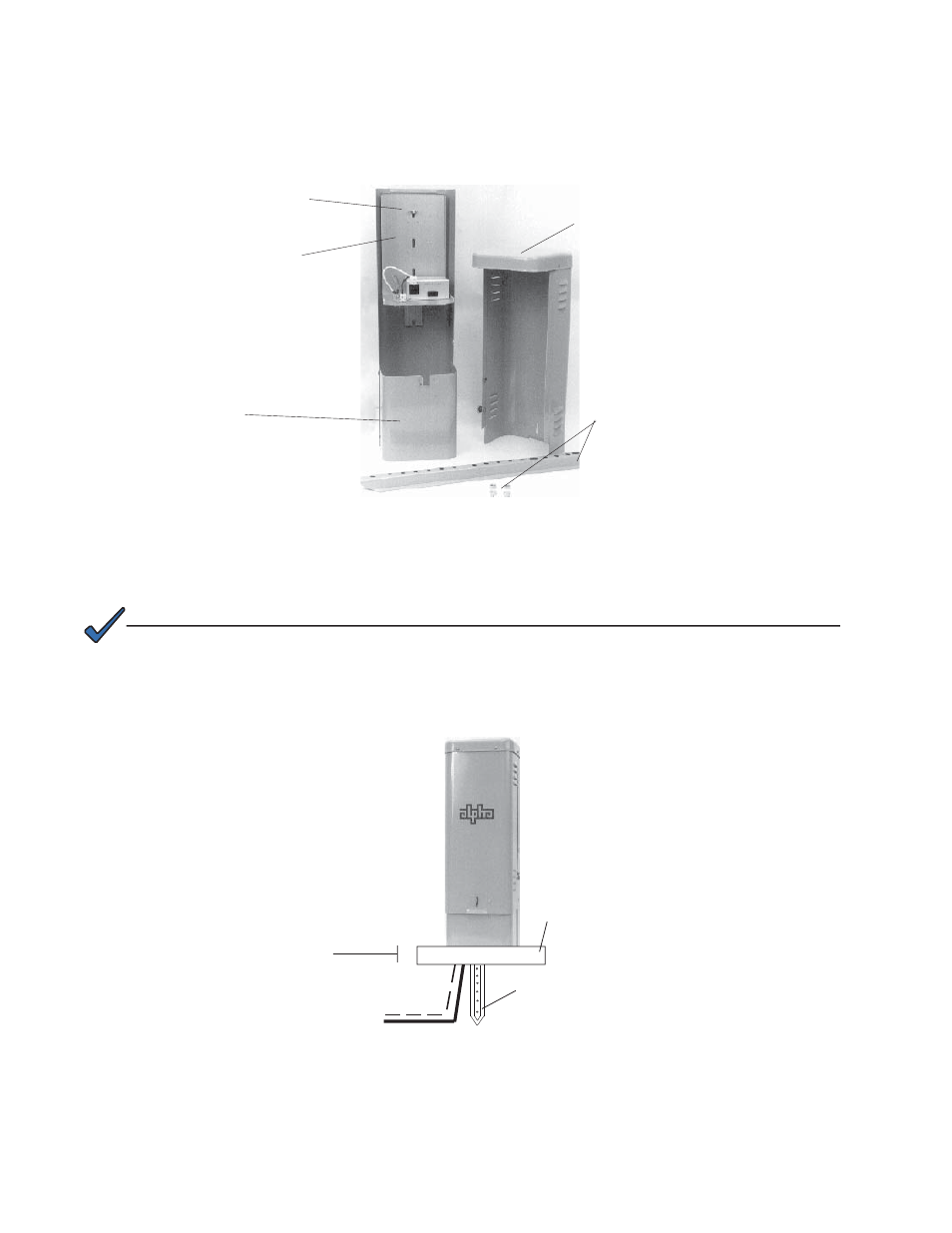

Fig. 2-5, Soil Mount PED Enclosure Installed in Poured Concrete

Fig. 2-4, PED Enclosure

PED Enclosure Hood

Mounting Stake

and Hardware

Wing nut

PED-Universal
Bracket (UB1)

PED Enclosure
Base Unit

NOTE:

If a more secure confi guration is required, mount the enclosure level with the surrounding soil (with no
depression), place a wooden form around the outside of the enclosure, and pour concrete to a depth of
3 or 4 inches.
