THESE DESIGNS AND SPECIFICATIONS ARE CONFIDENTIAL, REMAIN
THE PROPERTY OF ARGUS TECHNOLOGIES LTD., AND SHALL NOT
BE COPIED OR USED WITHOUT ITS WRITTEN CONSENT.
TYPE
D2
1
0.5
0.05
0.5
[ 0.040]
[ 0.020]
[ 0.002]
UNITS: mm [in]
X [X.X]
X.X [X.XX]
X.XX [X.XXX]
ANGULAR: SCALE:
OF
2009 ARGUS TECHNOLOGIES
TITLE:
ISSUE
DATE
SIZE
B
DWG NO.
CUSTOMER CONNECTION,
KIT, INTRFC, w/ CBL SET,
BATT TO BATT, Te4x
747-603-08
SHEET
NTS
REV
P/A
6 7

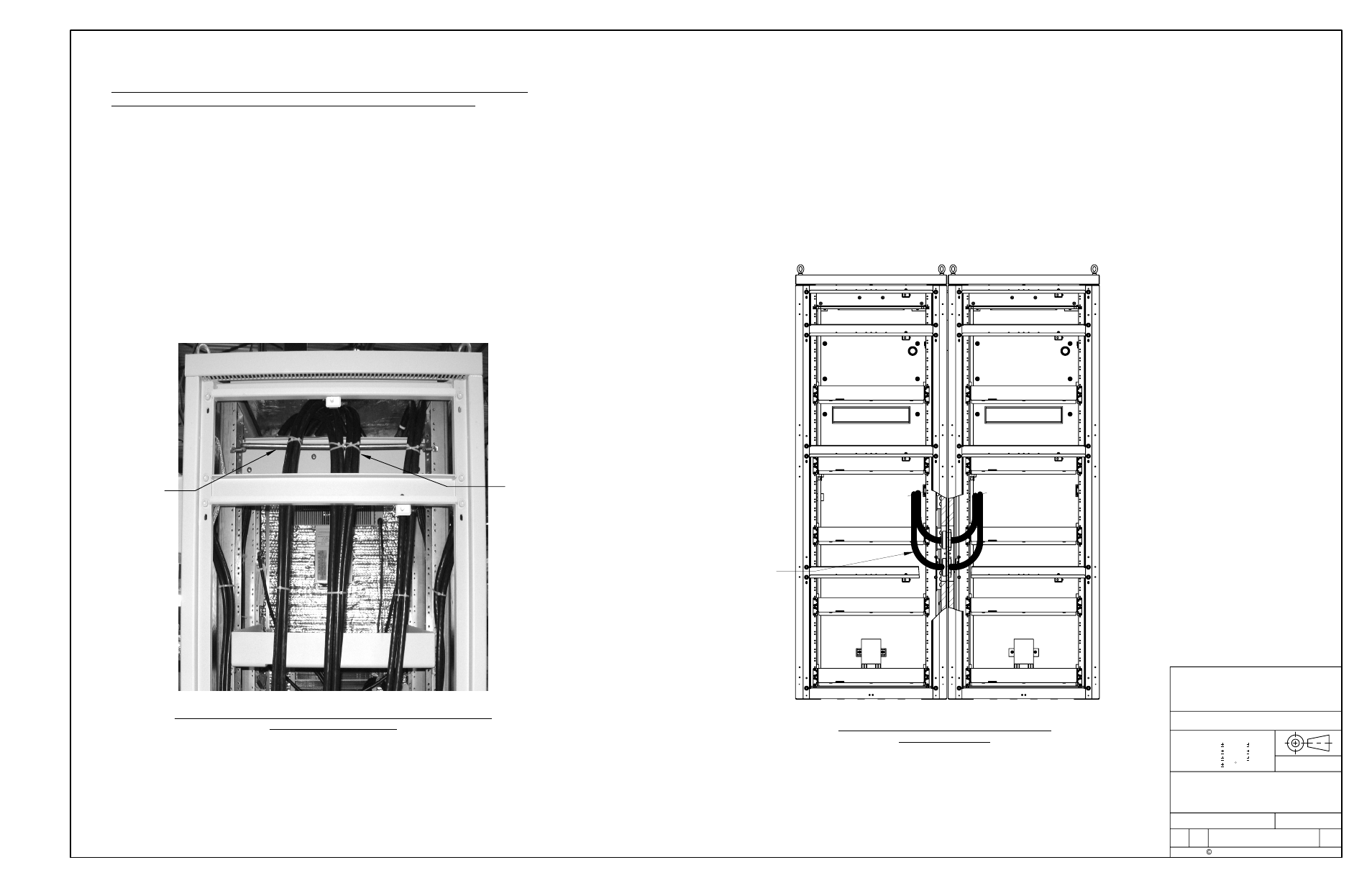

DETAIL D - REAR BATTERY INTERFACE
CABLE ROUTING
ROUTE INTERFACE CABLES FROM EXISTING
Te40 ENCLOSURE CHARGE TERMINATION PANEL
THROUGH CHASE NIPPLE FITTINGS TO 2nd Te40
ENCLOSURE CHARGE TERMINATION PANEL
AS SHOWN.
2nd Te40 ENCLOSURE EXISTING Te40 ENCLOSURE
NEATLY STRAP INTERFACE CABLES
TO TIE-OFF BAR USING CABLE TIES
(ITEM 36 & 37) PROVIDED IN KIT.
CABLE TIE-OFF
BAR
DETAIL C - REAR BATTERY CHARGE TERMINATION PANEL
CABLE ROUTING (TYP.)
BATTERY ENCLOSURE (Te40) TO BATTERY ENCLOSURE (Te40)
INTERFACE CABLE ROUTING & CONNECTIONS CONT'D:
