SCALE:
THESE DESIGNS AND SPECIFICATIONS ARE CONFIDENTIAL, REMAIN
THE PROPERTY OF ALPHA TECHNOLOGIES LTD., AND SHALL NOT
BE COPIED OR USED WITHOUT ITS WRITTEN CONSENT.
TYPE
0.5
D2
1
0.5
0.05
0.002]
[ 0.040]
[ 0.020]
[
UNITS: mm [in]
X [X.X]
X.X [X.XX]
X.XX [X.XXX]
ANGULAR:
OF
4/30/2009 ALPHA TECHNOLOGIES
TITLE:
ISSUE
DATE
SIZE
B
DWG NO.
CUSTOMER CONNECTION,
KIT, INTERFACE, w/ CBL
SET, PWR TO BATT, Te4x
747-602-08
SHEET
NTS
REV
P/B
3 5
FOR +24V SYSTEMS
-
+ FOR -48V SYSTEMS
FOR +24V SYSTEMS
+
- FOR -48V SYSTEMS
FRONT VIEW
C
B
D
A

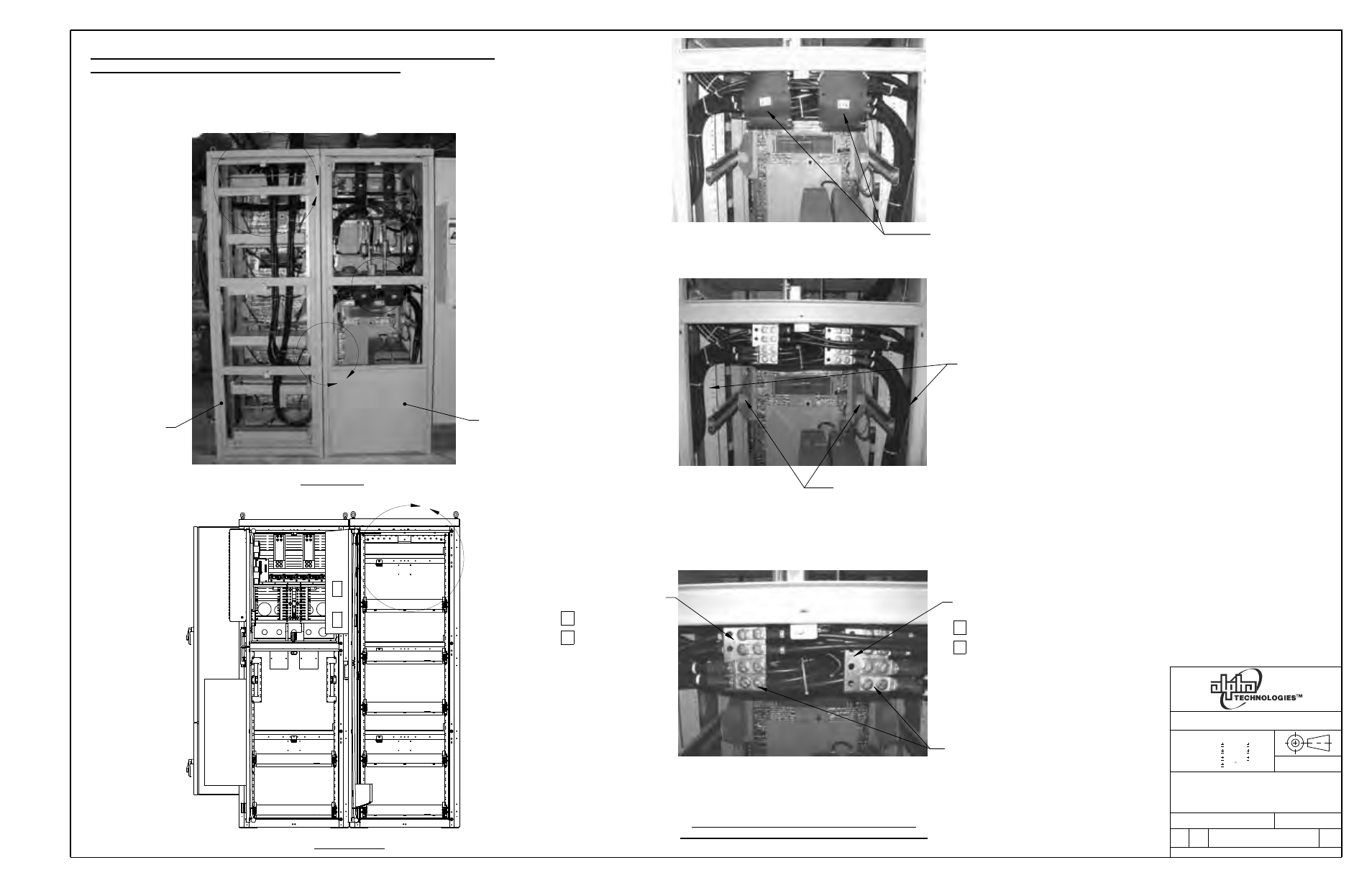

ROUTE INTERFACE CABLES FROM POWER ENCLOSURE THROUGH
CHASE NIPPLE FITTINGS INTO BATTERY ENCLOSURE AND UP TO
THE BATTERY CHARGE TERMINATION PANEL.
REAR VIEW
REAR SYSTEM OUTPUT BUS BAR
INSULATING COVERS
(+24V SYSTEM SHOWN)
OBSERVE PROPER BUS POLARITY
ON THIS SIDE:
CONNECT INTERFACE CABLE LUGS BACK
TO BACK ONTO SYSTEM OUTPUT BUS BARS
USING 3/8" HARDWARE SUPPLIED IN KIT.
REAR SYSTEM OUTPUT BUS
BAR CABLE ROUTING PATH
DETAIL A - POWER ENCLOSURE SYSTEM
OUTPUT BUS BAR CABLING & CONNECTIONS
TEMPORARILY REMOVE INSULATING COVERS
ON SYSTEM BUS BARS TO MAKE INTERFACE
CABLE CONNECTIONS. RE-INSTALL COVERS
ONCE CABLE CONNECTIONS ARE COMPLETED.
OBSERVE PROPER BUS POLARITY ON THIS SIDE:
KEEP ALL INTERFACE CABLES AWAY FROM
REAR SECTION OF EQUIPMENT SLIDES.
USE CABLE TIES PROVIDED TO ATTACH
INTERFACE CABLES TO SIDES OF EQUIPMENT
RACK CHANNELS AS NECESSARY.
CUSTOMER EQUIPMENT SLIDES
REAR SYSTEM OUTPUT BUS BAR
LUG CONNECTIONS
POWER ENCLOSURE (Te41) TO BATTERY ENCLOSURE (Te40)
INTERFACE CABLE ROUTING & CONNECTIONS:
Te41 POWER ENCLOSURE Te40 BATTERY
ENCLOSURE
©
