2.5 Rear access panel
There are four removable rear access panels, one top 8” panel and three 24” panels below. The 24” panel directly
below the 8” top panel is a slam latch panel. The top 8” panel and the lower two 24” panels use internal wing-
studs that must be removed to lift off the panels.
When installing the rear panels, first install the lower panel, then the next one up , then the top 8” panel, and finally
the top 24” slam latch rear panel.

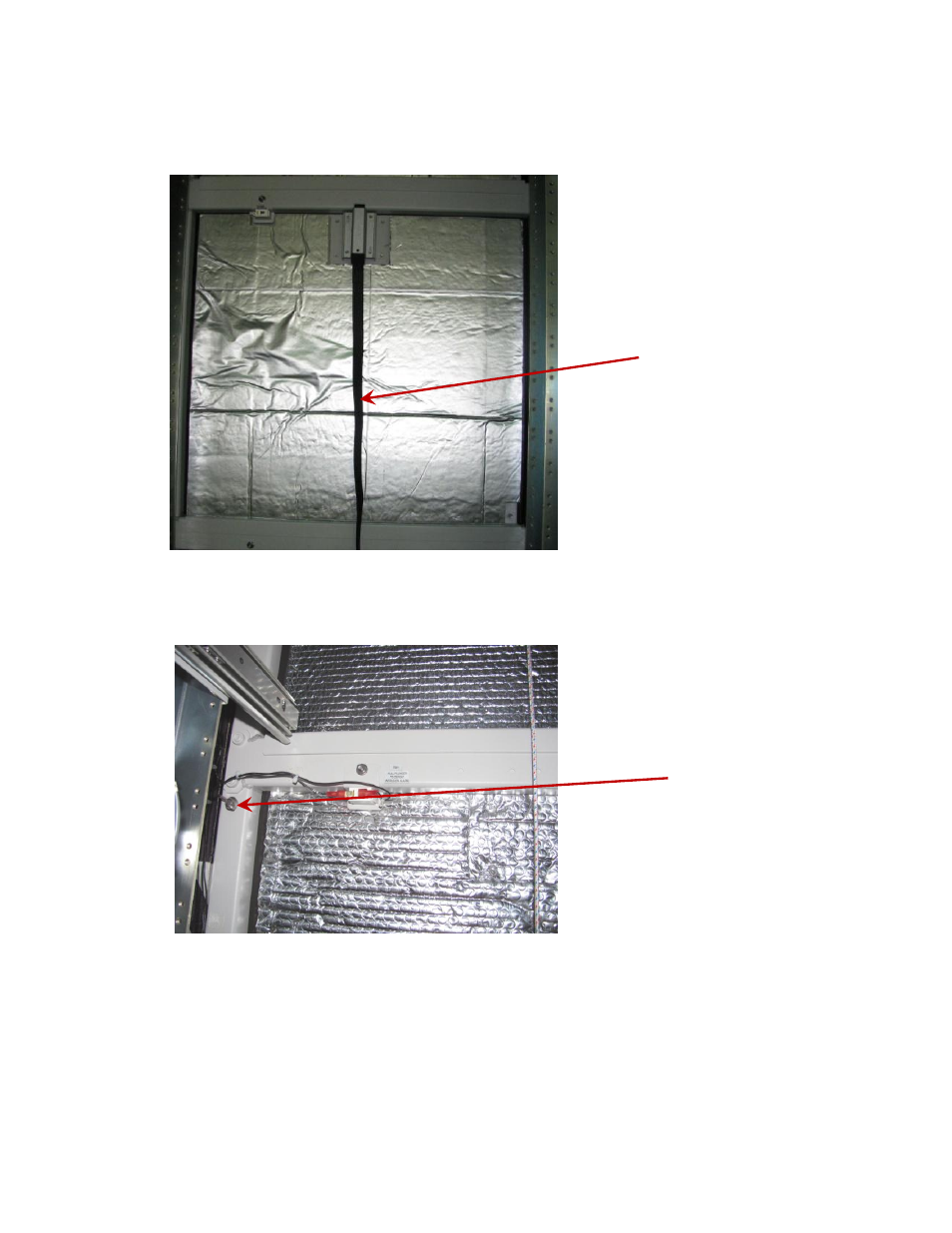

Pull on strap to release
top
24”rear panel, then
lift the panel up and out
of the enclosure.
Remove each set of wing
nuts, one on each side, to
release the other panels.
Figure 7 – 24” top panel
Figure 8 – Other panels
