Alpha Technologies Te43 - Manual (Page 39)

THESE DESIGNS AND SPECIFICATIONS ARE CONFIDENTIAL, REMAIN
THE PROPERTY OF ALPHA TECHNOLOGIES LTD., AND SHALL NOT
BE COPIED OR USED WITHOUT ITS WRITTEN CONSENT.
TYPE
D2
1
0.5
0.05
0.5
[ 0.040]
[ 0.020]
[ 0.002]
UNITS: mm [in]
X [X.X]
X.X [X.XX]
X.XX [X.XXX]
ANGULAR: SCALE:
OF
6/24/2009 ALPHA TECHNOLOGIES
TITLE:
ISSUE
DATE
SIZE
B
DWG NO.

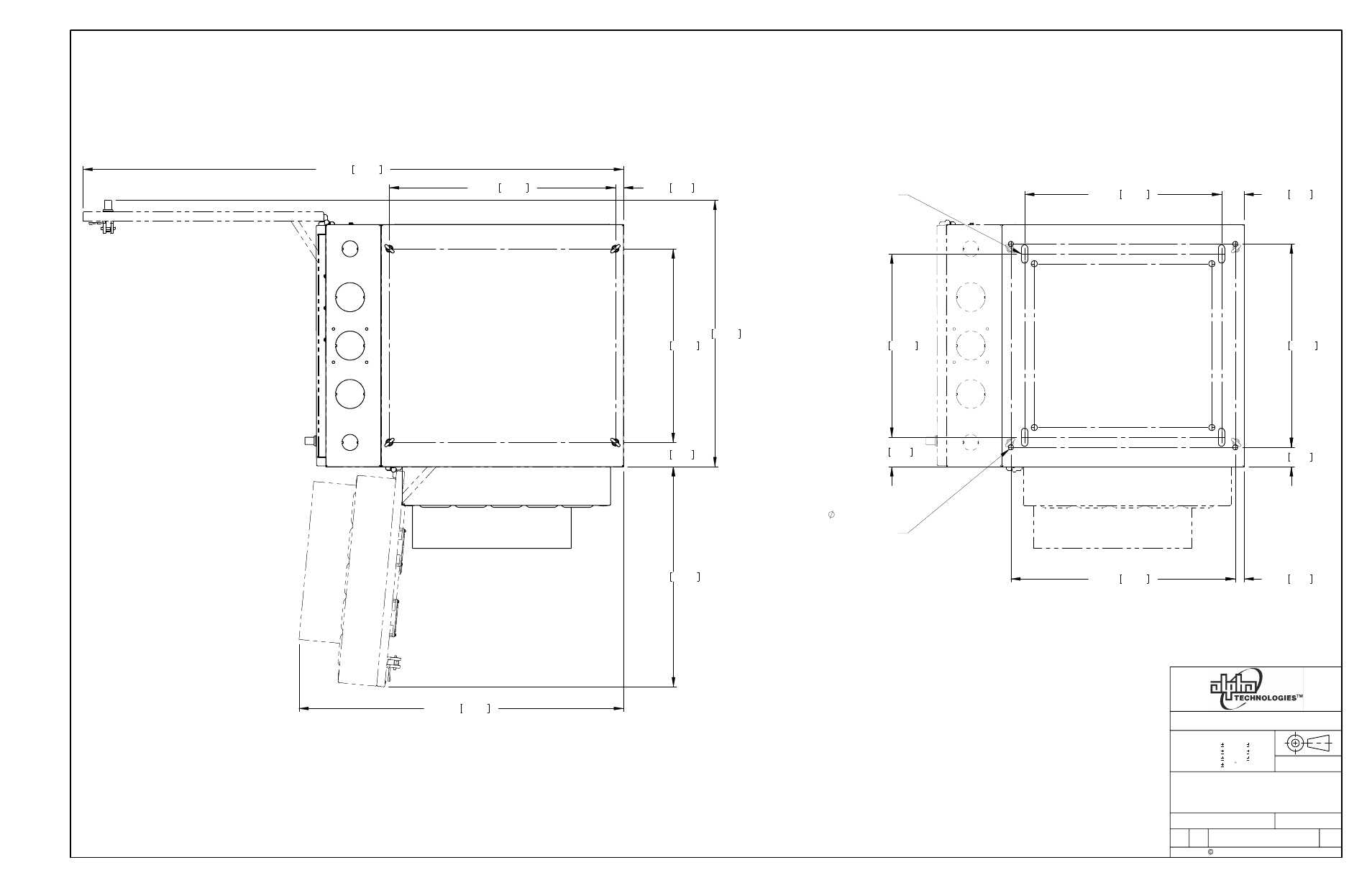

OUTLINE DRAWING, Te43
84" POWER SYSTEM AUX
ENCLOUSURE
057-104-06
SHEET
NTS
REV
P/B
4 4
1701.2 66.98
1021.2 40.20
693.1 27.29
838.5 33.01
711.2 28.00 25.4 1.00
76.2 3.00
609.6 24.00
706.1 27.80
640.1 25.20
61.0 2.40
92.7 3.65
576.6 22.70
619.8 24.40
27.9 1.10
71.1 2.80
SLOTTED MOUNTING HOLES MATCH
NOKIA ENCLOSURE FOOTPRINT (NOT
SEISMIC COMPLIANT)
BASE LAYOUT
TOP VIEW
FRONT
USE THESE HOLES FOR SEISMIC
15.9 [0.63] 4PL
CONCRETE PAD MOUNTING:
USE HILTI HSLB-M12/25
(ALPHA P/N 6600004) OR EQUIVALENT
PLATFORM MOUNTING:
USE APPROPRIATE MOUNTING HARDWARE
