Alpha Technologies Ltd. 057-104-C0 Rev B WC
Burnaby, British Columbia. Telephone: 604 436 5900 Fax: 604 436 1233. Page 10 of 27

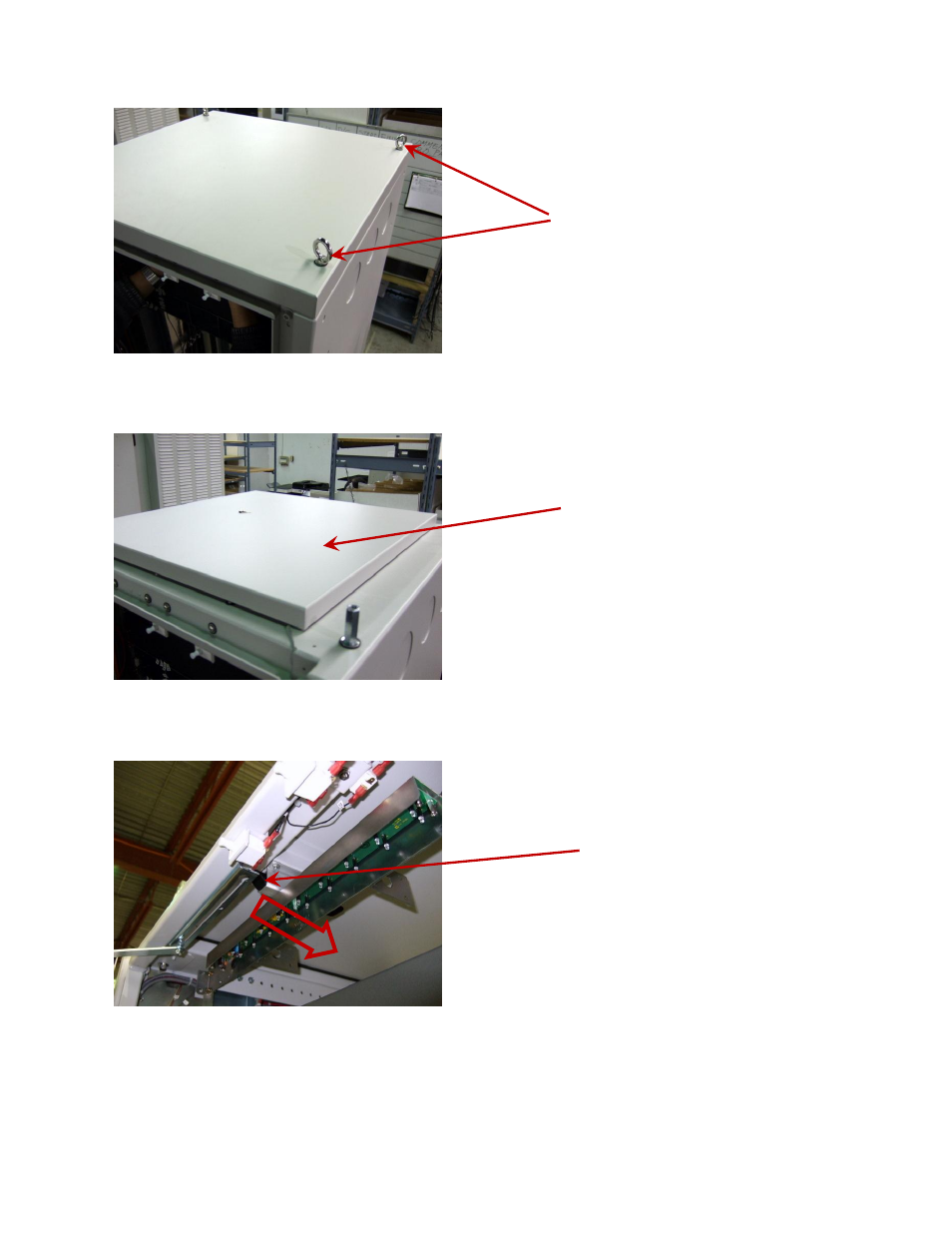

2.6 Removable solar shield and hatch plate
To re-install, ensure the slam latch on the hatch plate is fully engaged.
Re-install the solar shield by re-installing the eyebolts.
Remove eyebolts
Remove solar shield exposing hatch plate
To release hatch plate, pull the latch
ring toward the rear of the enclosure
in the direction shown by the large
arrow
