4.4.5 Enclosure-to-enclosure interface
The cable bridge kit between the enclosures can be mounted either on the left or right side of the enclosures.

This kit must be installed before installing adjacent enclosure.

See the enclosed drawings for the interface kit assembly.

Remove the knockouts on the lower rear side panels.

Apply a gasket around the opening used for cable routing.
Knock out enclosure-to-
enclosure holes. Bolt
enclosures together in the
top corners. Tighten the
bolts to the appropriate
torque.
Install “Nokia interface”
type gasket around conduit
openings

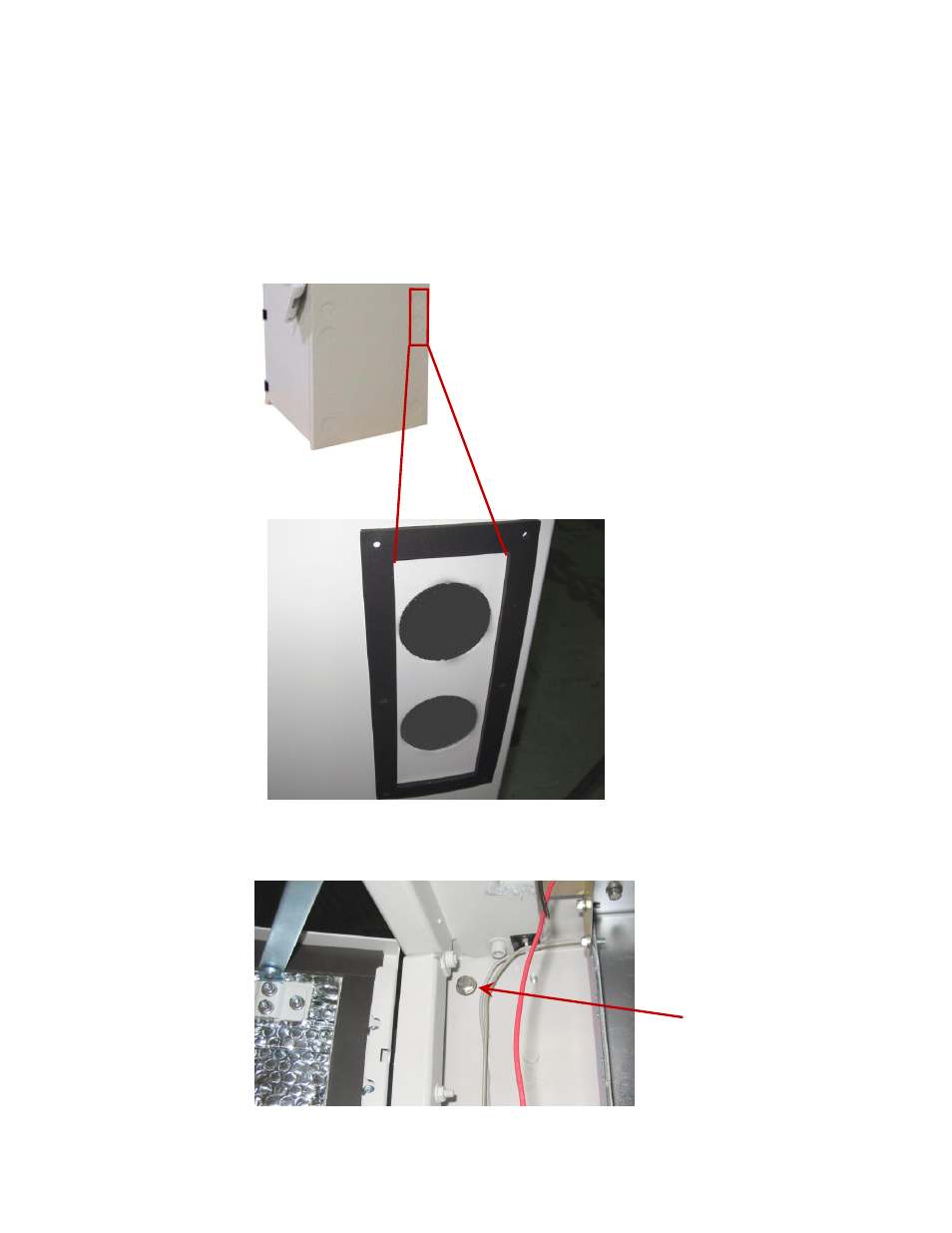

Figure 14 – Gasket on lower side panel
Figure 15 – Typical enclosure-to-enclosure mounting
