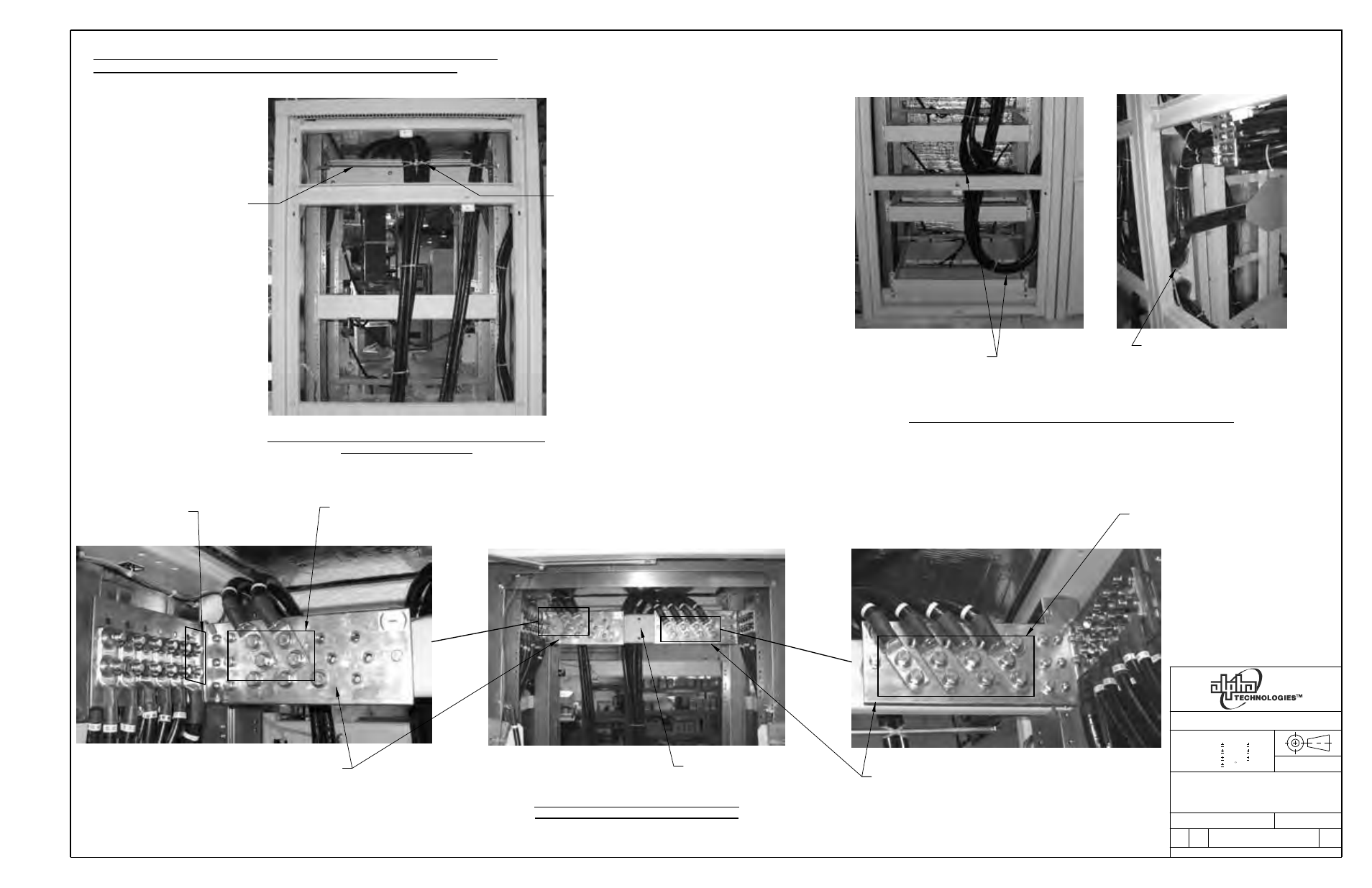

DETAIL D - REAR CABLE ROUTING BETWEEN ENCLOSURES
FROM POWER ENCLOSURE
NEATLY ROUTE CABLES THROUGH
BOTH CHASE NIPPLE FITTINGS.
PUT NEGATIVE CABLES THROUGH
TOP NIPPLE AND POSITIVE CABLES
THROUGH BOTTOM NIPPLE TO
KEEP CABLES ORGANIZED.
INTO BATTERY ENCLOSURE
DRAPE INTERFACE CABLES DOWN
FROM CABLE TIE-OFF BAR.
USE CABLE TIES PROVIDED TO NEATLY
DRESS/BUNDLE CABLES TOGETHER.
NEATLY STRAP INTERFACE CABLES
TO TIE-OFF BAR USING CABLE TIES
(ITEM 36 & 37) PROVIDED IN KIT.
CABLE TIE-OFF BAR
CONNECT INTERFACE CABLES TO THEIR RESPECTIVE (+) AND (-) BUS BARS ON
CHARGE TERMINATION PANEL USING 3/8" HARDWARE SUPPLIED AS SHOWN.
ENSURE CORRECT POLARITY IS OBSERVED WHEN MAKING CONNECTIONS.
USE A MULTIMETER TO CHECK ALL TERMINATIONS BEFORE
CONNECTING BATTERIES AND APPLYING POWER TO THE SYSTEM.
DETAIL B - REAR BATTERY CHARGE TERMINATION
PANEL CABLE ROUTING
DETAIL C - FRONT BATTERY CHARGE
TERMINATION PANEL CONNECTIONS
(+24V SYSTEM SHOWN)
BATTERY CHARGE
TERMINATION PANEL
OBSERVE PROPER BUS POLARITY ON THIS SIDE!
OBSERVE PROPER BUS POLARITY ON THIS SIDE!
POWER ENCLOSURE (Te41) TO BATTERY ENCLOSURE (Te40)
INTERFACE CABLE ROUTING & CONNECTIONS CONT'D:
CONNECT X2 #4/0 AWG
(-) CABLES FROM Te41
CONNECT X4 #4/0 AWG
(+) CABLES FROM Te41
CONNECT X2 #4/0 AWG
(-) CABLES (LUGS BACK
TO BACK) FROM Te41
©
