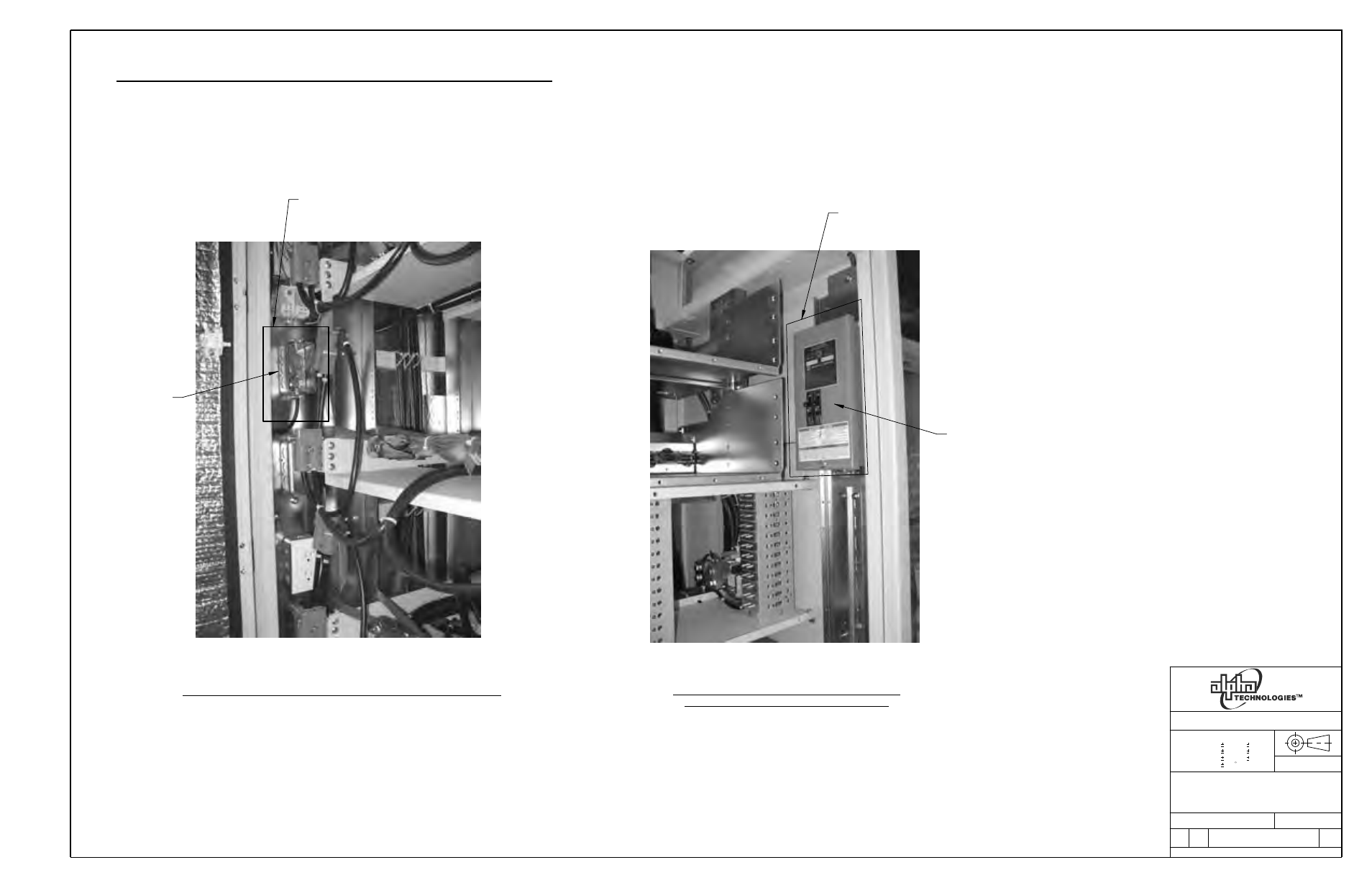

AIR CONDITIONER & AC LOADCENTER AC POWER CONNECTIONS:
Te40 AIR CONDITIONER AC POWER CONNECTION TO Te41
Te40 AIR CONDITIONER UTILITY BOX WIRING
CONNECT A SEPARATE POWER CABLE TO THE EXISTING AIR CONDITIONER
AC WIRING INSIDE UTILITY BOX AND ROUTE IT THROUGH BOTH
ENCLOSURES INTO THE Te41 UPPER COMPARTMENT TO THE
INTERNAL AC LOADCENTER.
Te41 AC LOADCENTER AIR CONDITIONER
AC POWER CONNECTION FROM Te40
Te41 UPPER COMPARTMENT INTERNAL AC LOADCENTER WIRING
(ONLY INCLUDED FOR ENCLOSURES NOT EQUIPPED WITH AN EXTERNAL LOADCENTER)
CONNECT THE POWER CABLE COMING FROM Te40 AIR CONDITIONER AC POWER
CONNECTION UTILITY BOX TO A 15A 120VAC RATED 1 POLE FEEDER BREAKER
INSTALLED IN LOADCENTER.
FOR ENCLOSURES WITH AN EXTERNAL LOADCENTER, CONNECT THE POWER CABLE
DIRECTLY TO A 15A 120VAC RATED 1 POLE FEEDER BREAKER INSTALLED IN LOADCENTER.
INTERNAL AC LOADCENTER
UTLIITY BOX
©
