NAME DATE
APPROVED
CHECKED
DRAWN
DESIGN 2009/05
2009/05
2009/06
2009/06 JK
SDW
JK
ME
THESE DESIGNS AND SPECIFICATIONS ARE CONFIDENTIAL, REMAIN
THE PROPERTY OF ARGUS TECHNOLOGIES LTD., AND SHALL NOT
BE COPIED OR USED WITHOUT ITS WRITTEN CONSENT.
TYPE
D2
1
0.5
0.05
0.5
[ 0.040]
[ 0.020]
[ 0.002]
UNITS: mm [in]
X [X.X]
X.X [X.XX]
X.XX [X.XXX]
ANGULAR: SCALE:
OF
2009 ARGUS TECHNOLOGIES
TITLE:
ISSUE
DATE
SIZE
B
DWG NO.

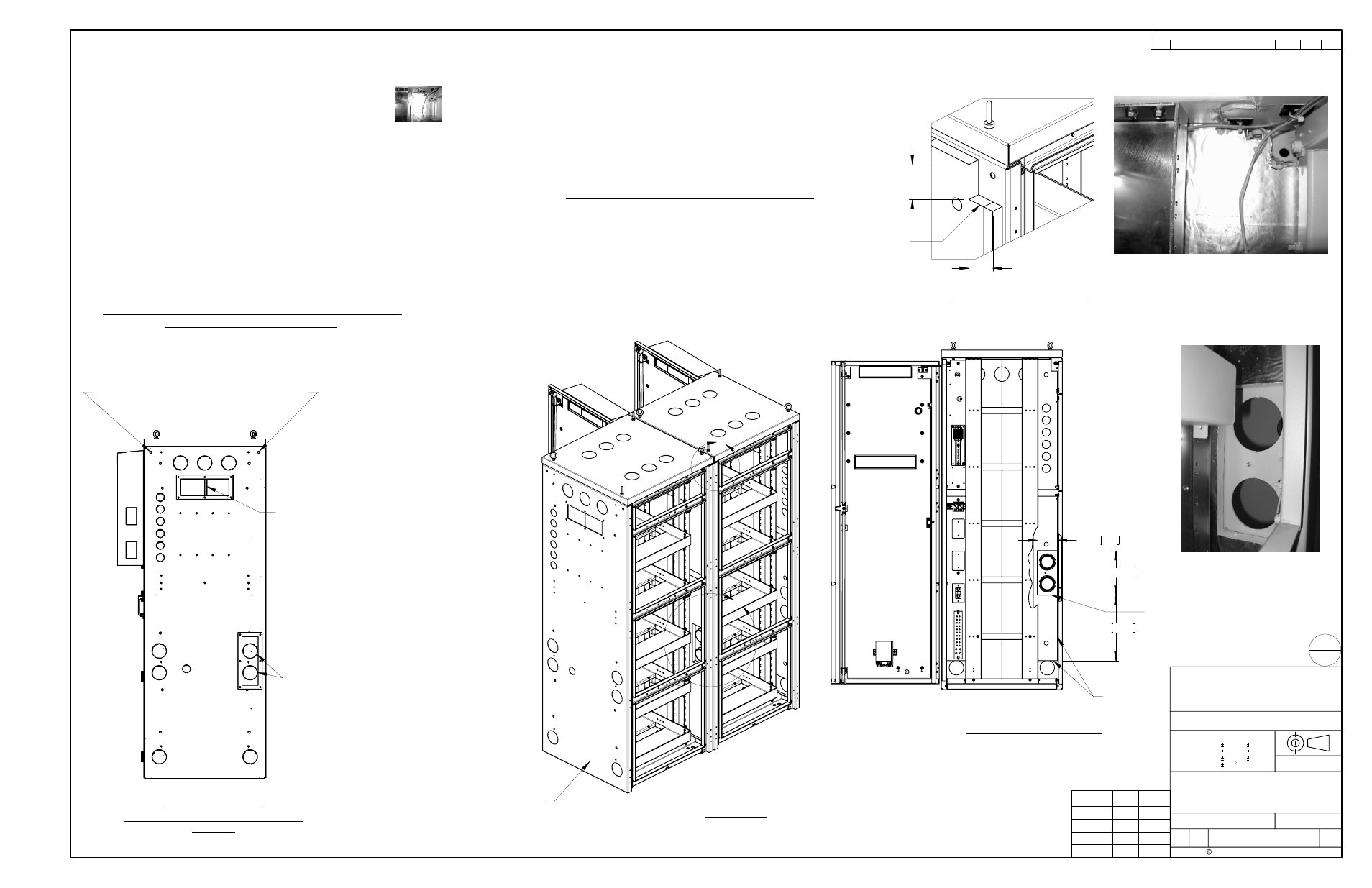

CUSTOMER CONNECTION,
KIT, INTRFC, w/ CBL SET,
BATT TO BATT, Te4x
747-603-08
SHEET
NTS
REV
P/A
1 7
ITEM
QTY
DESCRIPTION LTR APPD DATE DWN
REVISIONS
CHKD
REMOVE TOP CORNER KNOCKOUTS ON FACING
SIDES OF BOTH ENCLOSURES (2 PER SIDE)
TO ACCEPT BOLTING HARDWARE
REMOVE SIDE ACCESS CABLE KNOCKOUTS ON
FACING SIDES OF BOTH ENCLOSURES. INSTALL
SEALING GASKET (ITEM 6) AROUND K.O. OPENINGS
ON SIDE OF EXISTING BATTERY ENCLOSURE.
REMOVE THE TOP ACCESS BLANK PANEL ON EXISTING
BATTERY ENCLOSURE. INSTALL REPLACEMENT PANEL
(ITEM 5) WITH 4 MOUNTING SCREWS (ITEM 17). MOUNT
PANEL ON INSIDE POSITIONED TOWARDS THE FRONT
WITH OPENING FOR CABLES AT REAR. INSTALL SEALING
GASKET (ITEM 6) AROUND TOP ACCESS OPENING ON
SIDE OF EXISTING BATTERY ENCLOSURE. REMOVE TOP
ACCESS PANEL FROM LEFT SIDE OF 2nd BATTERY
ENCLOSURE.
RIGHT SIDE VIEW
EXISTING BATTERY ENCLOSURE
SHOWN
B
A
REAR VIEW
ALIGN 2nd Te40 BATTERY ENCLOSURE WITH
INSTALLED Te40 BATTERY ENCLOSURE
EXISTING Te40 ENCLOSURE
2nd Te40 ENCLOSURE
75 [3.0]
64 [2.5]
DETAIL A - INSIDE VIEW
CUT AWAY A SMALL SECTION FROM
INNER WALL INSULATION IN THE UPPER
CORNERS OF BOTH ENCLOSURE AS SHOWN
FOR 3/8" HARDWARE INSTALLATION.
ENCLOSURE SETUP & PREPARATION:
INSULATION CUT DETAIL
127 5.0
279 11.0
413 16.3
EXISTING
CUT LINES
CUT AWAY A SMALL SECTION OF INNER
WALL INSULATION IN AREA OF SIDE
ACCESS CABLE KNOCKOUTS ON
BOTH ENCLOSURES AS SHOWN FOR
CHASE NIPPLE INSTALLATION.
INSULATION CUT DETAIL
DETAIL B - INSIDE VIEW
SIDE KNOCKOUT REMOVAL, PANEL CHANGE
& GASKET INSTALLATION:
