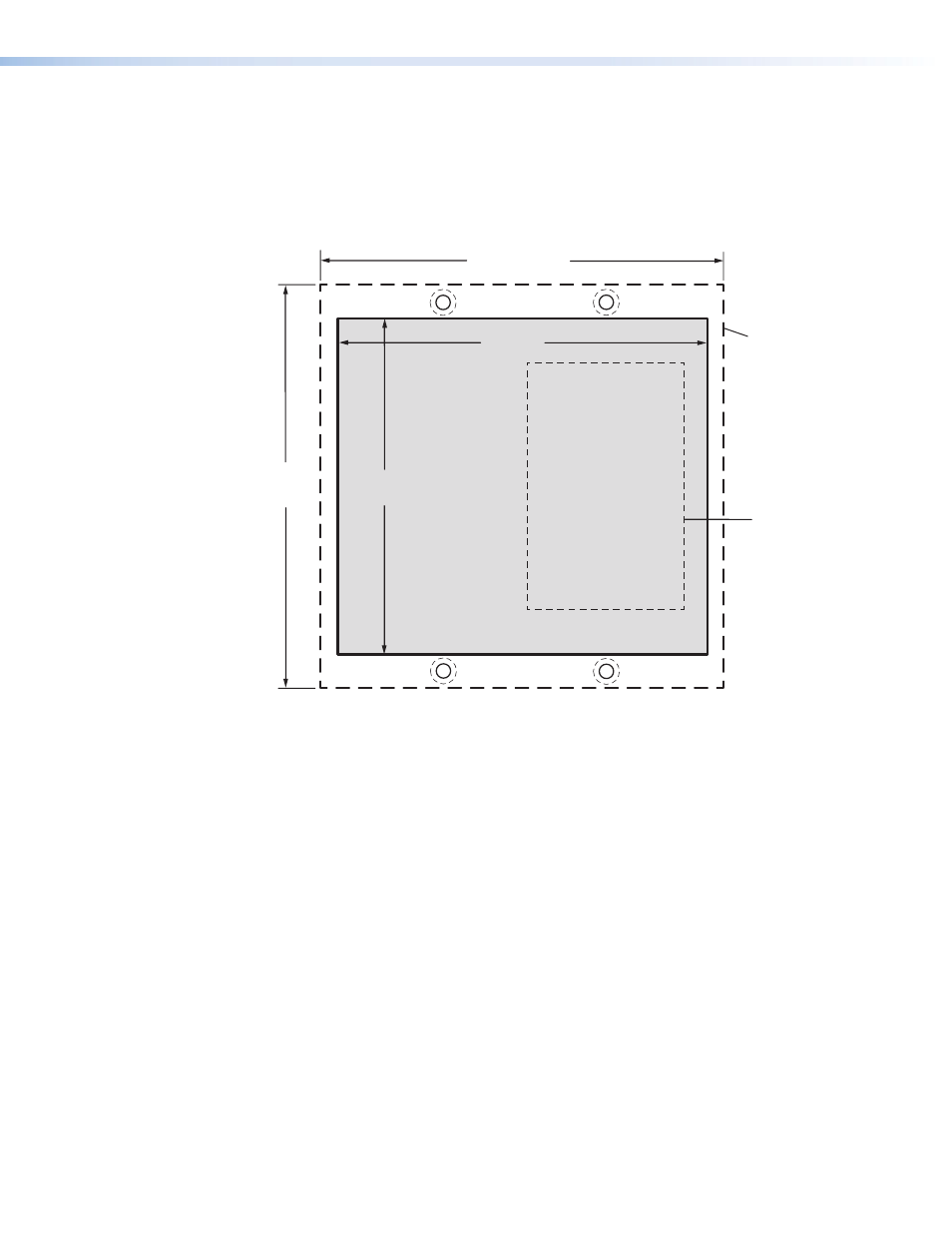

MLC 52 IR VC and MLC 52 RS VC Cutout Template for the Two-gang Decora
Mud Ring
To mount the MLC 52 VC to a two-gang plastic Decora mud ring, use the dimensions
shown below to cut the hole in the mounting surface.
MLC 52 VC
(Front View)
Cut-Out Template for
4.50" (11.43 cm)
Top Panel
3.88"
(9.83 cm)
3.97"
(10.03 cm)
Location of MLC 52
4.50"
(11.43 cm)
SURFACE CUT-OUT AREA
FOR MUD RING
Figure 55.
MLC 52 IR VC and MLC 52 RS VC Cutout Template for the Two-gang
Decora Mud Ring
MLC 52 MediaLink Controllers • Reference Information
65
