MLC RS EU VC with MPA
POWER
12V 3A MAX
OUTPUT 4/8 OHMS
INPUTS
L
R
L
R
REMOTE
VOL/MUTE 10V 50m A
L
MP A 152
R
C US
LISTED 17T T AUDIO/VIDE
O
APP ARA TUS
CLASS 2 WIRING
DO NOT GROUND OR SHOR
T
SPEAKER OUTPUTS!
ML C 5 2
OFF
PC
DOC
CAM
DVD
ON
VIDEO
Projector
PC with
Audio
DVD/VCR Combo
S-video and
Composite Video
with Audio
Audio Output
Extron
MPA 152
Mini Power Amplifier
Volume
Control
Extron
MLC 52 RS VC EU
Basic MediaLink Controller
with IR, RS-232 and
Volume Knob
RS-232
Projector
Control
Extron
SI 3
Surface-mount
Speakers

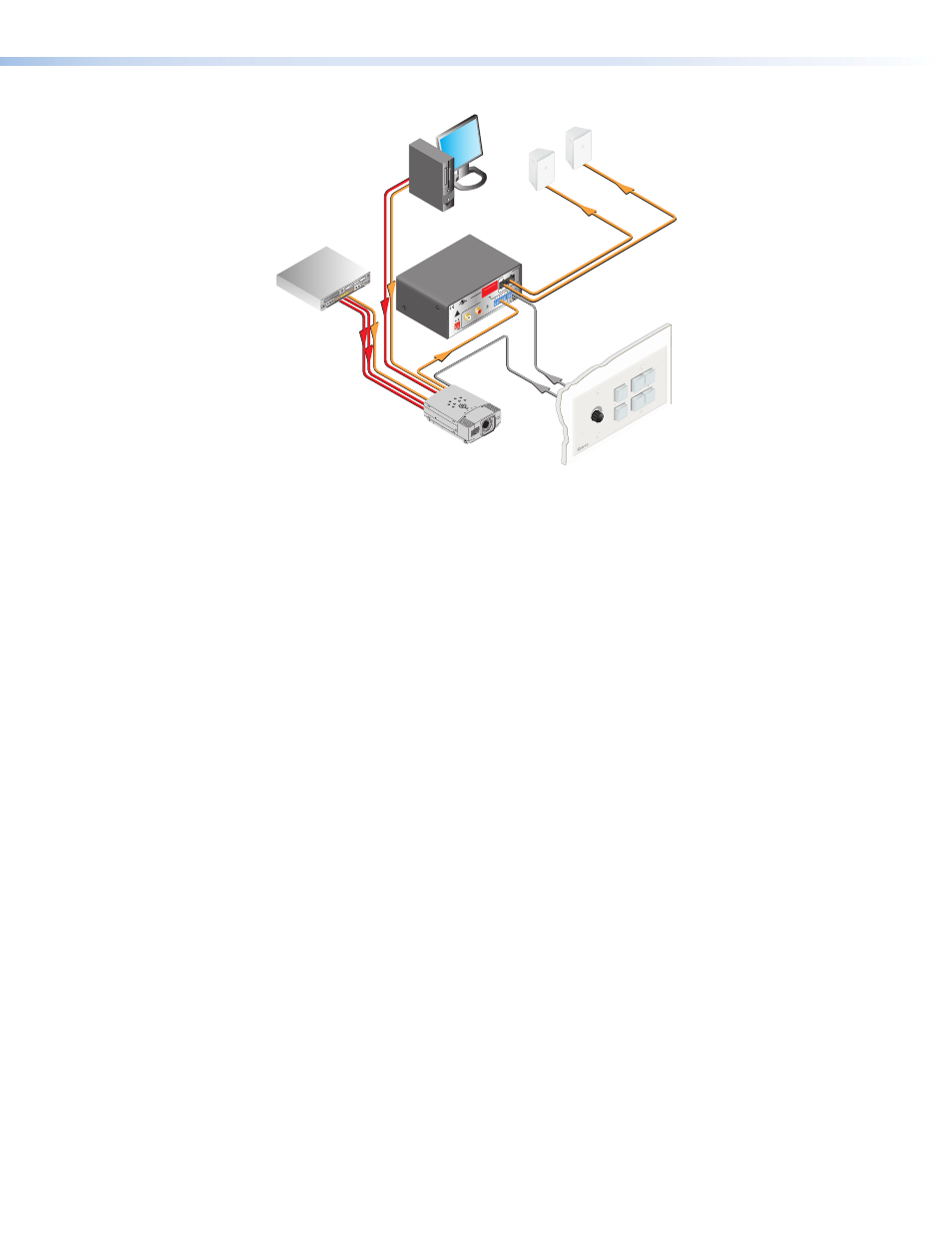

Figure 19. Application Diagram of an MLC 52 RS EU VC with an MPA Series
Power Amplifier
Requirements for the MLC 52 VC
To set up a system that contains an MLC 52 VC model and an Extron MPA power
amplifier, an MP Series preamplifier, or a PoleVault PVS switcher, you must ensure that the
following conditions are met:
• The projector must have dedicated video and audio inputs for each source used in
the system.
• The projector must have a switched audio output. On most projectors, this connector
is labeled as “Monitor Output” or “Audio Output” (see
figure 20 on the next page).
With a switched audio output, the projector outputs the audio from the selected video
source.
• The system must incorporate an Extron device.
MLC 52 MediaLink Controllers • Installation and Configuration 22
