Mounting the mlc to a wall or furniture, Figure_mounting us mlc to decora – Extron Electronics MLC 52 Series User Guide User Manual
Page 32

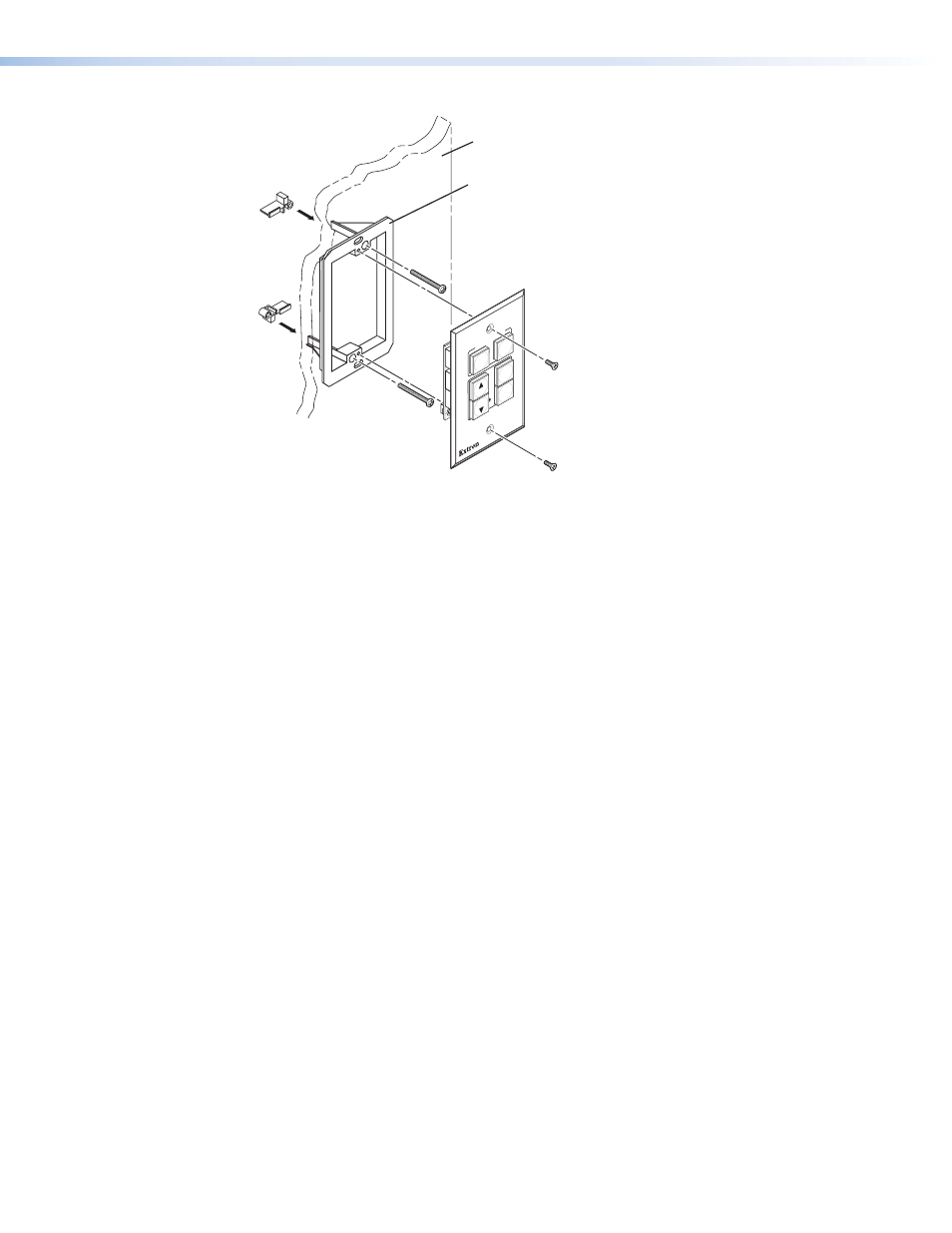

Figure_Mounting US MLC to Decora
MLC 52
PR
OJECT
OR
OFF
ON
VIDEO
VOL
VOL
PC
MLC 52
Wall
Wall Mounting
Bracket (Mud Ring)
Figure 22.
Mounting an MLC 52 to a Decora Mounting Bracket
Mounting the MLC to a Wall or Furniture
1.
With all cables attached to the MLC and power disconnected at the source, insert the
MLC into the wall or furniture.
2.
Fasten the MLC and faceplate directly to the furniture or wall using wood screws.
MLC 52 MediaLink Controllers • Installation and Configuration
26
