MLC 52 VC models with a type A remote control
If you are using an MLC 52 IR VC or an MLC 52 RS VC model with a type A remote
control, program the buttons using the following scheme:
1 2 3
4 5 6
7 8
0
9
VIDEO
S-Video RGB1
RGB2
INPUTS
SET
UP
PLAY
PRG+
PRG–
POWER
REW
TV
INPUT
PAUSE FF
STOP
DIR A DIR B
SLEEP TV
MUTE
TIME/
LEVEL– DLY/CNT/REAR
TIME/
LEVEL+
UP
LEFT RIGHT
DOWN
SKIP/CHAPTER
+100
– +
DECK
A/B
EFFECT
ON/OFF
REC/
PAUSE
INPUT SELECT
CD TAPE TUNER
PHONO
TV/DBS
TEST
DVD/LD VCR
ENT DISP
Projector Remote Type A
MLC 52
DISPLAY
ON
PC
OFF
DVD
VCR
VOLUME
Command 1: Video IR
command
Command 1: S-video
IR command
Command 1: RGB 1 IR
command
(If applicable)
Command 1:
RGB 2 IR
command. The button also must
be placed in the input switch
mode and labeled appropriately.

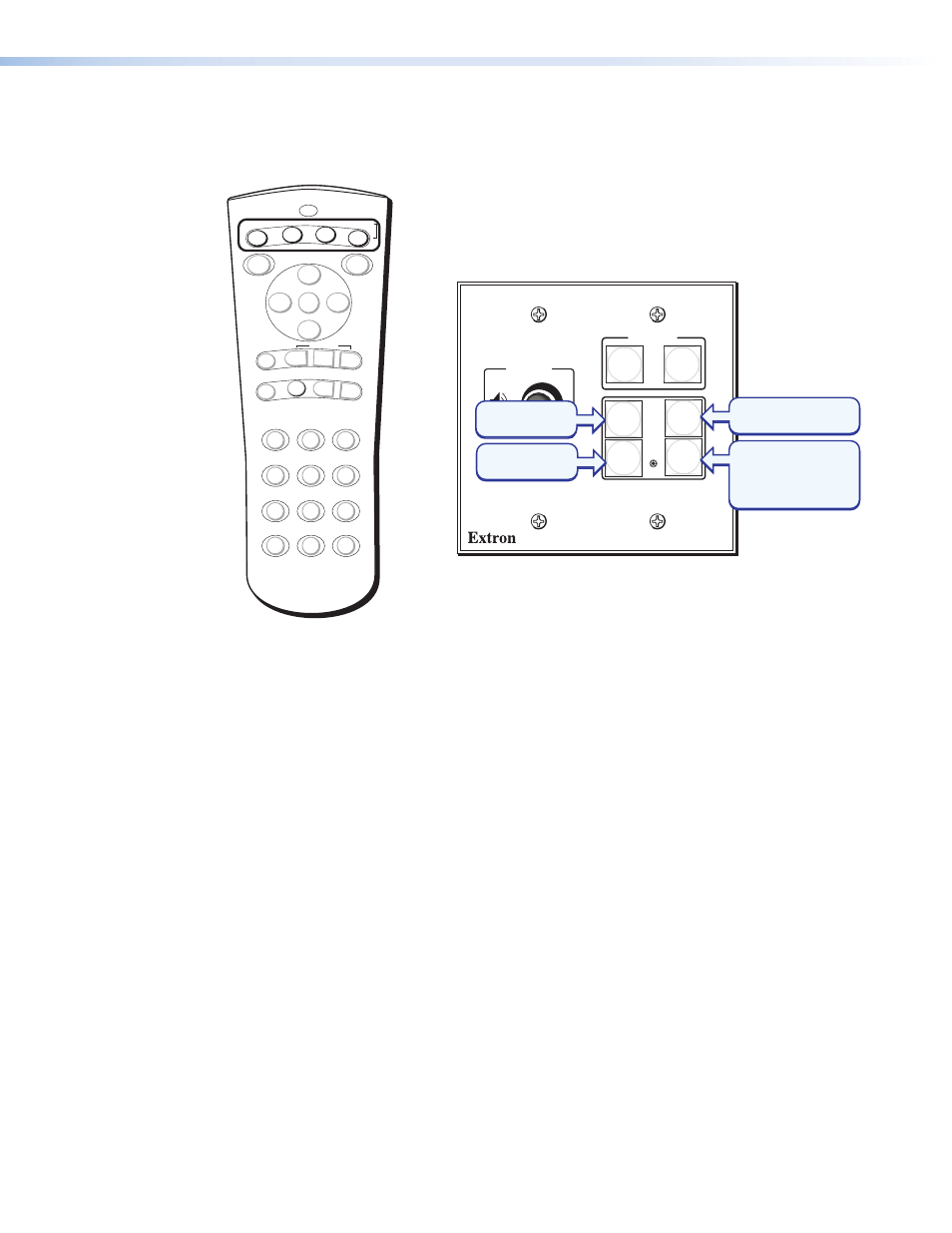

Figure 32. Programming MLC 52 IR VC and MLC 52 RS VC Input Selection
Buttons from a Projector Remote Control Type A
Projector remote control type B (application 1)
This remote control has only two input buttons — one for the RGB inputs and one for the
S-video and composite video inputs. Each of these buttons contains one command that
causes the projector to toggle between inputs.
• Program the command from the Computer or RGB button of the projector remote
control onto the PC button of the MLC.
• Program the command that is on the Video button of the projector remote control
onto the Video button of the MLC.
The MLC now has one command each on its PC and Video buttons. You must still
repeatedly press an input button to switch between selected sources; however, the button
actually contains only one command (a projector input toggle command).
