1 2 3
4 5 6
7 8
0
9
VIDEO S-Video RGB1 RGB2
INPUTS
SET
UP
PLAY
PRG+
PRG–
POWER
REW
TV
INPUT
PAUSE FF
STOP
DIR A DIR B
SLEEP TV MUTE
TIME/ LEVEL– DLY/CNT/REAR TIME/ LEVEL+
UP
LEFT RIGHT
DOWN
SKIP/CHAPTER
+100
– +
DECK
A/B
EFFECT ON/OFF
REC/ PAUSE
INPUT SELECT
CD TAPE TUNER
PHONO
TV/DBS
TEST
DVD/LD VCR
ENT DISP
Projector Remote Type A
MLC 52
DISPLAY
ON
PC
OFF
DVD
VCR
VOLUME
Command 1: RGB 1 IR Command “A”
Command 2: RGB 1 IR Command “B”
Optional:
Command 1:
RGB 2 IR Command “A”
Command 2: RGB 2 IR Command “B”
Label the button button accordingly and
place it in input switch mode.
Command 1: S-video 2 IR Command “A”
Command 2: S-video 2 IR Command “B”
Command 1: Video 1 IR Command “A”
Command 2: Video 1 IR Command “B”

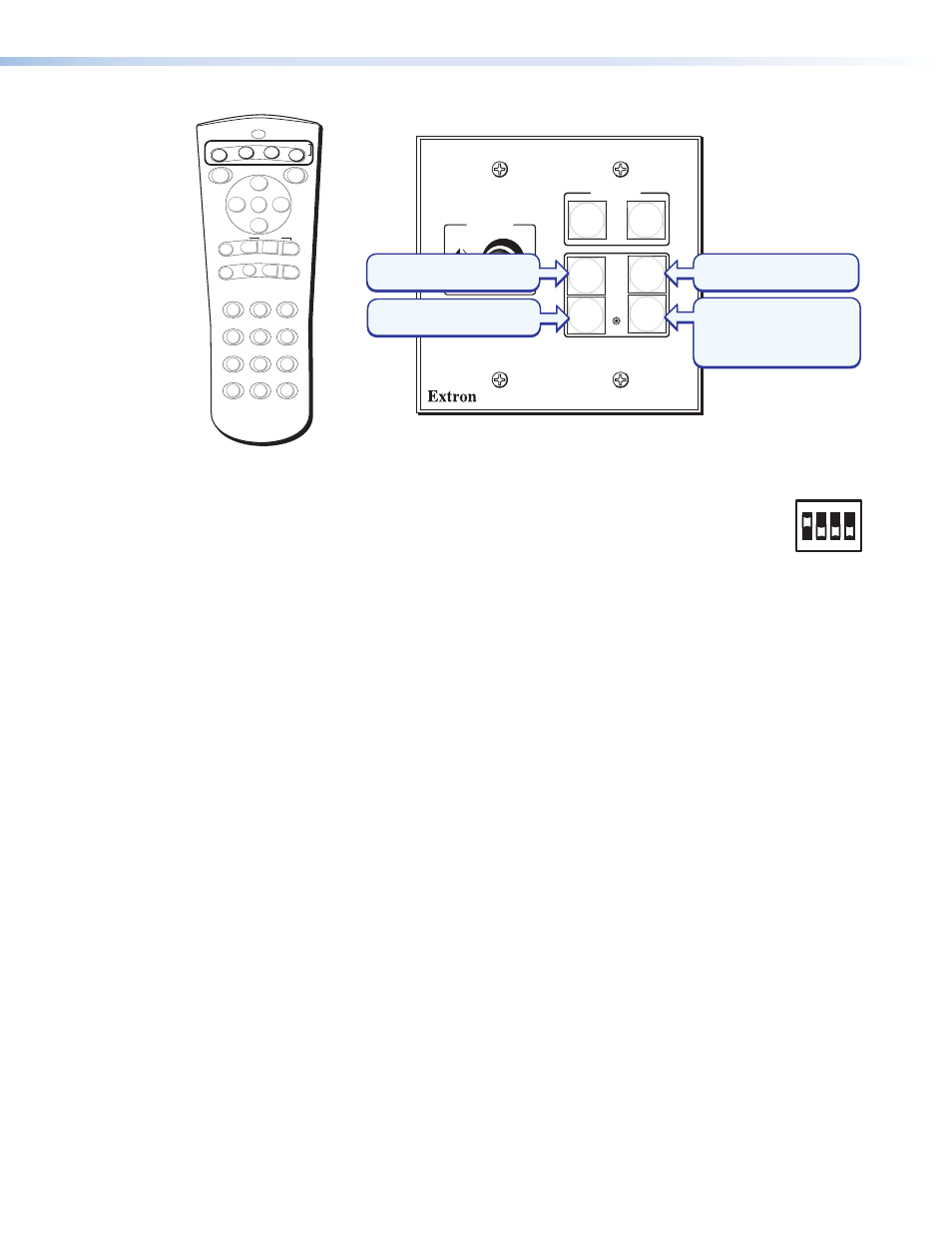

Figure 38. Programming an MLC 52 VC with a Projector Remote Control Type A
1. Place the rear panel configuration DIP switch 1 in the On (up) position to
enter learning mode. (If the MLC is already in learning mode, proceed to
step 2.)
2. Using IR learning, program command “A” from the Video input selection button on
the projector remote control into memory block 1 of the Video or blank button (for VC
models) as follows:
a. Press the Video button on the MLC front panel. The button blinks, indicating
that the MLC is ready to learn the command. On the rear panel, the bottom IR
learning LED flashes.
b. Within 5 seconds (while the Video button on the MLC 52 is blinking), press the
Video or blank button on the projector remote control. The MLC has learned
command “A” for video.
3. Program the input selection command “A” from the S-video input selection button
on the projector remote control into memory block 2 of the MLC 52 Video or blank
button as follows:
a. Press the Video or blank button on the MLC front panel. The button blinks,
indicating that the MLC is ready to learn the command. On the rear panel, the
second LED from the bottom flashes.
b. Within 5 seconds (while the Video or blank button on the MLC 52 is blinking),
press the S-video button on the projector remote control. The MLC learns
command “A” for S-video.
4. Program the input selection command “B” from the Video selection button on the
projector remote control into memory block 3 of the MLC 52 Video or blank button as
follows:
a. Press the Video or blank button on the MLC front panel. The button blinks,
indicating that the MLC is ready to learn the command. On the rear panel, the
third LED from the bottom flashes.
b. Within 5 seconds (while the Video or blank button on the MLC 52 is blinking),
press the Video button on the projector remote control. The MLC learns
command “B” for video.
Transmitting MLC
Receiving MLC
1
ON
2 3 4
1
ON
2 3 4
1
ON
2 3 4
