SIZE
ENTER MENU
CENTER CONT/ BRT COL/ TINT
ASPECT
RATIO
VIDEO
MUTE
AUDIO
MUTE
A/V
MUTE
SHARP PHASE
VIDEO COMPUTER
MLC 52
DISPLAY
ON
PC
OFF
DVD
VCR
VOLUME
Command 1: Computer IR Command “A”
Command 2: Computer IR Command “B”
Leave blank and do not program. The
button should be in single switch mode.
Leave blank and do not program. The
button should be in single switch mode. Command 1: Video 1 IR Command “A”
Command 2: Video 2 IR Command “B”
Label the button accordingly and place it in
input switch mode.
Projector Remote Type B

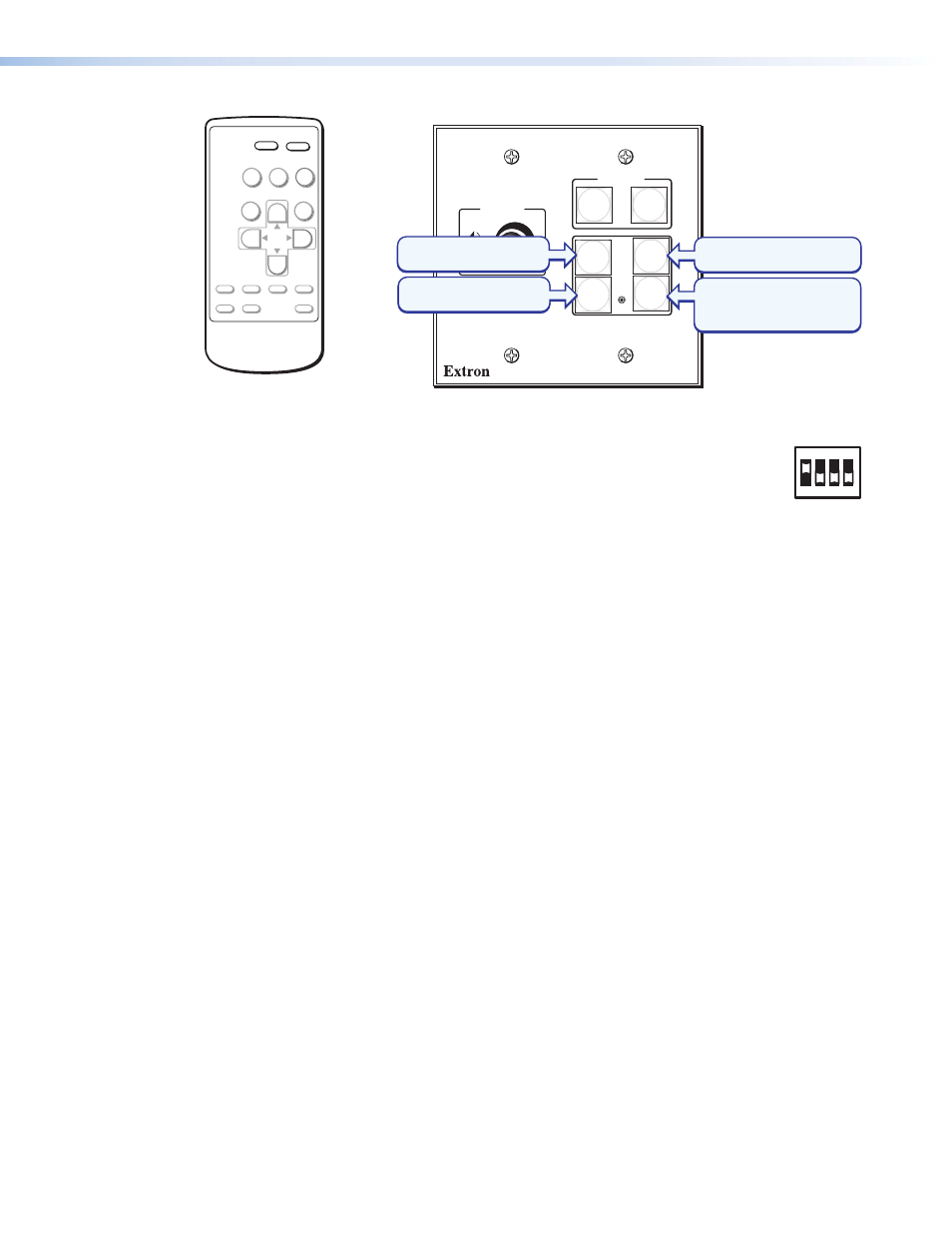

Figure 40. Programming an MLC 52 VC with a Projector Remote Control Type B
1. Place the rear panel configuration DIP switch 1 in the On (up) position to
enable learning mode. (If the MLC is already in learning mode, proceed to
step 2.)
2. Using IR learning, program command “A” from the Video input selection button on the
projector remote control into memory block 1 of the MLC 52 Video or blank (for VC
models) button as follows:
a. Press the Video or blank button on the MLC front panel. The button blinks,
indicating that the MLC is ready to learn the command. On the rear panel, the
bottom IR learning LED flashes.
b. Within 5 seconds (while the Video or blank button on the MLC 52 is blinking),
press the Video button on the projector remote control. The MLC learns
command “A” for video.
3. Program the input selection command “B” from the Video input selection button
on the projector remote control into memory block 2 of the MLC 52 Video or blank
button as follows:
a. Press the Video or blank button on the MLC front panel. The button blinks,
indicating that the MLC is ready to learn the command. On the rear panel, the
second LED from the bottom flashes.
b. Within 5 seconds (while the Video or blank button on the MLC 52 is blinking),
press the Video button on the projector remote control. The MLC learns
command “B” for video.
4. When finished programming the MLC 52 buttons, return configuration DIP switch 1 to
its Off (down) position.
5. Test the system.
Transmitting MLC
Receiving MLC
1
ON
2 3 4
1
ON
2 3 4
1
ON
2 3 4
MLC 52 MediaLink Controllers • Special Applications 44
