Page 56
3.
On the
Select
a
Comm
Port
tab, select a COM port from the drop-down menu,
or
On the
Emulation
Mode
tab, select one of the following radio buttons:
•
Start
New
Configuration
to create a new configuration in emulation mode
•
Load
existing
configuration
from
to open an existing configuration. If you
select this radio button, do the following:
a.
Click the
Browse
button.
b.
In the Import configuration from... window, locate the configuration file that
you want to open in emulation mode (configuration files have a
.mlk
ending)
and double-click on it.
The path to the selected configuration is displayed in the
Browse
field on the
Connection window.
See the MLC 52/DVCM 50 Configuration Program help file for information on
using emulation mode.
4.
Click
OK
. The MLC 52/DVCM 50 Configuration Program window opens.

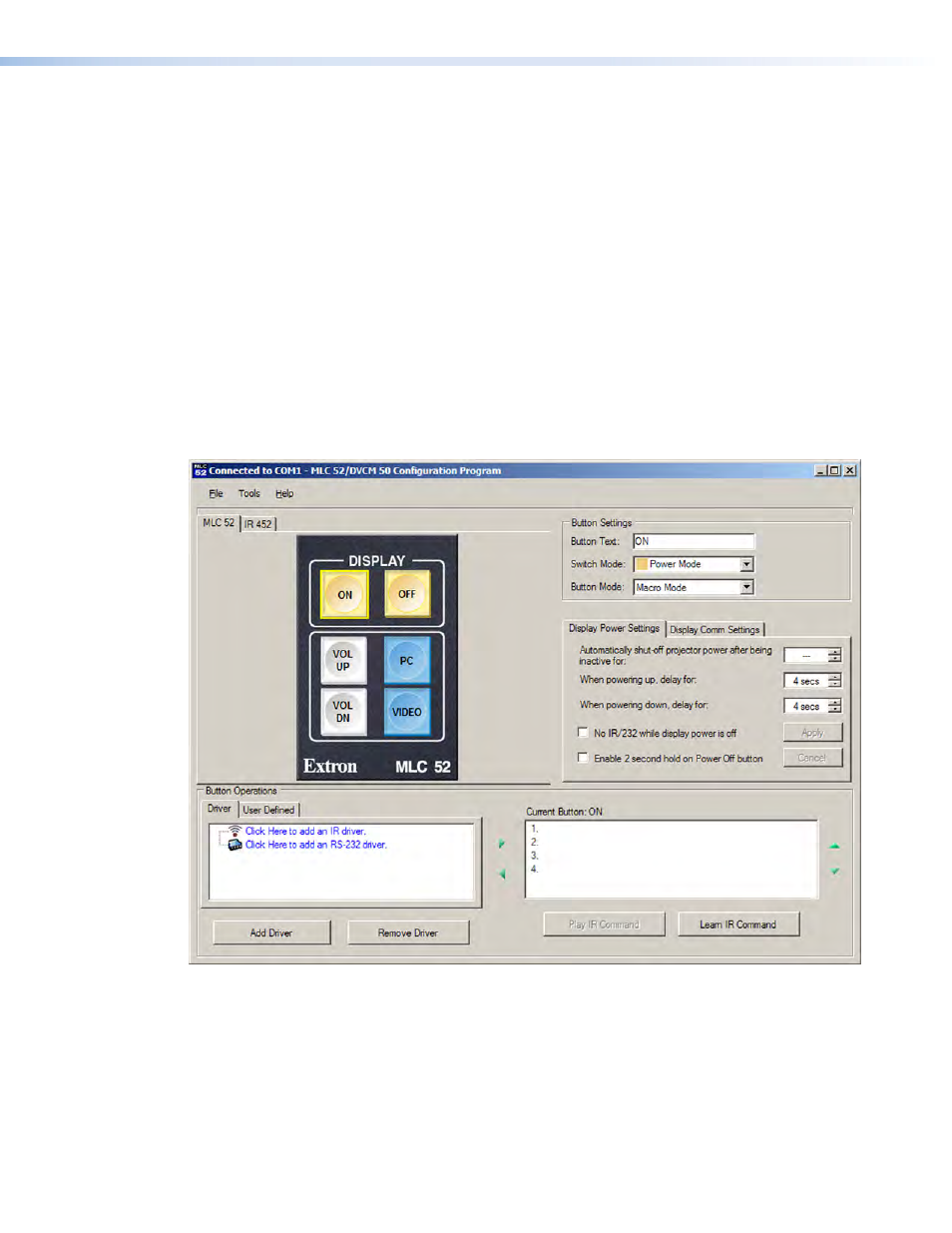

Figure 47.
MLC 52/DVCM 50 Configuration Program Window
For an explanation of all procedures for creating MLC 52 configurations, see the
configuration program help file. To access the help, select
Contents
from the
Help
menu
on the MLC 52 window, or press
MLC 52 MediaLink Controllers • Serial Communication
50
