4. When the data transfer is complete, do either of the following:
• If you want to repeat the transfer process to configure another MLC 52, repeat
steps
2 and 3 for the unit that is to be configured. Press any button on the donor
unit. The transfer process restarts.
• If you are finished performing data transfers, return configuration switch 2 on the
receiving MLC to the Off (down) position. Press any button on both units to return
them to the state they were in before the transfer. All buttons dim except for those
that were bright previously. Reinitialize the receiving unit by pressing any of its
front panel buttons.
Configuring Using IR Learning
You can also configure the MLC 52 by using IR Learning, which does not require
configuration software. By this method, you can program the functions that are on the
remote control for your display device onto the MLC front panel buttons. This procedure
must be performed before the MLC is mounted on a wall or furniture, so that the IR
Transmit/Receive LEDs are accessible. If the MLC is already installed, remove it from the
mounting surface.
To program the MLC via IR Learning:
1. Apply power to the MLC 52.
2. On the rear panel, set configuration switch 1 to On (up). All front panel
buttons should be dimly lit.
3. Press the button on the MLC that will store the IR code that you want the MLC to
learn. The following takes place on the MLC:
• The front panel button that you pressed begins to blink, indicating that it is ready
to be programmed. While the button is blinking (5 seconds), you can program it
with the desired command. If no IR command is entered within 5 seconds, the
button stops blinking.
• On the rear panel, the IR learning LED for the next button memory block available
for programming begins to blink (see
IR learning indicators , f under “Rear
Panel and Cable Connections” on page 8, for more information on the IR learning
LEDs).
• The LED that indicates how many commands have been programmed onto the
button illuminates and remains lit.
1
2
3
4
E
1
2
3
4
E
1
2
3
4
E
1
2
3
4
E
LED Off
LED Blinking
LED On
Command 1 is ready
to be learned. Command 2 is ready
to be learned.
Command 1 was learned. Command 3 is ready
to be learned.
Command 2 was learned.
Command 1 was learned. Command 4 is ready
to be learned.
Command 3 was learned.
Command 2 was learned.
Command 1 was learned.

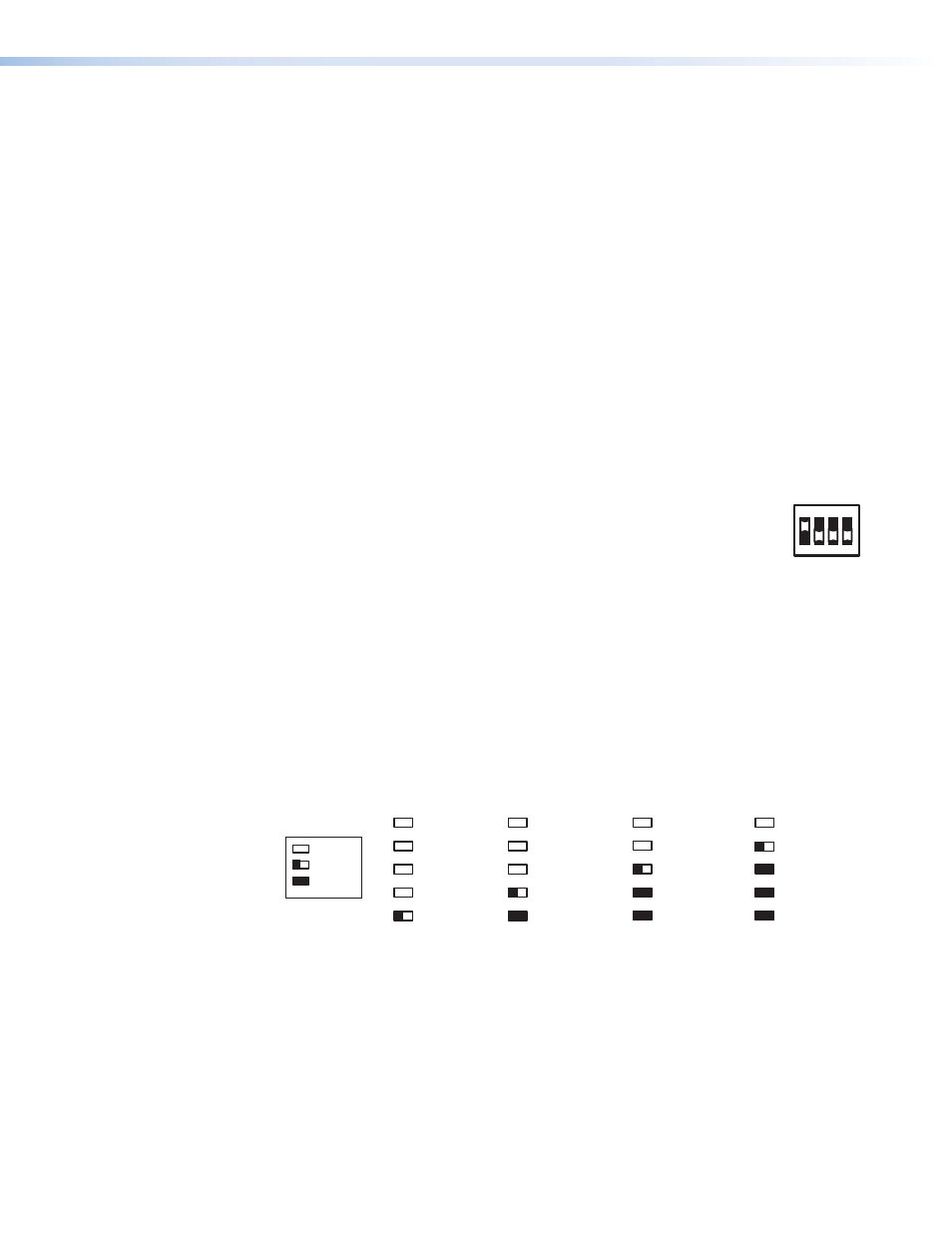

Figure 17. Activation of LEDs During Button Configuration
Transmitting MLC
Receiving MLC
1
ON
2 3 4
1
ON
2 3 4
1
ON
2 3 4
MLC 52 MediaLink Controllers • Installation and Configuration 18
