MLC 52 IR and MLC 52 RS Cutout Template for the One-gang Decora Mud
Ring

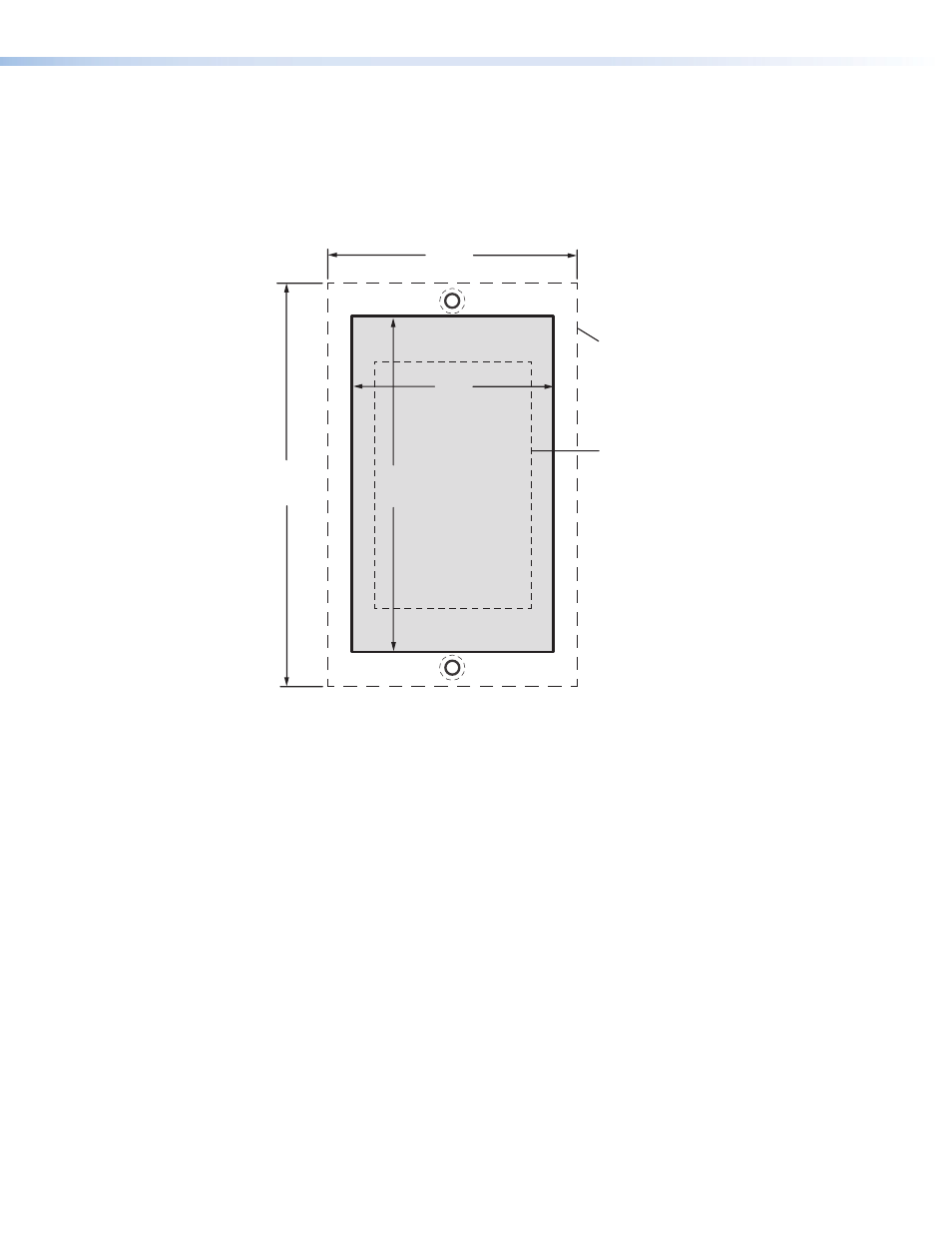

To mount the MLC 52 to a one-gang plastic Decora mud ring, use the dimensions shown
below to cut the hole in the mounting surface.
MLC 52
(Front View)
Cut-Out Template for
4.50"
(11.43 cm)
Top Panel
SURFACE
CUT-OUT AREA
FOR MUD RING
2.79"
(7.09 cm)
2.25"
(5.72 cm)
3.75"
(9.53 cm)
Location of MLC 52
Figure 54.
MLC 52 IR and MLC 52 RS Cutout Template for the One-gang Decora
Mud Ring
MLC 52 MediaLink Controllers • Reference Information
64
