General
Power supply
MLC 64 RS D ........................... External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12.0 watts
Remote volume control ............ 10 VDC, supplied by the Extron device being controlled
Power input requirements
MLC 64 RS D ........................... 12 VDC, 0.4 A, max.
Remote volume control ............ Unmute mode: 0.2 watts, 18 mA, 10 VDC
Mute mode: 0.4 watts, 42 mA, 10 VDC
Temperature/humidity .................... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling .......................................... Convection, no vents
Mounting
Rack mount ............................. No
Furniture or wall mount ........... Mounts in a standard 2 gang US electrical junction box (1.50" depth) or with
included mud ring.
Enclosure type ................................ Plastic
Enclosure dimensions
Faceplate ................................. Fits the opening in a 2 gang Decora style wallplate.
Devices .................................... 4.2" H x 3.6" W x 2.5" D or 1.9" D*
Depth includes connectors and buttons. Allow enough depth in the junction
box for device plus cable clearance.
*Depth including the knob
Rx
Tx
GR
OU
ND
Tx/
IR
CO
MM
ON
1
1
2
HOST/
CONFIG
RS-232
IR/
S
DIGITA
L
INPUT
Tx
PW
R
12
V
0.4 A MAX
RELAYS
N/
O
GR
OU
ND
GR
OU
ND
GR
OU
ND
GR
OUN
D
+12
VD
C
3.61"
(9.17 cm)
4.19"
(10.64 cm)
1.74"
(4.4 cm)

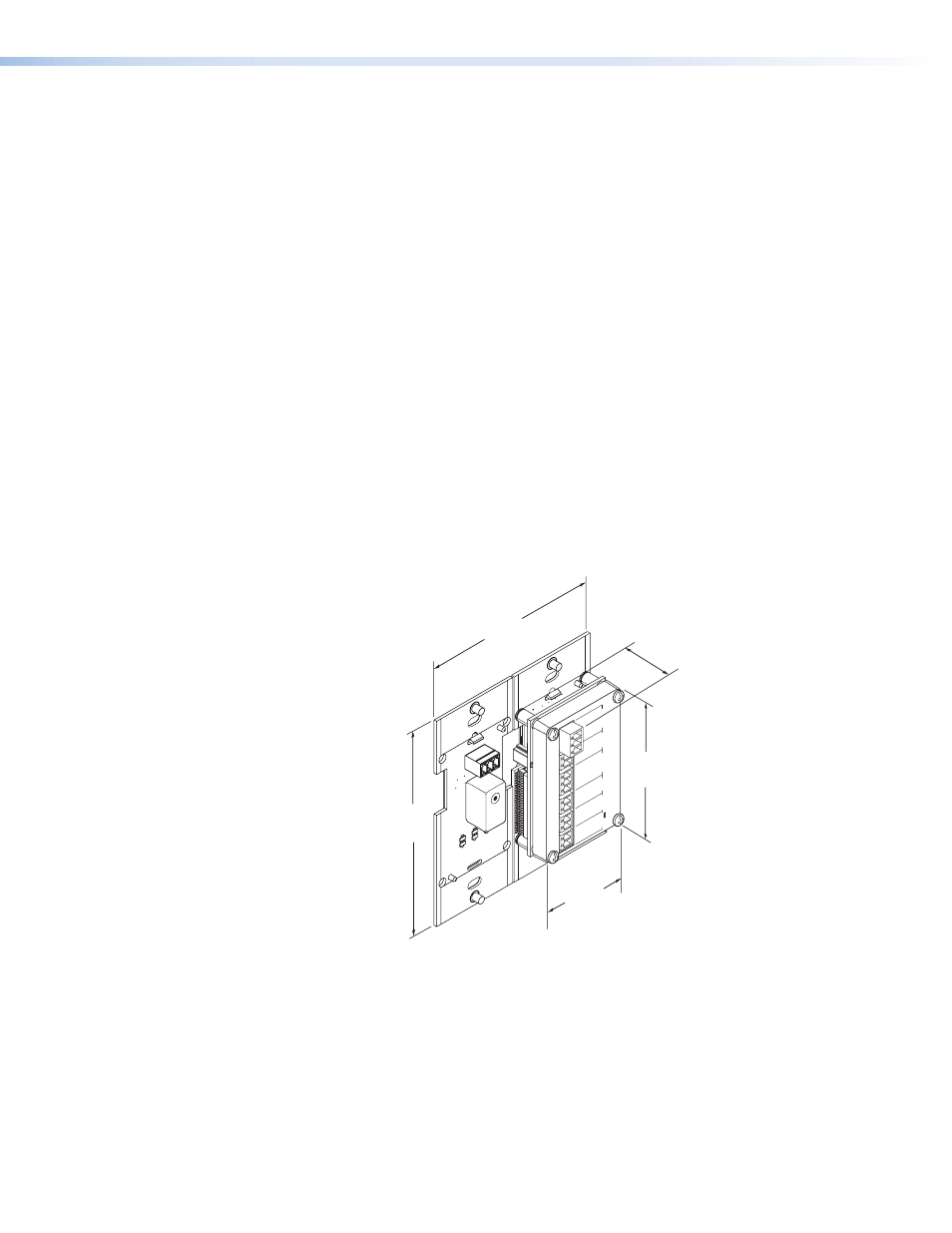

MLC 64 Rear
2.77”
(7.04 cm)
1.13"
(2.87 cm)
Product weight ............................... 1.1 lb (0.5 kg)
Shipping weight ............................. 3 lbs (2 kg)
Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety ...................................... CE, c-UL, UL
EMI/EMC ................................. CE, C-tick, FCC Class A, ICES, VCCI Class A
Accessibility ............................. Section 508 of the Rehabilitation Act (29 U.S.C. 794d)
