IR Learning
The IR learning transceiver sensor on the MLC front or left side panel can receive and
“learn” commands from the infrared remote controls of other devices via the MLC
configuration software. IR Learning enables you to create an IR driver file to control the
projector or input devices such as a VCR or DVD player. IR Learning of projector control
codes is necessary only if there is no driver available for your projector or if you need to
customize the driver.
The IR transceiver accepts infrared signals of 30 kHz to 60 kHz. Point the IR remote control

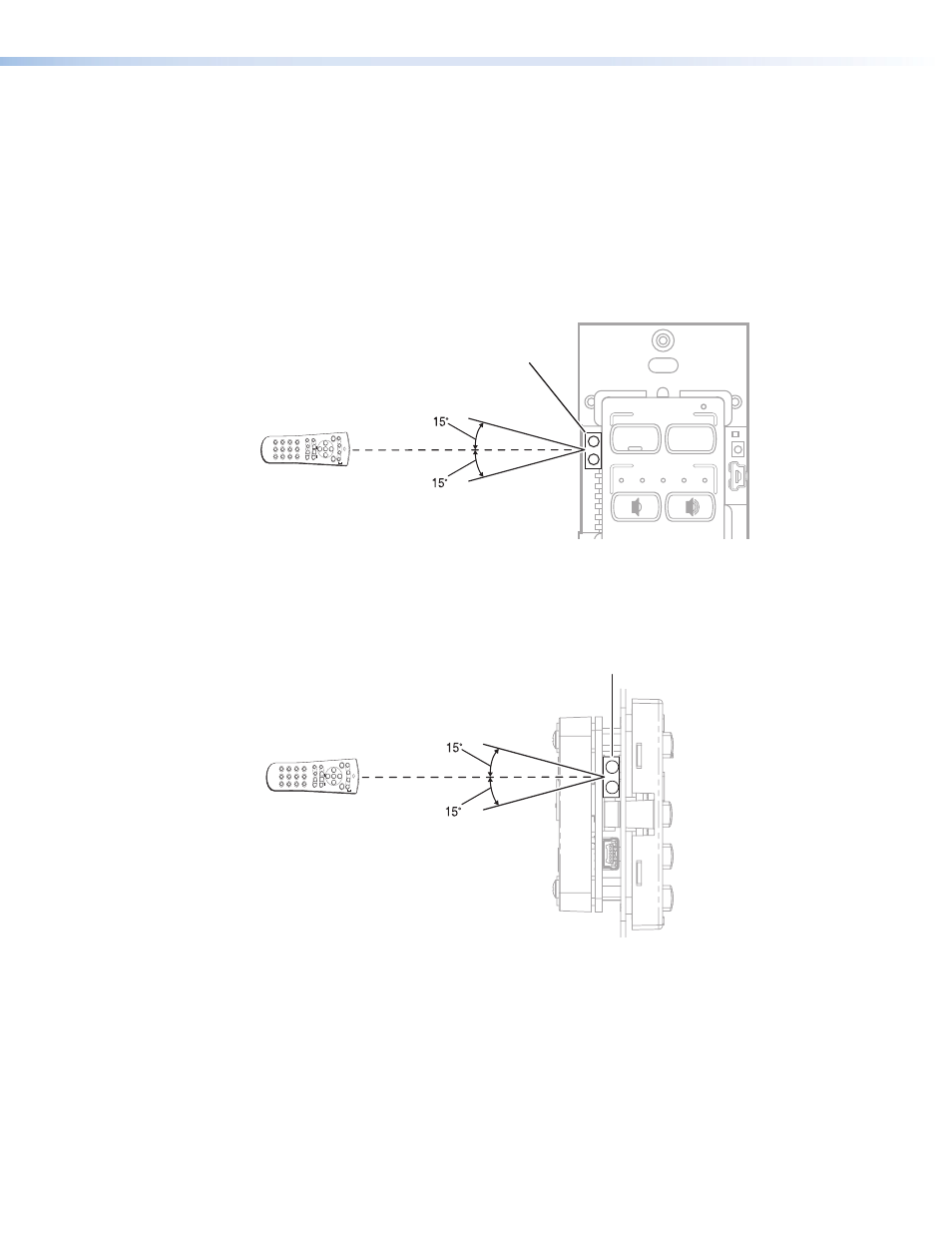

directly at the transceiver for best results. The diagrams below indicate the best distances
and angles at which to hold the remote control.
VOLUME
DISPLAY
Extron
PC VIDEO
LAPTOP MUTE
ON OFF
4"–14"
(10–36 cm)
1
2
3
4
5
6
7
8 0
9
VIDE O
S-Vide o
RGB 1
RGB 2 INPUTS
SET UP
PL
AY PRG+ PRG–
PO
WE
R
RE
W TV INPU T
PA
US
E
FF
ST
OP DIR A
D IR B
SLE EP
TV M U T E
TIME / LEVEL–
DL Y/CNT/REAR
TIME / LEVEL+ UP
LEF TR
IGHT DO
WN SKIP/CHAPTER +10
0 –+ D E C K A/ B
EFFECT ON/OF F
REC/ PA US
E
INPUT SELEC
T
CD
TAPE
TUNE R
PHONO TV/DB S
TEST DV
D/LD
VC
R
ENT
DIS
P
IR Learning
Transceiver
MLC 62 D Front Panel
Figure 35. IR Learning on an MLC D Model
4"–14"
(10–36 cm)
1
2
3
4
5
6
7
8 0
9
VIDE O
S-Vide o
RGB 1
RGB 2 INPUTS
SET UP
PL
AY PRG+ PRG–
PO
WE
R
RE
W TV INPU T
PA
US
E
FF
ST
OP DIR A
D IR B
SL
EE
P
TV M U T E
TIME / LEVEL–
DL Y/CNT/REAR
TIME / LEVEL+ UP
LEF TR
IGHT DO
WN SKIP/CHAPTER +10
0
–+ D E C K A/ B
EFFECT ON/OFF
REC/ PA US
E
INPUT SELEC
T
CD
TAPE
TUNE R
PHON O TV/DB S
TEST DV
D/LD
VC
R
ENT
DIS
P
MLC 62 RS EU
and MLC 62 RS MK
Left Side Panel
IR Learning Transceiver
Figure 36. IR Learning on an MLC 62 RS EU or MLC 62 RS MK
To set up the MLC for IR Learning, use the MLC configuration software (see the
configuration software help file for the procedures).
