The numbered callouts below apply to all the following MLC D front panel drawings.
a
Activity LED
b
Display power On
and Off Buttons
c
Volume buttons and
LEDs (MLC 62 models only)
d
Input Selection buttons
e
Reset LED
f
Reset button
g
USB configuration port
h
DIP switches
i
IR Learning sensor
j
On button identification nub
k
Mute button (MLC 64 only)
l
Volume control knob
MLC 64 RS VC D only)
MLC 62 D front panels
By default, the MLC 62 RS D has eight front panel buttons, and the MLC 62 IR D has six.
Both models also have indicator LEDs for volume and activity.
VOLUME
DISPLAY
ON
OFF
PC
VIDEO
LAPTOP
MUTE
1
2
Extron
4
10
3
VOLUME
Extron
DISPLAY
ON
OFF
VIDEO
PC
MLC 62 RS D
MLC 62 IR D
4

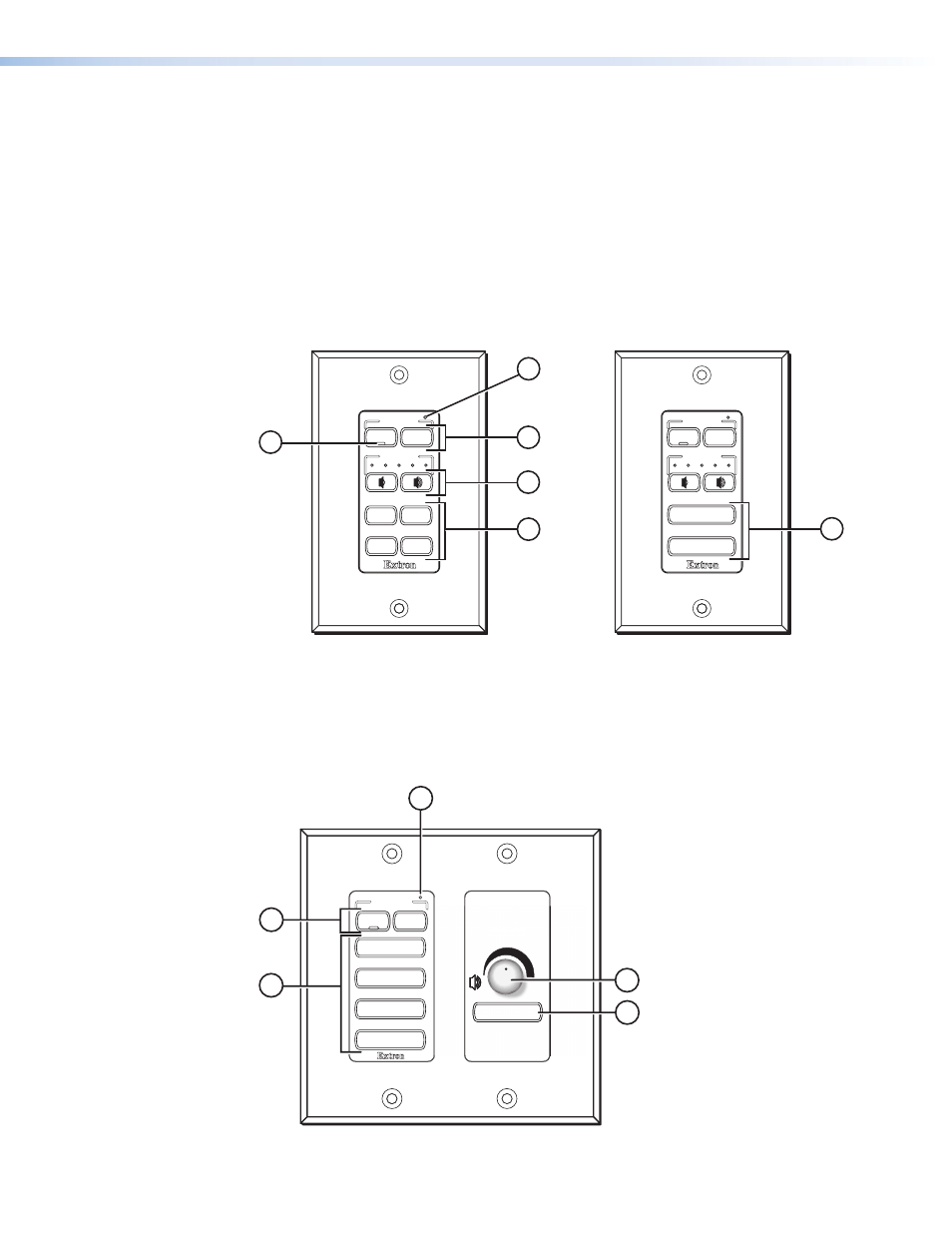

Figure 6.
MLC 62 RS D and MLC 62 IR D Front Panels
MLC 64 RS VC D front panel
The MLC 64 RS VC D front panel contains seven buttons, an Activity LED, and a volume
control knob.
VIDEO
AUX
LAPTOP
PC
Extron
DISPLAY
ON
OFF
MUTE
VOLUME
MUTE
VOLUME
11
12
1
2
4
Figure 7.
MLC 64 RS VC D Front Panel
MLC 60 Series MediaLink Controllers • Features, Installation, and Operation
