MLC 62 RS EU
MLC 62 RS EU
Faceplate ........................... Fits the opening in a 1-gang EU, fits a Jung AS 500 wallplate or other European
frame that accepts 55 mm x 55 mm modules.
Wall frame ......................... 3.2" H x 3.2" W x 0.4" D
8.1 cm H x 8.1 cm W x1.0 cm D
Device ................................ 2.2" H x 2.2" W x 1.5" D
(5.5 cm H x 5.5 cm W x 3.7 cm D)
Depth includes connectors and buttons. Allow enough depth in the junction
box for device plus cable clearance.)

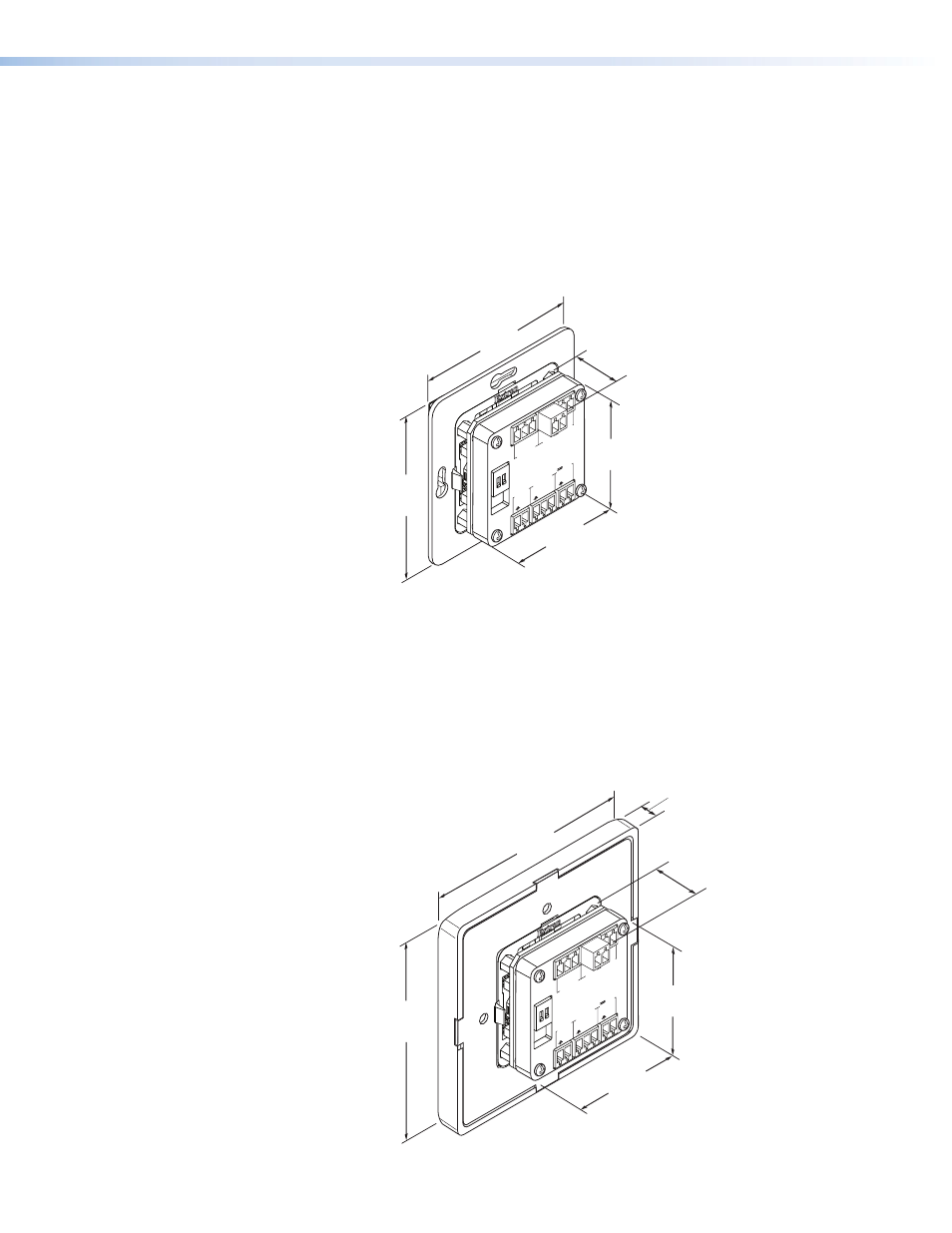

2.79”
(7.08 cm)
2.79”
(7.08 cm)
*1.83”
(4.64 cm)
1.85”
(4.69 cm)
MLC 62 EU Rear
* 2.02” (5.12 cm)
(including tabs)
RS -23
2
IR/ S
RE LAYS
N
/O
PW
R
12V
0.4A
m ax
HO
ST/
CONFIG
DIG
ITA
L
IN PUT
+
Tx
Rx
1
Tx
Tx/
IR 1
2
C
R
0.98"
(2.47 cm)
MLC 62 RS MK
Faceplate ........................... Fits the opening in a 1-gang Jung AS 500 wallplate or other European frame
that accepts 55 mm x 55 mm modules.)
Wall frame ......................... 3.4" H x 3.4" W x 0.4" D
8.6 cm H x 8.6 cm W x 1.1 cm D
Device ................................ 2.2" H x 2.2" W x 1.5" D
(5.5 cm H x 5.5 cm W x 3.7 cm D)
Depth includes connectors and buttons. Allow enough depth in the junction
box for device plus cable clearance.)
RS
-23 2
IR/ S
REL
AY S
N
/O
PWR
12V
0.4A m ax
HO
ST/
CONFIG
DIG
ITA L
IN PUT
+
Tx
Rx
1
Tx
Tx/
IR 1
2
C
R
*1.83"
(4.64 cm)
1.85"
(4.69 cm)
* 2.02" (5.12 cm)
(including tabs)
3.40"
(8.65 cm)
3.40"
(8.65 cm)
0.41"
(1.05 cm)
0.98"
(2.47 cm)
MLC 62 RS MK Rear
MLC 60 Series MediaLink Controllers • Reference Information 64
