Wall Box
Wall
Metal Bracket
Frame
MLC 62 MK
VOLUME
DISPLA
Y
MUTE
LAPTOP
OF
F
ON
PC
VIDE
O

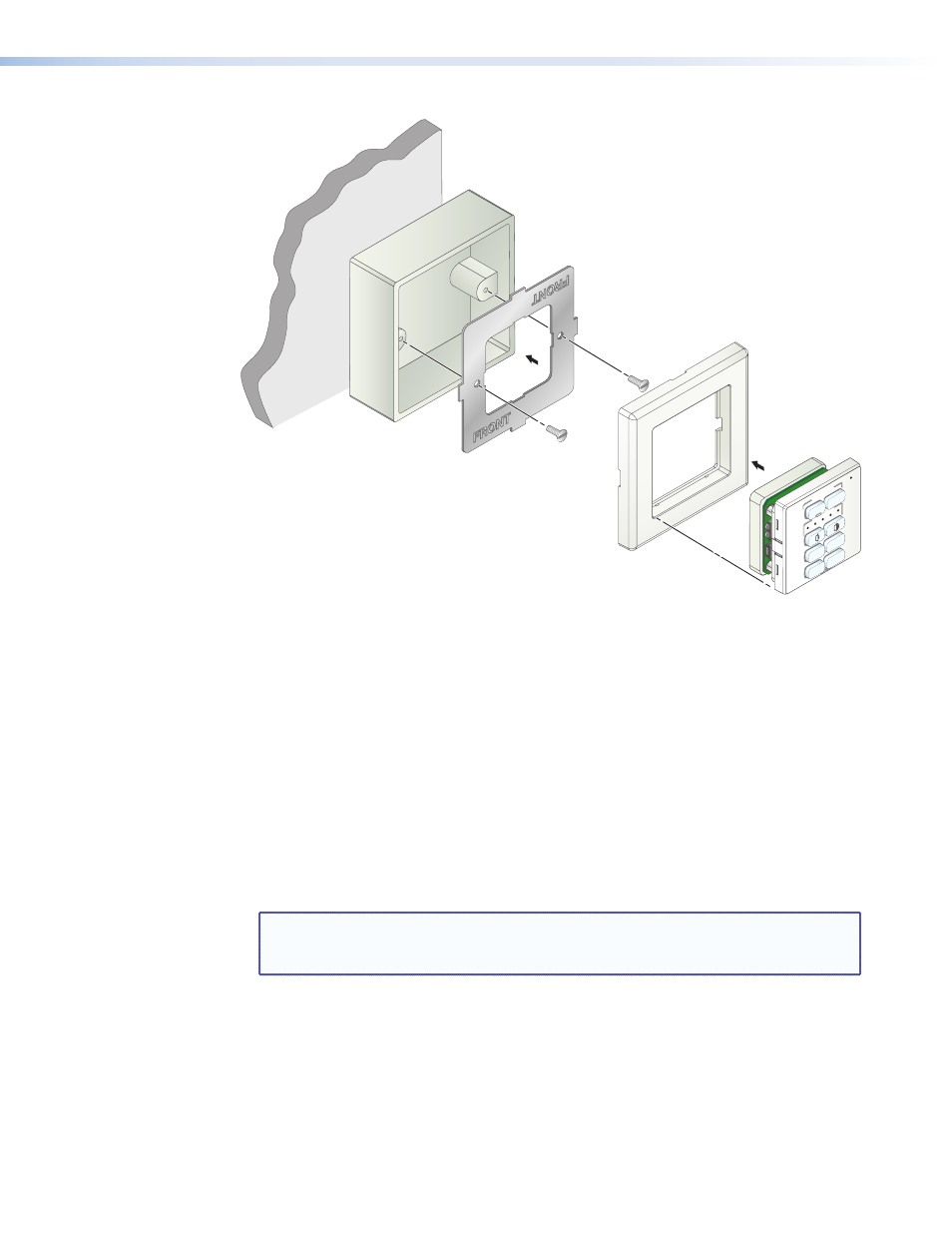

Figure 42. Mounting the MLC 62 RS MK to an External Electrical Box
Mounting the MLC EU in a Raceway Using Spacers (Optional)
If you are experiencing difficulty with the MLC EU staying in place when installed in a
cable raceway, this may be due to a gap between the metal mounting bracket and the
wall frame.
When this gap exists, the tabs on the sides of the MLC do not reach the metal mounting
bracket and the MLC does not snap completely into the wall frame.
You can remedy this situation by installing a spacer (provided with the MLC EU) between
the metal mounting bracket and the rim of the junction box. This spacer appears very
similar to the metal mounting bracket, except that it has holes instead of slots for the
mounting screws, it is engraved with the words “Optional Spacer” and “Place behind
bracket,” and has a slightly larger center opening than the mounting bracket.
NOTE: Do not attempt to use the spacer in place of the metal mounting bracket.
Because of its larger opening, the spacer will not hold the MLC EU in place in
the wall frame.
