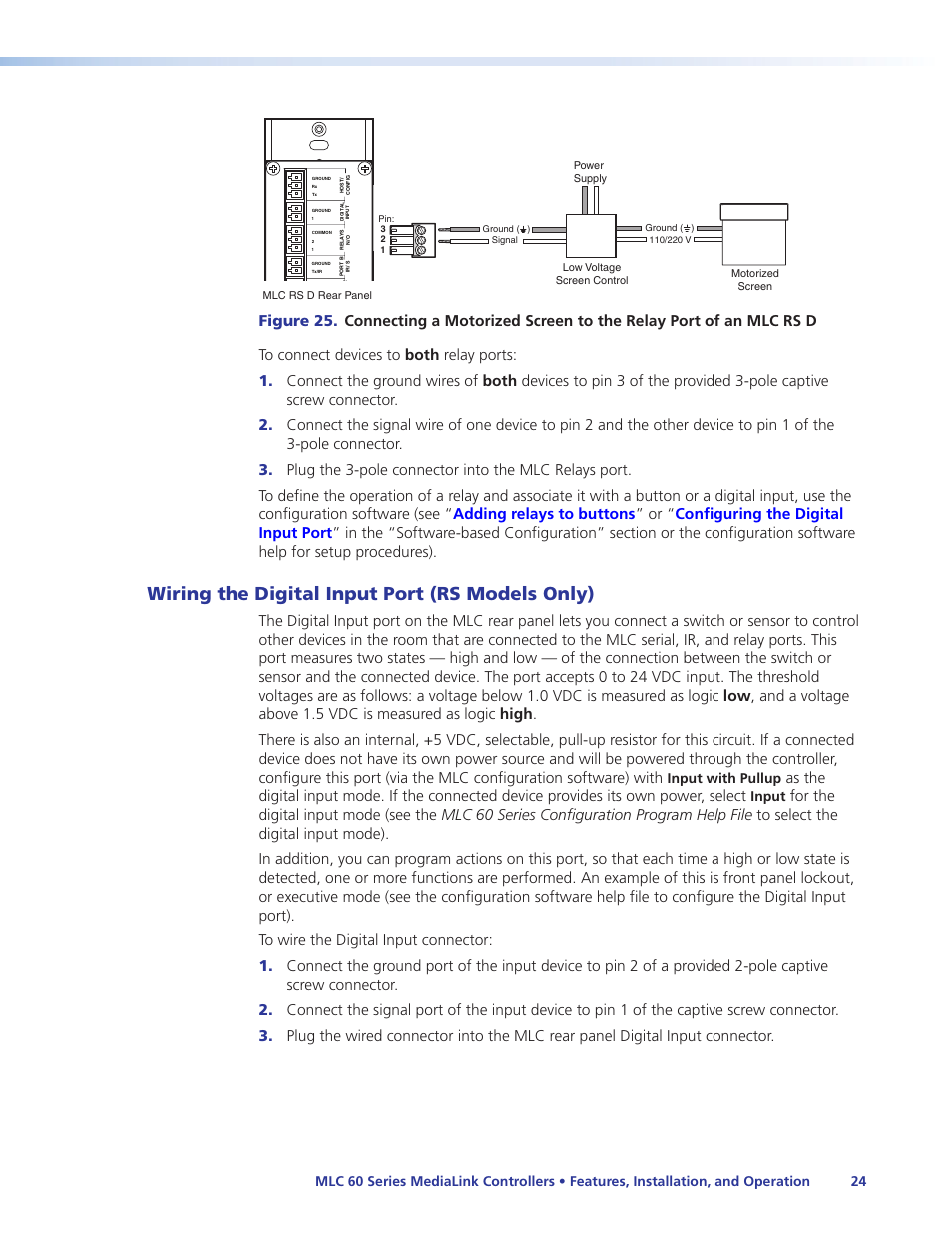

Wiring the digital input port (rs models only), Wiring the digital input port, Rs models only) – Extron Electronics MLC 60 Series User Guide User Manual
Page 30: Input with pullup, Input
