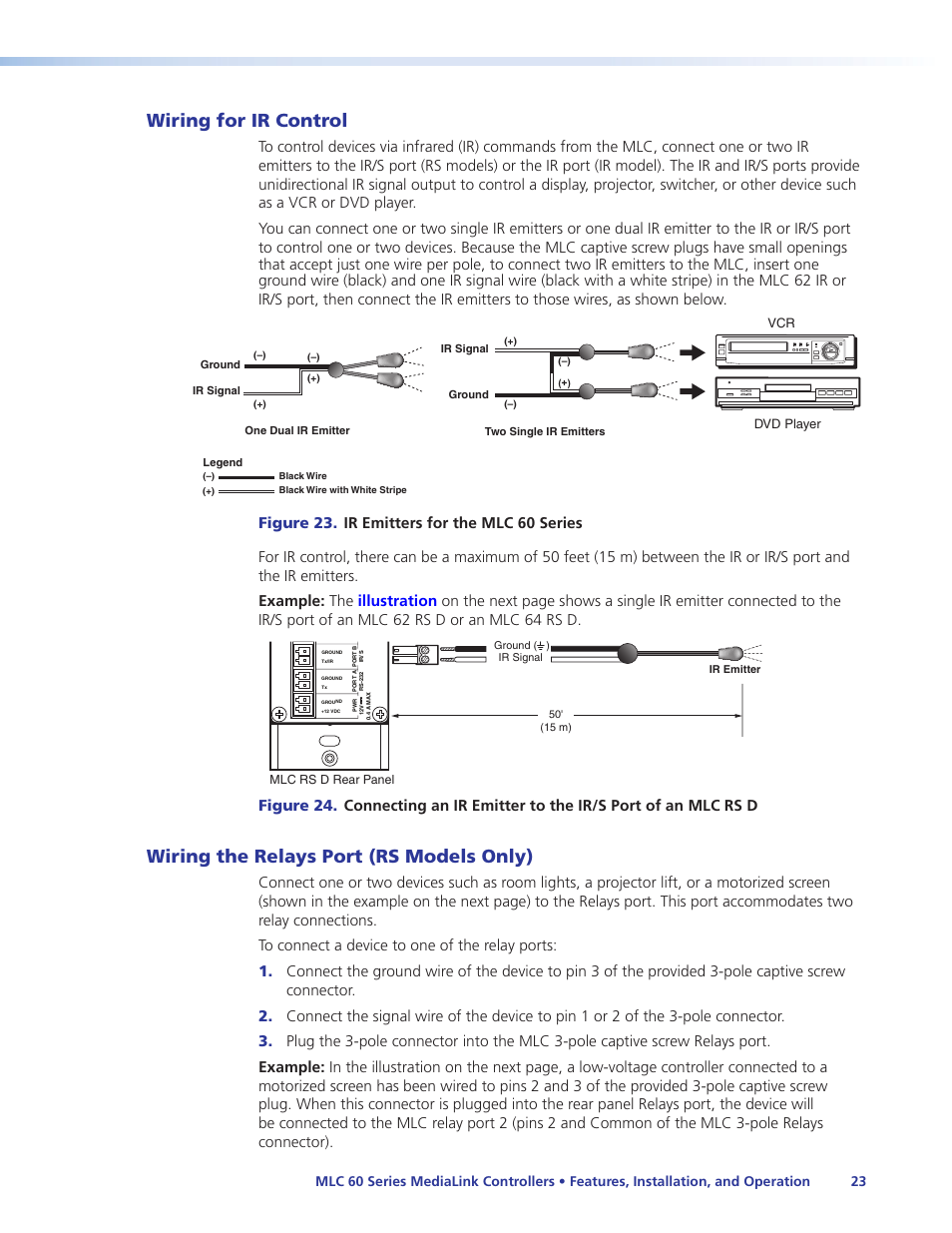

Wiring for ir control, Wiring the relays port (rs models only), Wiring the relays port – Extron Electronics MLC 60 Series User Guide User Manual
Page 29: Vcr dvd player
