The HDCP Status section of the workspace is enabled while in Live mode and displays the
following details:
z If an HDCP-compliant source is detected on the inputs, the indicator for the associated
inputs are shaded light green.
z If the active source is HDCP-compliant and the connected display is non-HDCP
compliant, the output indicator is shaded dark green. If the connected display, is not
HDCP compliant, the MLS 608 D Series device mutes the output.
z If the HDCP status is unknown, the associated indicator is not shaded.

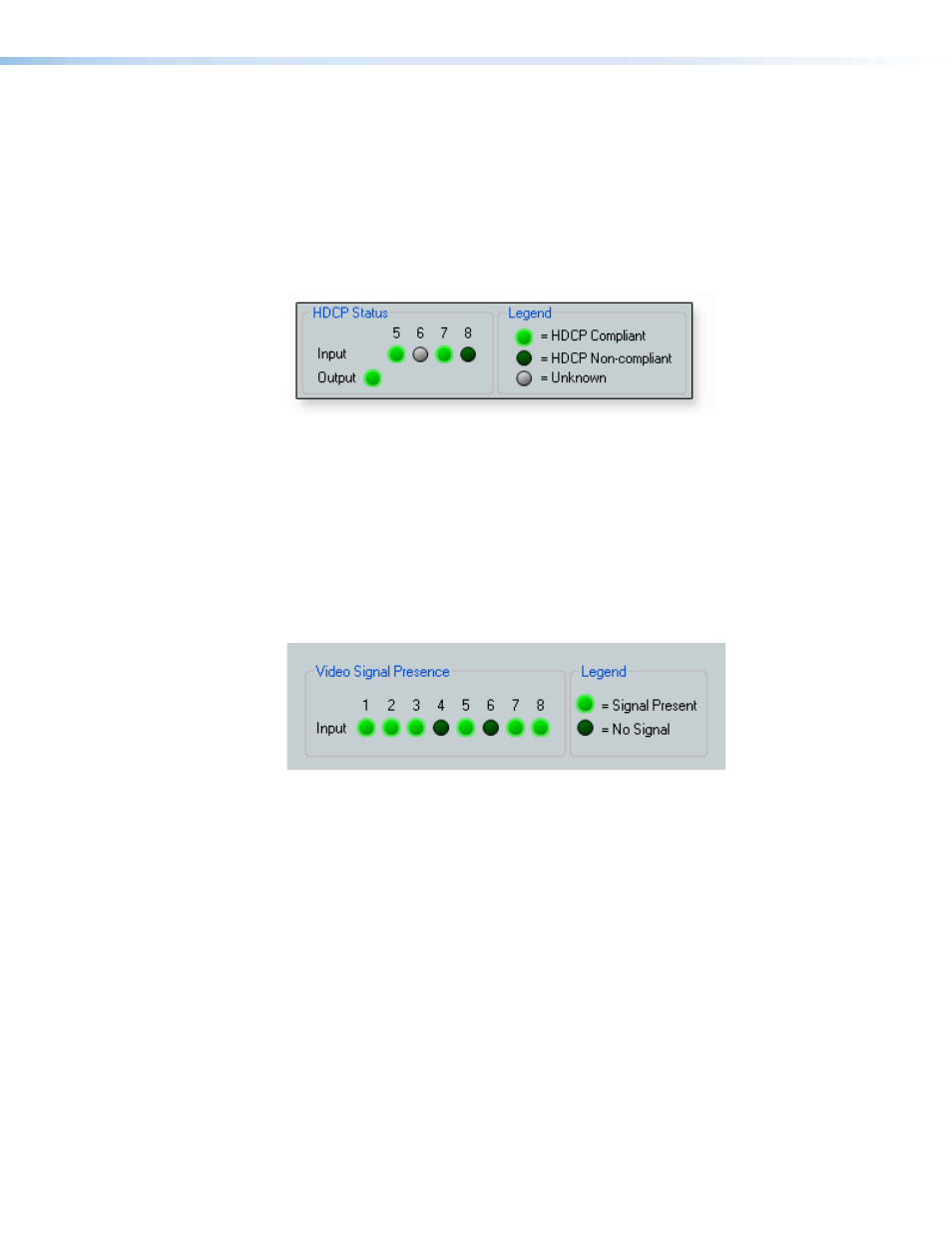

Figure 41. HDCP Status Display
Video Signal Presence
The Audio & Video I/O workspace and the Video I/O workspace show a Video Signal
Presence indicator section. This section of the workspace is enabled while in Live mode
and displays the following details:
z If a video signal is present on one of the eight inputs, the associated indicator is
shaded light green.
z If no video signal is present, the associated indicator is shaded dark green.
Figure 42. Video Signal Status Display
