Ethernet Connection, cont’d
Integration Seamless Switcher • Ethernet Connection A-2
Ethernet Link
The rear panel Ethernet connector (figure A-1) on the ISS switcher can be connected
to an Ethernet LAN or WAN. This connection makes SIS control of the switcher
possible using a computer connected to the same LAN.
Ethernet connection
The Ethernet cables can be terminated as straight-through cables or crossover
cables (figure A-1) and must be properly terminated for your application:
• Patch (straight) cable — Connection of the ISS to an Ethernet hub, router, or
switcher that also hosts a controlling computer.
• Crossover cable — Direct connection between the ISS and a controlling
computer.
Clip Down Side
1
1&2
3&6 4&5
7&8
2 3 4 5 6 7 8
1 Pins 2 3 4 5 6 7 8 RJ-45
connector
Patch (straight) cable
Twisted
Pairs
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-orange
2 Orange 2 Orange
3 White-green 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Green
7 White-brown 7 White-brown
8 Brown 8 Brown
Crossover cable
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown

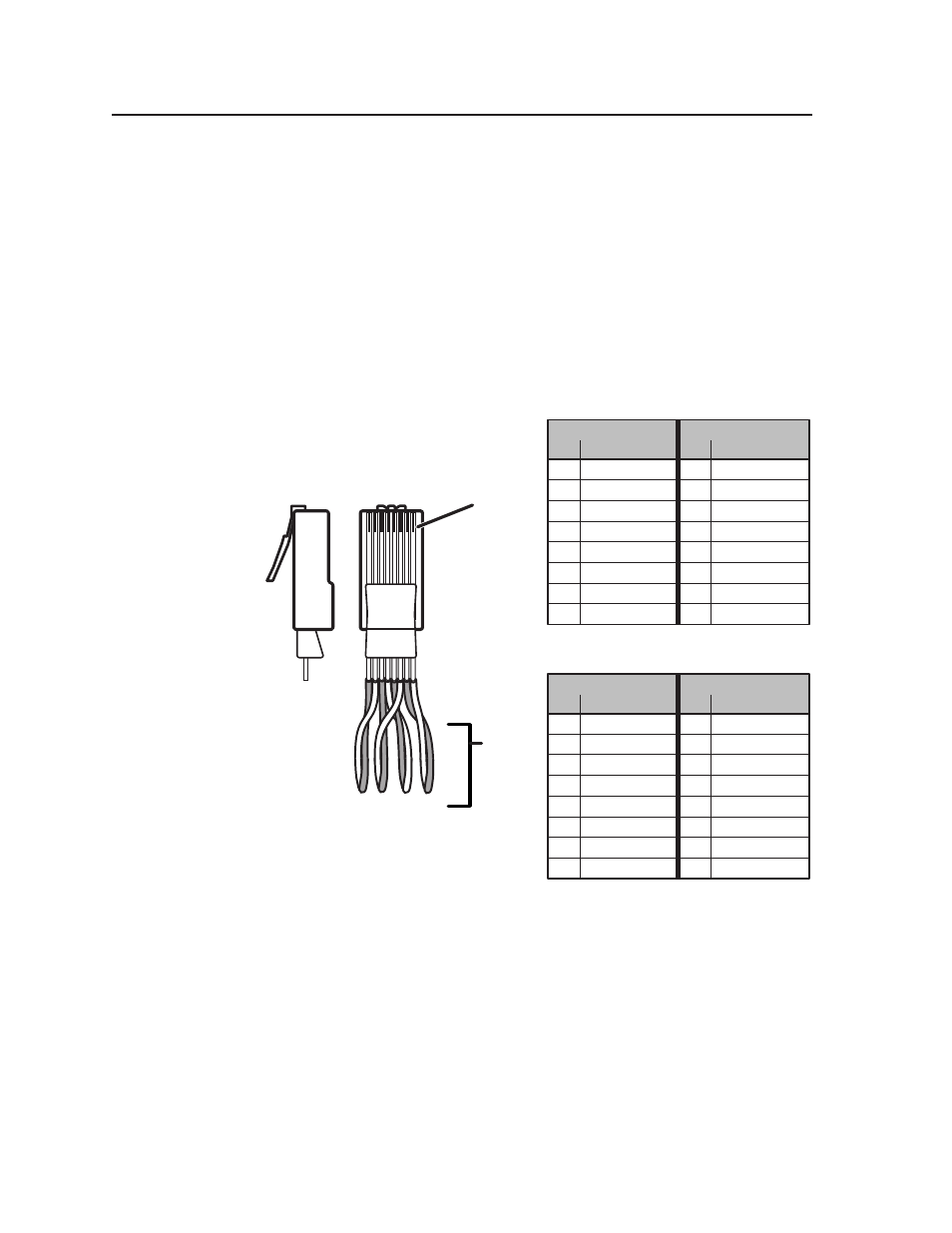

Figure A-1 — RJ-45 connector pinout table
