Operation, cont’d
Integration Seamless Switcher • Operation
3-16
User Presets menu

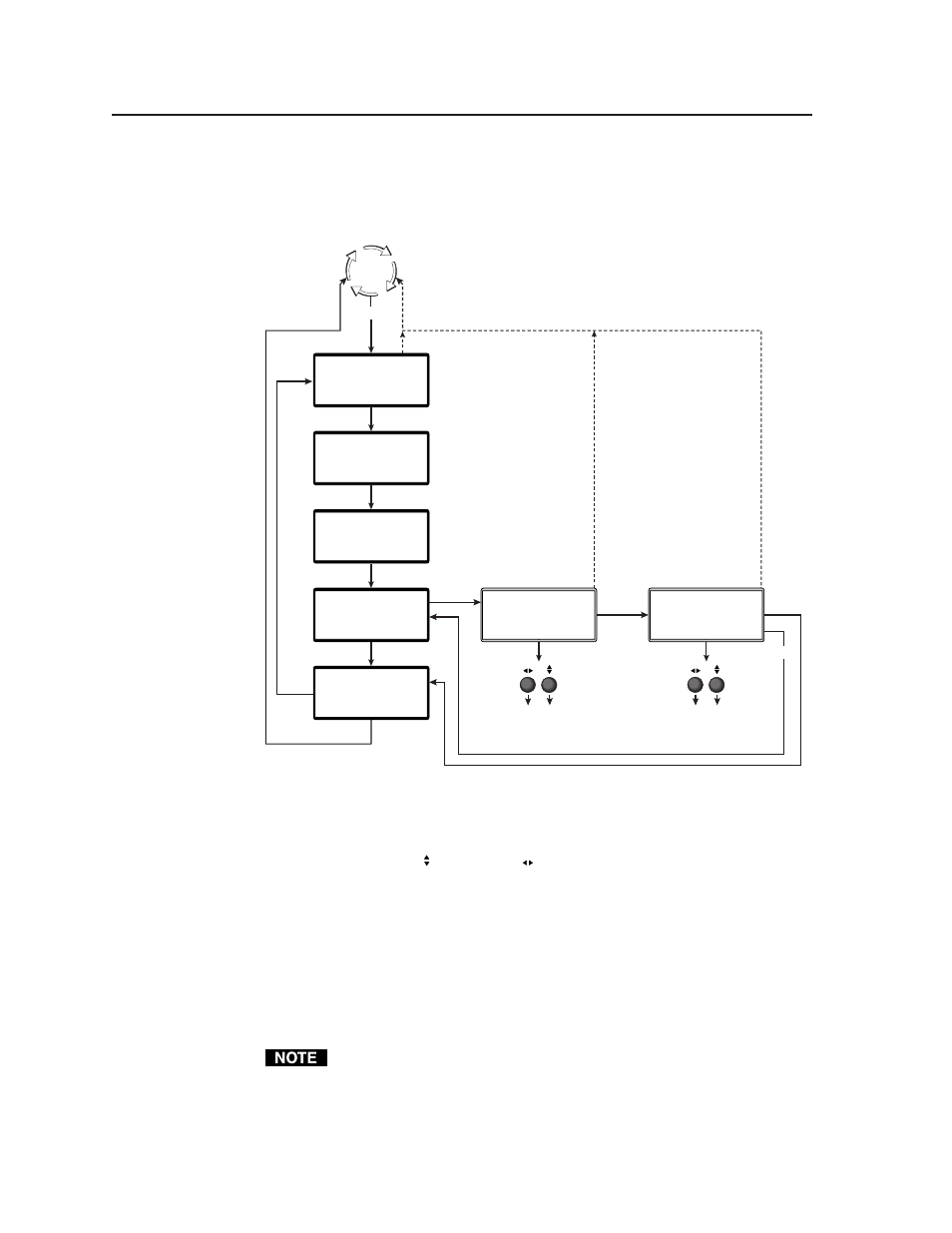

Figure 3-15 is a flowchart that shows an overview of the User Presets menu, the
Save Preview Preset and Erase Preview Preset submenus, and the available
settings.
Use either Adjust knob
to select a preset or no
preset (N/A). Press Next.
Use either Adjust knob
to select a preset or no
preset (N/A). Press Next.
Default
Cycle
Menu
Menu
Next
Next
10 sec.
10 sec.
Video & Audio
Configuration
Menu
Output
Configuration
Menu
Advanced
Configuration
Menu
User Presets
Menu
Next
Exit Menu
Press Next to Exit
Menu
Save Preview Preset
Erase Preview Preset
Next
10 sec.
Figure 3-15 — User Presets menu flowchart
Save Preview Preset submenu
Rotate either the Adjust or the Adjust knob while in the Save Preview Preset
submenu to highlight (< >) one of three memory presets for the selected input or
highlight N/A for no preset. Press the Next button to save the current settings to
the selected preset. Select N/A and press the Next button to exit without saving
the settings.
User presets, which are saved values of the current color, tint, contrast, brightness,
detail, sizing, and centering settings, are saved in nonvolatile memory; when the
ISS is powered down and later powered back up, the settings are available for
selection. Saving the settings to a preset overwrites the settings previously written
to that preset.
The color, tint, contrast, brightness, detail, sizing, and centering settings are
tailored for the selected output rate. If you change the output rate and then
recall a preset for the earlier rate, the adjustments recalled in the preset have no
effect on the video output. However, if you then change back to the earlier
output rate, the effects of the adjustments appear on the screen if they were not
overwritten for the old output rate.
