HSA 822MS • Installation HSA 822MS • Installation
Installation
Pr
eliminary
Pr
eliminary
2-3
11 Route and secure the AAP cables inside the enclosure. See
Routing the AAP Cables on page 2-16.
12 Connect the power, RJ-45, and control and status cables to
the underside of the enclosure. See Cabling the Enclosure
on page 2-18.
13 Connect power cords and turn on the devices that connect
to the surface access enclosure.
Mounting Bolts
Flat washer (2 each)
AAP Cables
IEC Power Cord
RJ-45 Connectors
Motion Control
Connector
Mounting Screws (8)
Tray
HS A 82 2M S
HSA 822MS
Enclosure
Yellow Shipping
Restraint
REMOVE
CO MPU TER
INP UT SEL ECT AU DIO
HS A 8 22M S
Mounting
Surface
Surface
Cutout

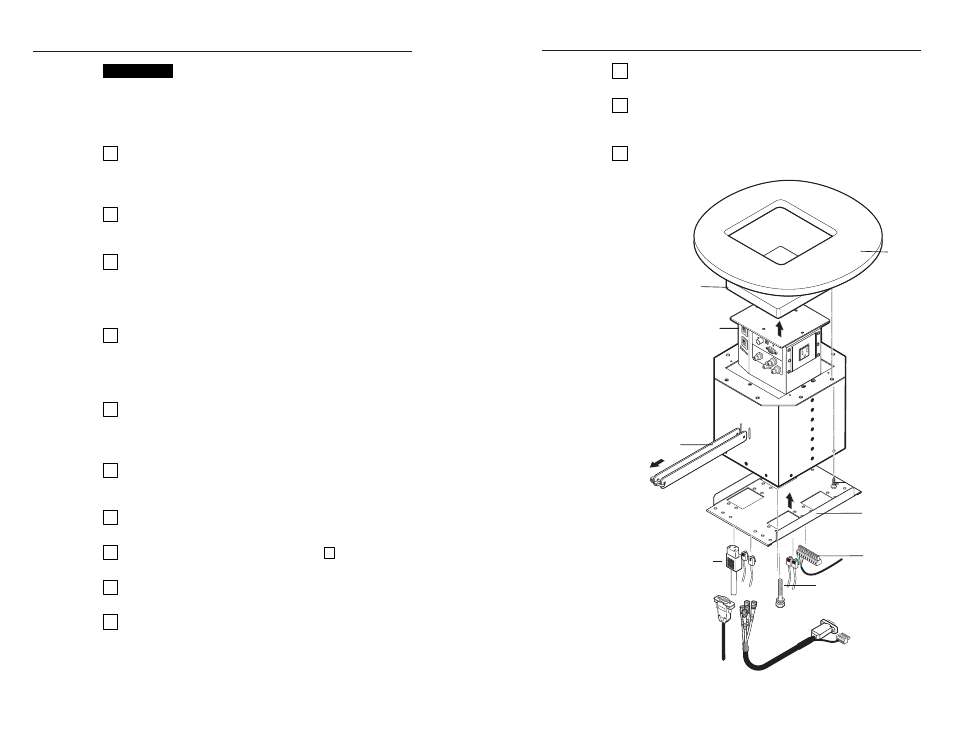

Figure 2-1 — Mounting the HSA 822MS enclosure
CAUTION Installation and service must be performed by
authorized personnel only.
Installation Overview
See figure 2-1 and the following steps to install the HSA 822MS:
1 If desired, install optional RJ-45 to RJ-11 conversion kit(s)
to replace one or more RJ-45 connectors with RJ-11
connectors. Refer to the RJ-45 to RJ-11 Conversion Kit
manual.
2 If desired, install the optional flexible conduit kit to
replace the removable AC power cord. Refer to the
Flexible Conduit Kit manual.
3 Have a reputable carpenter or other craftsman cut a hole
in the surface where the enclosure will be installed to the
exact dimensions of the HSA. Retain the removed piece of
the table surface to form the top of the HSA. See Preparing
the Table on page 2-4.
4 Run all cables necessary to support the AC, control and
status, and RJ-45 connectors and all planned AAP
connectors. Leave enough slack in the cables to connect
them to the underside of the enclosure or to the rear of the
AAPs before the AAPs are installed in the enclosure.
5 Turn off all of the equipment to be connected. Ensure that
the equipment connected to the RJ-45 connectors and the
connections for any AAPs are all turned off and
disconnected from the power source.
6 Remove the yellow shipping restraint and partially
disassemble the HSA to gain necessary internal access.
See Preparing the HSA on page 2-5.
7 Mount the HSA in the table. See Mounting the HSA on
page 2-8.
8 Secure the piece of the table removed in 3 to the top of
the HSA. See Mounting the Table Surface on page 2-9.
9 Adjust the height of the surface block. See Making Final
Adjustments on page 2-11.
10 If applicable, connect cables to the rear connectors on the
AAPs to be installed in the HSA 822MS. Install the
desired AAPs on the AAP/RJ-45 panel of the enclosure.
See Cabling and Installing the AAPs on page 2-14.
2-2
