Pr eliminary pr eliminary, Packaging for shipment, cont’d – Extron Electronics HSA 822MS User’s Manual User Manual
Page 33
HSA 822MS • Packaging for Shipment
Packaging for Shipment, Cont’d
HSA 822MS • Packaging for Shipment
Pr
eliminary
Pr
eliminary
B-8
3
.

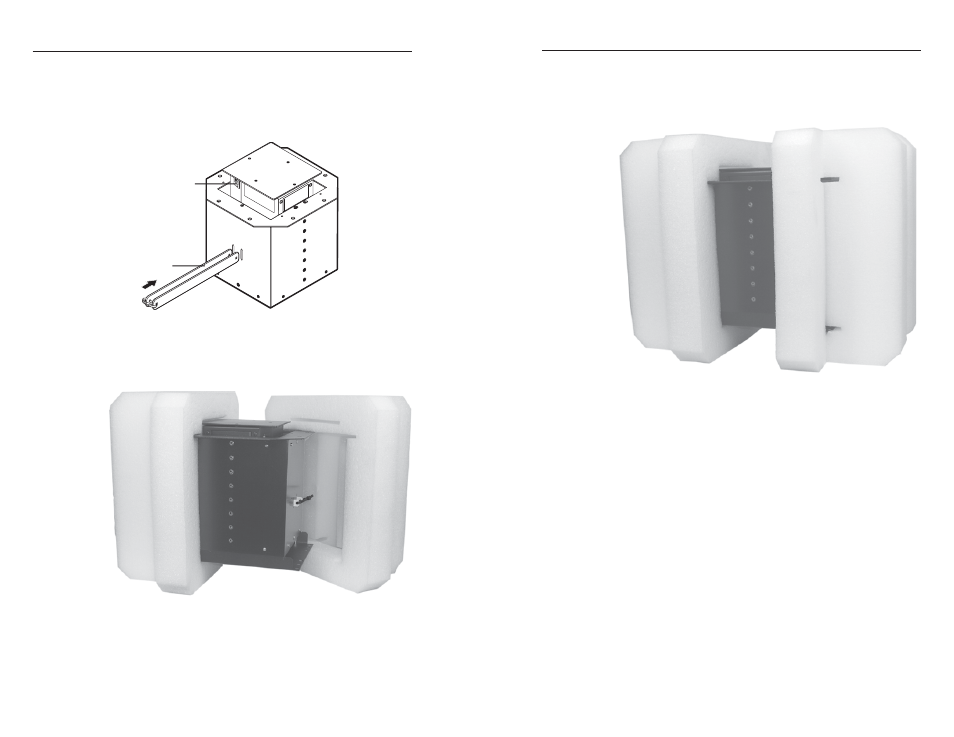

With the platform extended approximately 1" (2.5 cm),
insert the yellow shipping restraints through the slotted
holes in one side of the enclosure’s shroud (figure B-8) and
out the holes in the opposite side. Use the included tie-
wraps to secure the shipping restraints in place.
HSA 822MS
Enclosure
Yellow Shipping
Restraint
REPLACE
Figure B-8 — Installing the shipping restraints
4
.
Insert the HSA 822MS into one of the foam shells
(figure B-9). Either open end of the open top panel fits into
the recesses in the foam.
Figure B-9 — Installing the foam shell
5
.
Insert the opposite end of the HSA 822MS into the
remaining foam shell (figure B-10). Firmly push the foam
shells together as far as they will go to completely suspend
the HSA.
Figure B-10 — HSA suspended in the foam
B-9
