Reference Information
Pr
eliminary
Pr
eliminary
A-2
Specifications
Control/remote
Contact closure .............. (1) 3.5 mm female captive screw connector,
10 pole
Contact closure/level pin configuration
Pin 1 = up, pin 2 = down, pin 3 = stop,
pin 5 = enable push operation, pin 6 = status up,
pin 7 = status down, pin 9 = status power,
pins 4, 8, and 10 = ground
General
Power .............................. 100 VAC to 240 VAC, 50/60 Hz, 25 watts,
internal, autoswitchable
Temperature/humidity . Storage: -40 to +158°F (-40 to +70°C) /
10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) /
10% to 90%, noncondensing
Rack mount .................... No, but furniture mountable
Enclosure type ............... Metal
Enclosure approximate dimensions
CAUTION Allow only a reputable carpenter or craftsman to cut the hole in
the furniture or other surface. Pay special attention to the
direction the unit will face; the unit’s AAP and connector
access side is underlined. Extron is not responsible for
improperly cut mounting holes.
Top plate (outer rim) ........................... 9.54" W x 9.82" D
(24.23 cm W x 24.94 cm D)
Top plate (vertically lifting plate, not included—to be provided by customer)
6.14" W x 6.42" D
(15.49 cm W x 16.31 cm D)
Surface cutout ...................................... 6.220" ±0.0325" W (AAP access from
front and back) x 6.500" ±0.0325" D
(15.80 ±0.083 cm W x 16.51 ±0.083 cm D)
Tray (figure A-1) .................................. A = 1.09" (2.77 cm)
B = 7.30" (18.54 cm)
C = 10.98" (27.89 cm)

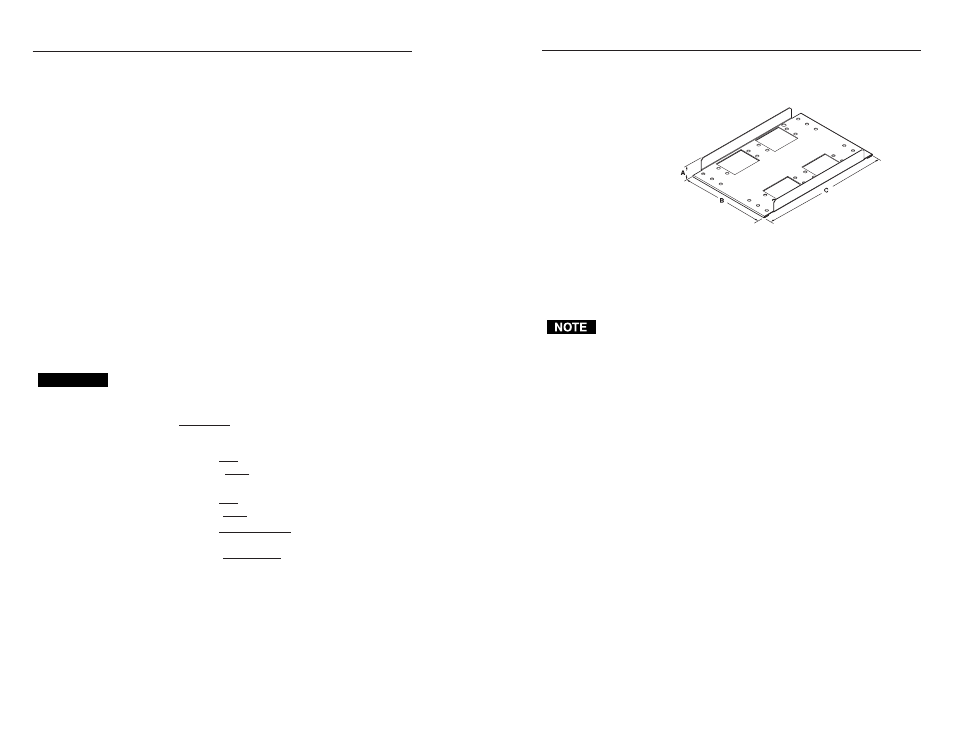

Figure A-1 — Tray dimensions
Product/shipping weight ......... 10.0 lbs (4.5 kg)/17 lbs (8 kg)
Compliances ............................... CE
MTBF (stepper motor) ............... 100,000 cycles
Warranty ..................................... 3 years parts and labor
Specifications are subject to change without notice.
