Menu System

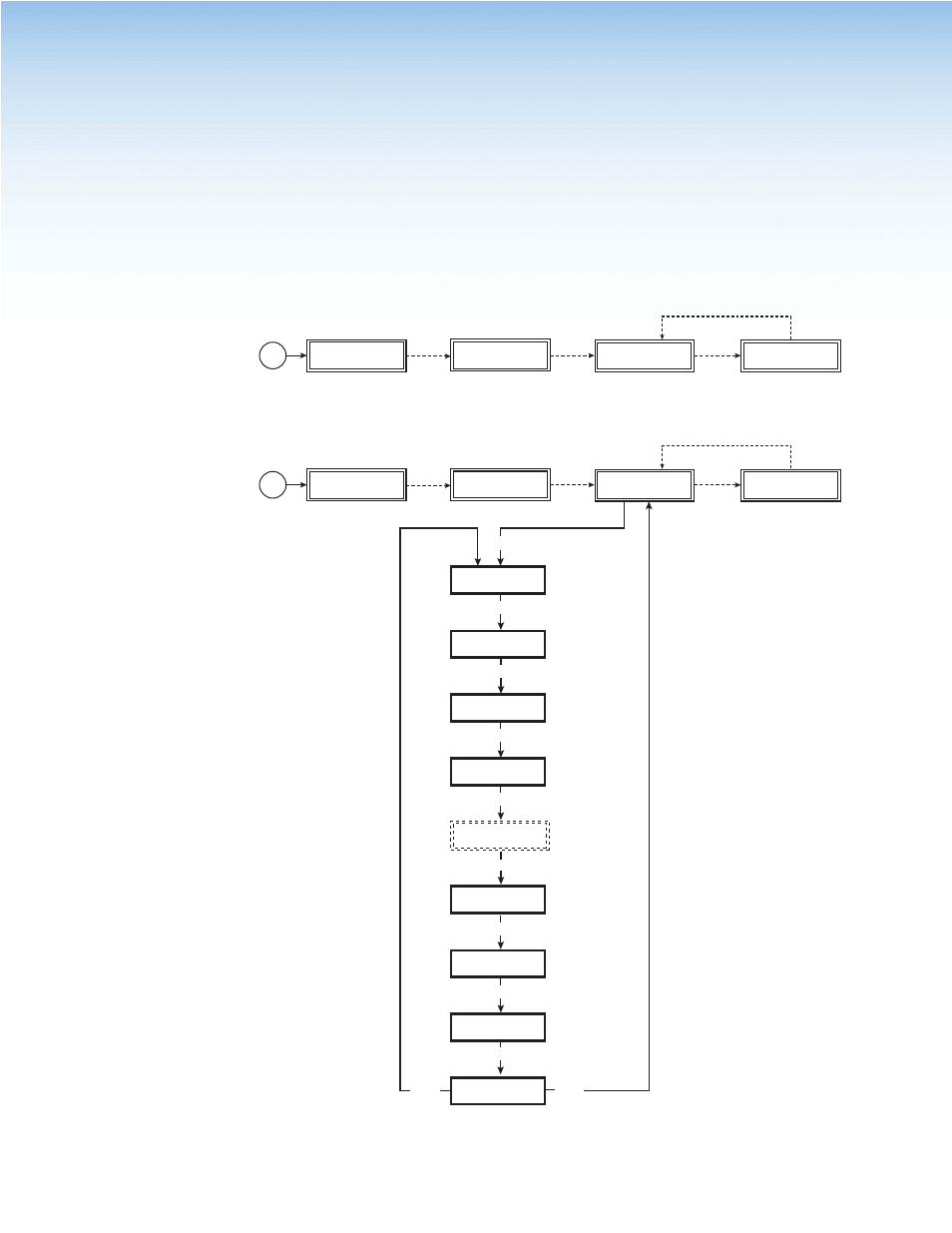

This section shows the flow charts for the DVS 304 menu system .
Default Cycle Menu
Power
on
EXTRON
DVS 304 2 sec.
INPUT 1
COMPOSITE
60-736-01
FW ver. 1.xx 2 sec. 2 sec.
OUTPUT
1024 x 768@60
Default Cycle
2 sec.
Main Menu
START AUTO
IMAGE ON IN1
MENU
MENU
INPUT
CONFIG
MENU
CONTROL
MENU
OUTPUT
CONFIG
MENU
AUDIO
CONFIG
MENU NEXT
MENU
MEMORY
PRESETS
Power
on
EXTRON
DVS 304 2 sec.
INPUT 1
COMPOSITE
60-736-01
FW ver. 1.xx 2 sec. 2 sec.
OUTPUT
1024 x 768@60
Default Cycle
2 sec.
IP
CONFIG
MENU
MENU
ADVANCED
CONFIG
MENU
TO EXIT MENU
PRESS NEXT
(Audio models only)
