2-14 Chapter 2: Hardware information

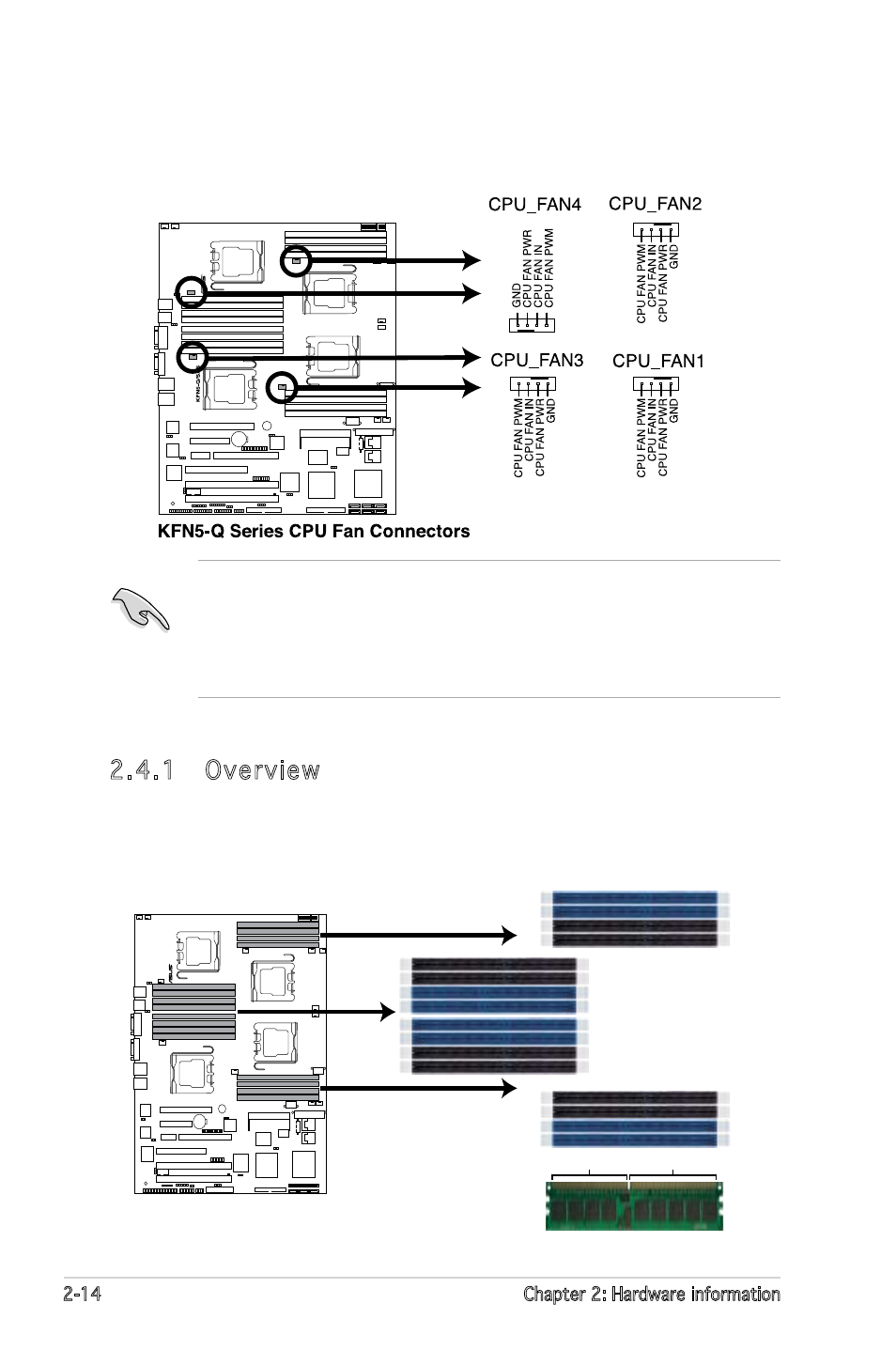

5. When the fan and heatsink assembly is in place, connect the CPU fan
cable to the appropriate connector on the motherboard, CPU_FAN1,
CPU_FAN2, CPU_FAN3, or CPU_FAN4.
• Do not forget to connect the CPU fan connector! Hardware
monitoring errors can occur if you fail to plug this connector.
• If there is only one CPU fan cable, connect it to the connector
labeled CPU_FAN1. Failure to do so may cause hardware monitoring
errors.
2.4 System memory
2.4.1 Overview
The motherboard comes with sixteen 240-pin Double Data Rate II (DDR2)
Dual Inline Memory Modules (DIMM) sockets.
The following figure illustrates the location of the sockets:
KFN5-Q/SAS
KFN5-Q Series 240-pin DDR2 DIMM Sockets
112 Pins 128 Pins
DIMM_C2
DIMM_D1
DIMM_C1
DIMM_D2
DIMM_A1
DIMM_B1
DIMM_A2
DIMM_B2
DIMM_E2
DIMM_F1
DIMM_E1
DIMM_F2
DIMM_G1
DIMM_H1
DIMM_G2
DIMM_H2
