26
GigaX3112 Series Layer 3 Managed Switch
4.5.3 LACP
The page configures the LACP group (port trunking). The switch provides
maximum 32 link aggregation groups and up to 8 ports per group. This maximum
can be achieved on stacking configuration. For standalone GX3112 or GX3112F,
the maximum group is 6 since it supplies 12 ports only.The feature supplies five
statistics for verification.
Port Selection Criterion: the algorithm to distribute packets among the
ports of the link aggregation group according to source MAC address,
destination MAC address, source and destination MAC address, source IP
address, destination IP address, or source and destination IP address.
Trunk ID: a number to identify the trunk group besides the group name
Port: these port icons are listed the same way as on the front panel. You
have to click on the icon to select the group members. The port can be
removed from the group by clicking the selected port again.

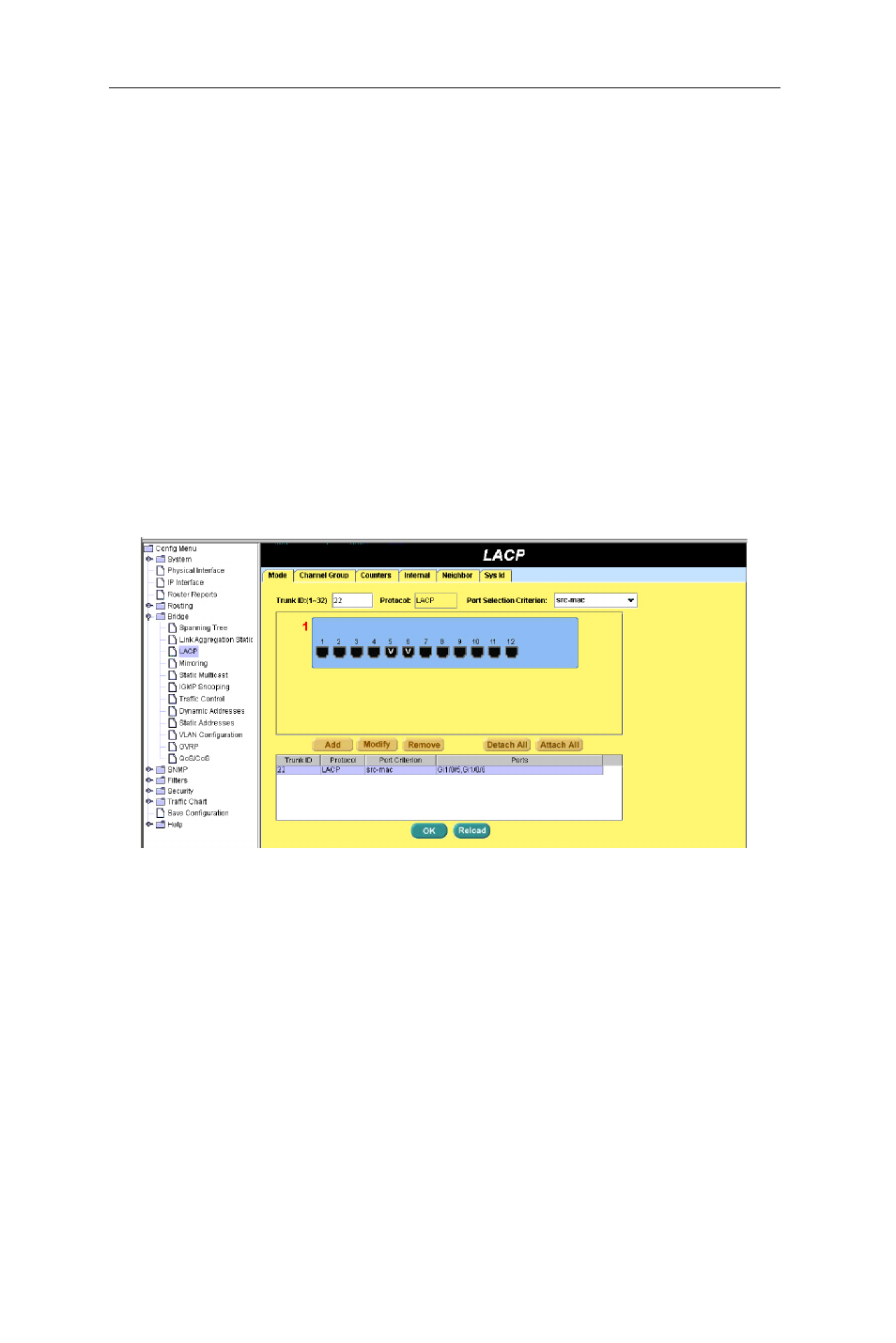

Figure 25. LACP (GigaX 3112F)
