18
GigaX3112 Series Layer 3 Managed Switch
4.3 System pages
System pages include Management, IP Setup, Reboot, and Firmware Update
function.
4.3.1 Management
The
Management page contains the following information:
Model Name: product name
MAC Address: switch MAC address
System Name: user assigned name to identify the system (editable)
System Contact (editable)
System Location (editable)
To save any changes and make it effective immediately, click
OK. Use Reload
to refresh the setting, as shown in Figure 15.

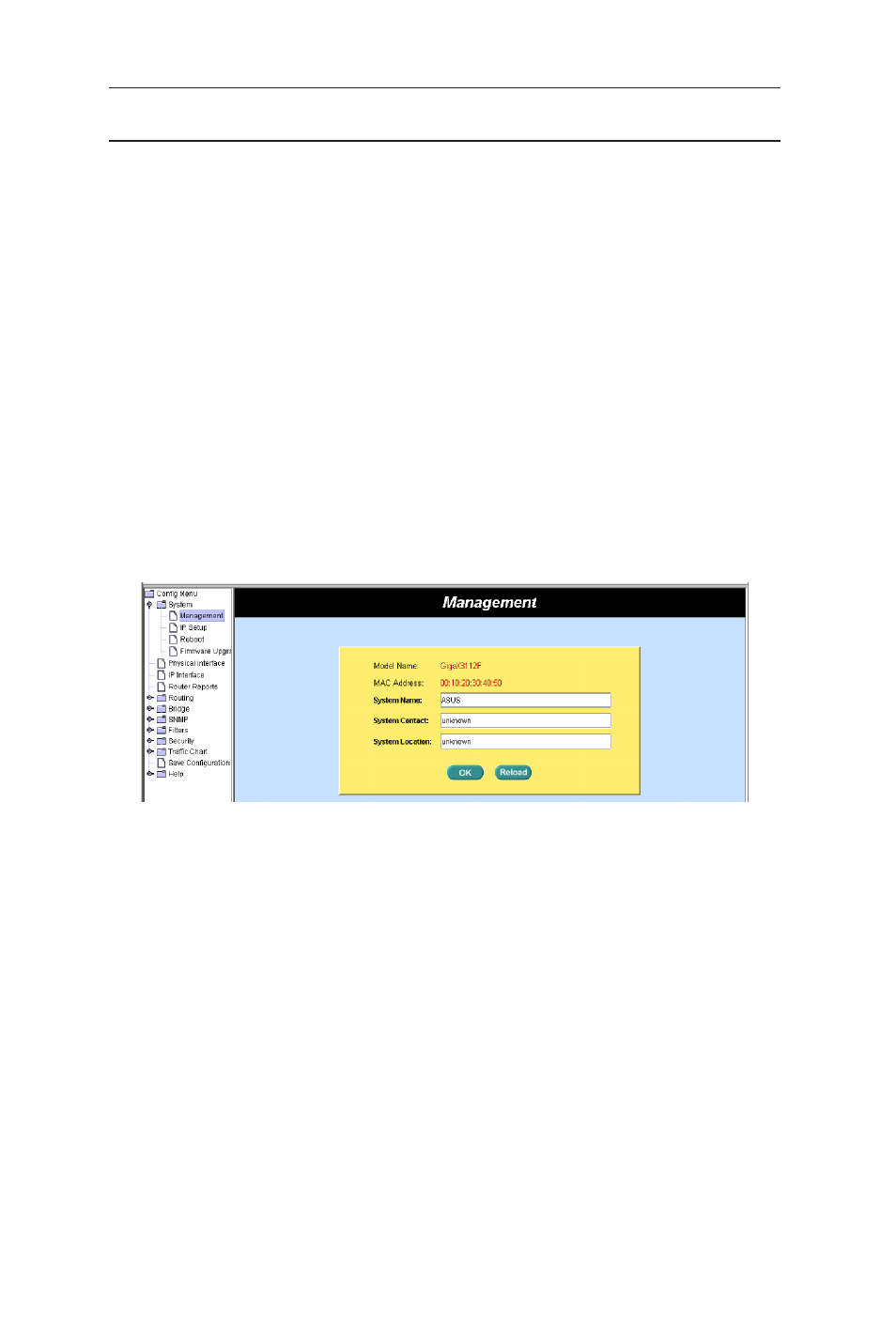

Figure 15. Management page
4.3.2 IP Setup
The IP Setup page contains the following information:
IP Address: IP address for the switch
Network Mask: Network mask for this network
Default Gateway: Default gateway for this network
To save any changes and make it effective immediately, click
OK. Use Reload
to refresh the setting, as shown in Figure 16.
