8-27 ASUS PCI-DA2200 User’s Manual
IMPORTANT:
• Mode 1 Expansion can only be performed on RAID 0, 3 and 5 logical
drives. Mode 1 Expansion cannot be performed on an NRAID or RAID
1 logical drive.
• Mode 1 Expansion (Expanding logical drives by adding more SCSI
hard disk drives) cannot be canceled once started. If a power failure
occurs, the Mode 1 Expansion will be paused and the controller will
NOT automatically continue the expansion when the power comes back
on. Resumption of the RAID expansion must be performed manually.
• If a member drive of the logical drive fails during RAID expansion, the
Mode 1 expansion will be paused. The expansion will resume
automatically after logical drive rebuild has been completed.
8.3 Viewing and Editing SCSI ID Map
8.3.1 Mapping a Logical Drive to an ID/LUN

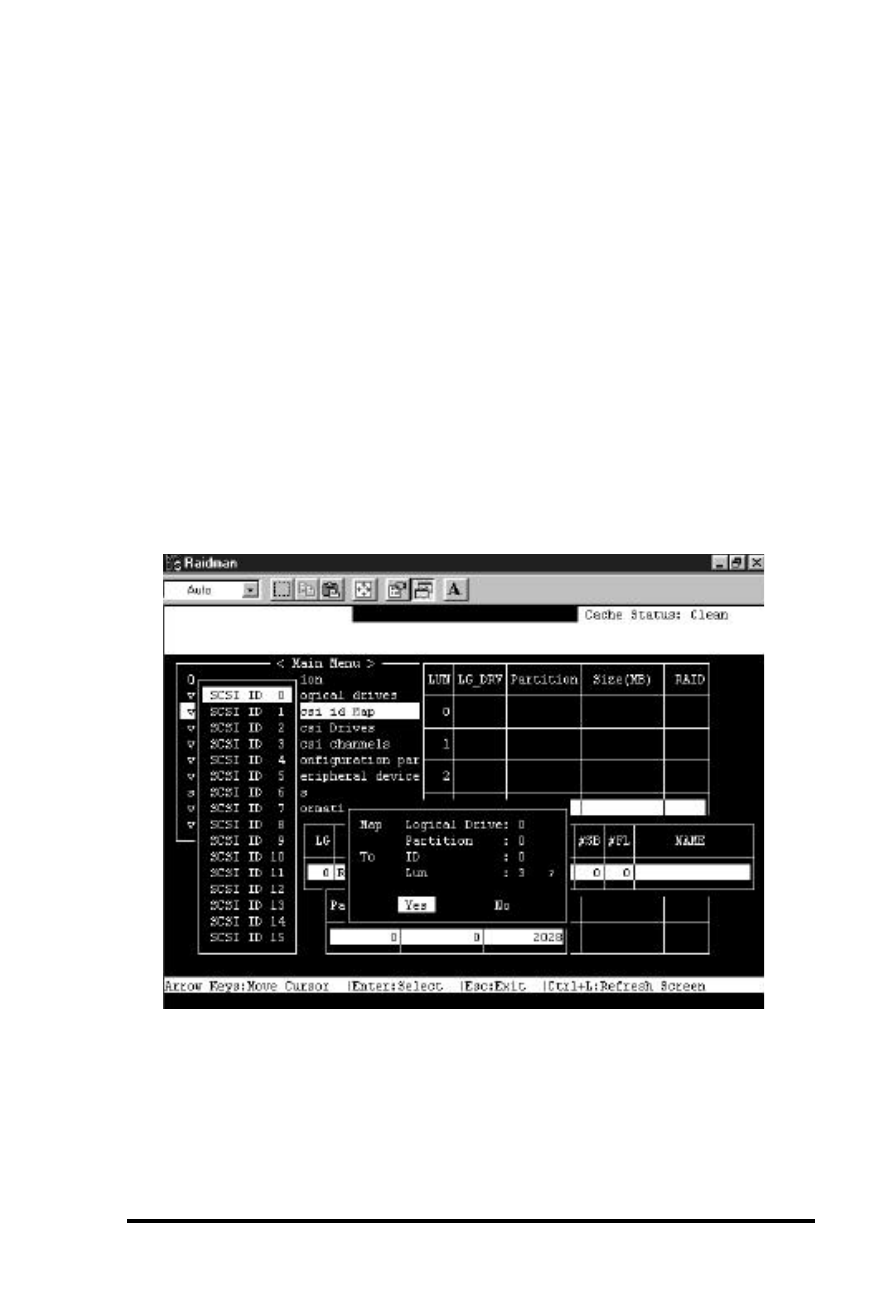

Choose “View and Edit SCSI ID Map” in the Main Menu, then press
[Enter]. When prompted to “Map Logical Drive?”, select Yes.
