ASUS GUI RAID Manager: Array Management
4-34 4.14 Displaying the Event Log
4.14 Displaying the Event Log
The GUI RAID Manager keeps a log file for documenting all
events that occurred in the disk array system ranging from
simple notifications, to warnings, to alerts.
The GUI RAID Manager saves the system log into a file named
EVENT.LOG in the GUI RAID Manager directory. You can
view the contents of this text file using any text editor program
such as Windows’ NOTEPAD application. You can also print
out the contents of the log file on a printer for reference
purposes. In the event of a system failure, you can use the print-
outs for diagnosis.
4 4 To display the event log

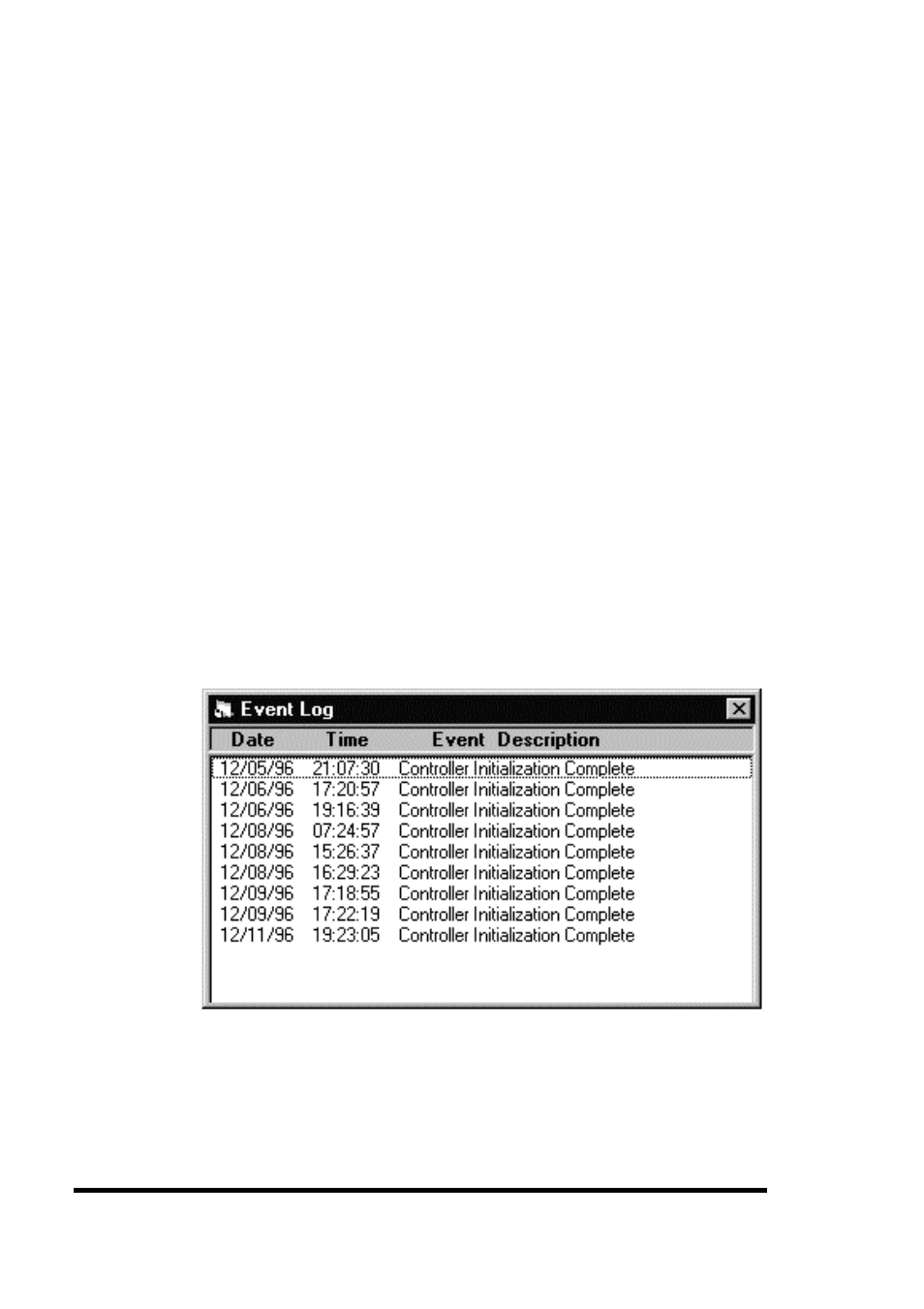

1. Click on the Event Log command button or select the Event
Log command from the Open menu. The Event Log
window will appear:
The events in the window are sorted according to the date
and time they occurred. Description for each event is also
provided to facilitate reference.
