Asus PCI-DA2200 User Manual
Page 209

ASUS GUI RAID Manager: Installation
2-24
2.4 Software Setup

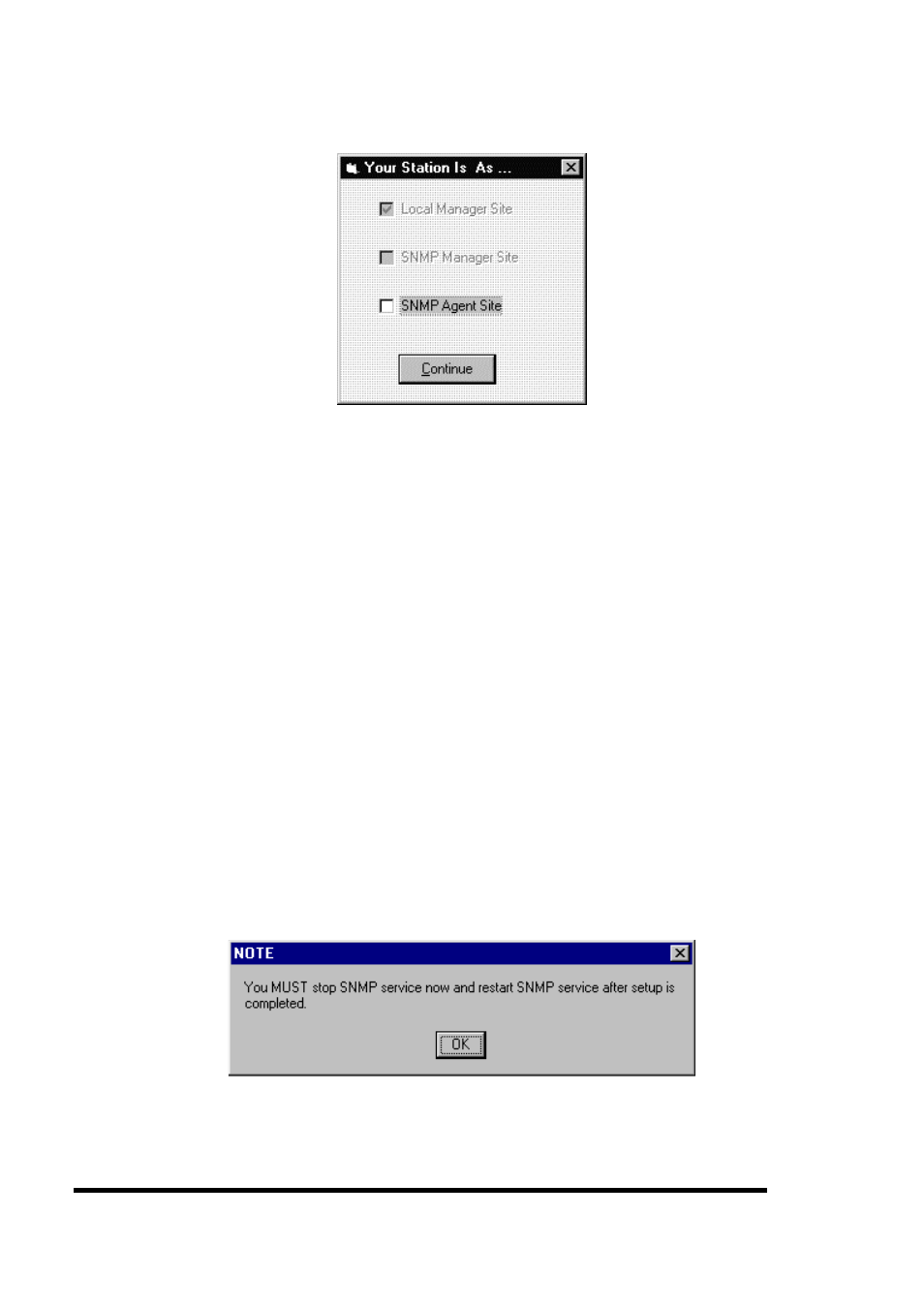

5. Select the appropriate option for the type of system on which
you are setting up the GUI RAID Manager. If you are
setting up on a host where array management will be
performed, you only need the Local Manager Site option
(selected by default); for a local host where SNMP
transactions from remote manager stations will be processed,
you need the SNMP Agent Site option; for a remote manager
station where array management will be performed over the
network, you need the SNMP Manager Site option.
To select an option, just check its corresponding check box.
You may select more than one option if you want; be
reminded though that the more options you select, the bigger
the disk space requirement will be. Click Continue to
proceed.
6. If you select the SNMP Agent Site option, the following
message will appear:
